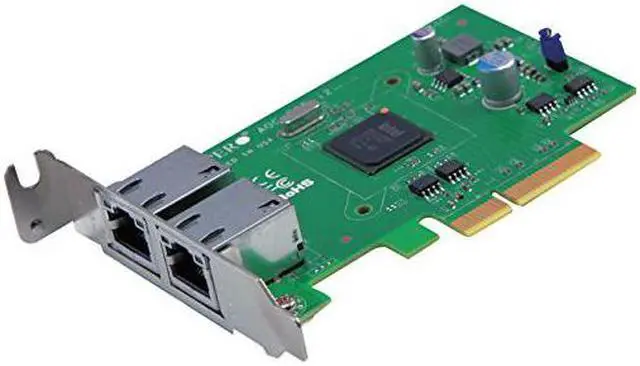

Supermicro AOC-SGP-I2 2-Port PCI-Express 2.1 x4 Gigabit Ethernet Controller Card (AOC-SGP-i2)

Specifications Mfr
Part Number: AOC-SGP-I2
Features: Low-Profile Standard Form Factor in 3.9 -inch in Length PCI Express 2.1 ( 2.5GT /s or 5GT/s) Two RJ-45 ports Intel I/O Acceleration Technology (I/O AT) supported Support of VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments Jumbo Frame Support of up to 9.5KB IEEE 802.3 az - Energy Efficient Ethernet (EEE) Low Power Consumption (5W Typical) iSCSI Remote Boot support Flexible I/O Virtualization and Quality of Service (QoS) PXE Boot Support RoHS compliant 6/6
General: Intel i350 GbE controller Compact size low-profile standard form factor PCI-E 2.1 x4 ( 2.5GT /s or 5GT/s) interface Dual RJ-45 connectors Intel PRO
Set Utility for Windows Device Manager Intel I/O Acceleration Technology (I/O AT)
Power Consumption: about 4W
Ethernet Features: IEEE 802.3 auto-negotiation for speed, duplex, and flow control IEEE 802.3 x and 802.3 z compliant flow control support Automatic cross-over detection function (MDI/MDI-X) 1Gb/s Ethernet IEEE 802.3, 802.3 u, 802.3 ab PHY specifications compliant IEEE 1588 protocol and 802.1AS implementation
Power Management and Efficiency: IEEE 802.3 az - Energy Efficient Ethernet (EEE) which reduces power consumption of the PHY by about 50% DMA Coalescing reduces platform power consumption Active State Power Management (ASPM) support LAN disable function MAC Power Management controls Low Power Link Up - Link
Speed Control Maximum Power Consumption: 4W
Virtualization Features: VM to VM Packet forwarding (Packet Loopback) Eight TX and
