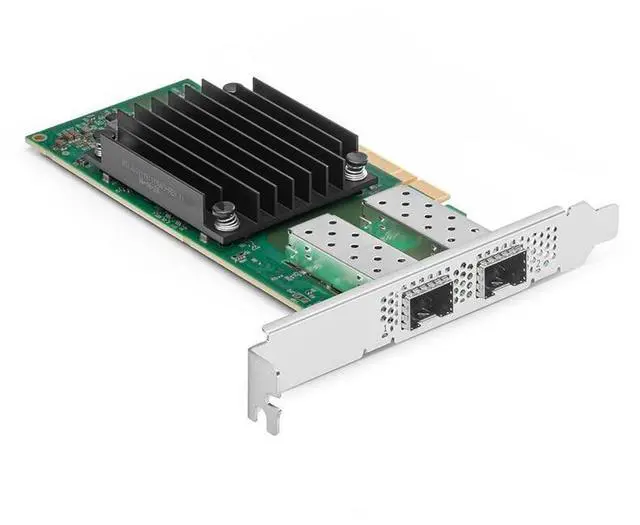

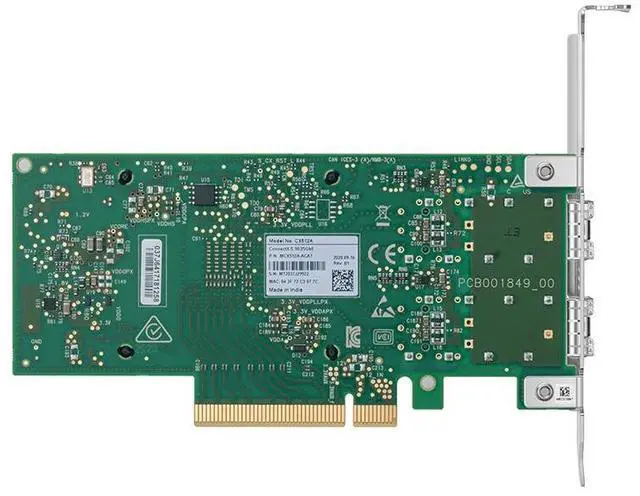

Mellanox MCX512A-ADAT ConnectX-5 Ex EN network interface card, 25GbE dual-port SFP28, PCIe Gen 3.0/4.0 x8, tall bracket
- Physical
- Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) low profile
- Connector: Dual SFP28 (copper and optical)
- Protocol Support
- Ethernet: 25GBASE-CR/CR-S, 25GBASE-SR, 25GBASE-LR, 25G Ethernet Consortium, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, SGMII, 1000BASE-X
- Data Rate: 1/10/25 Gb/s Ethernet
- PCI Express Gen3/Gen4: SERDES @ 8.0GT/s / 16.0GT/s (respectively), 8 lanes (2.0 and 1.1 compatible)
- Power and Airflow
- Voltage: 12V
- Power
- Typical Power(a) Passive Cables 12.5W
- Maximum Power
- Passive Cables 17.5W
- 1.5W Active Cables 21W
- Maximum power available through SFP28 port: 1.5W
- Airflow Airflow Specifications.
- Environmental
- Temperature
- Operational 0°C to 55°C
- Non-operational -40°C to 70°C
- Humidity
- Operational: 10% to 85% relative humidity
- Non-operational: 10% to 90% relative humidity
- Altitude (Operational): 3050m
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Mellanox MCX512A-ADAT ConnectX-5 Ex EN network interface card, 25GbE dual-port SFP28, PCIe Gen 3.0/4.0 x8, tall bracket
Physical
- Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) low profile
- Connector: Dual SFP28 (copper and optical)
Protocol Support
- Ethernet: 25GBASE-CR/CR-S, 25GBASE-SR, 25GBASE-LR, 25G Ethernet Consortium, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, SGMII, 1000BASE-X
- Data Rate: 1/10/25 Gb/s Ethernet
- PCI Express Gen3/Gen4: SERDES @ 8.0GT/s / 16.0GT/s (respectively), 8 lanes (2.0 and 1.1 compatible)
Power and Airflow
- Voltage: 12V
- Power
- Typical Power(a) Passive Cables 12.5W
- Maximum Power
- Passive Cables 17.5W
- 1.5W Active Cables 21W
- Maximum power available through SFP28 port: 1.5W
- Airflow Airflow Specifications.
- Environmental
- Temperature
- Operational 0°C to 55°C
- Non-operational -40°C to 70°C
- Humidity
- Operational: 10% to 85% relative humidity
- Non-operational: 10% to 90% relative humidity
- Altitude (Operational): 3050m
Regulatory
- Safety: CB / cTUVus / CE
- EMC: CE / FCC / VCCI / ICES / RCM
- RoHS: RoHS compliant
