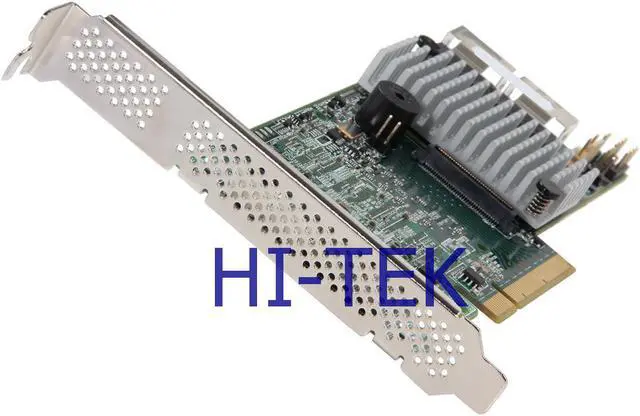

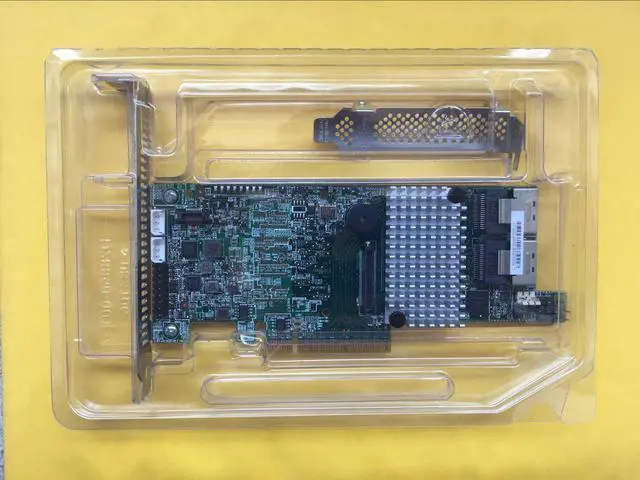

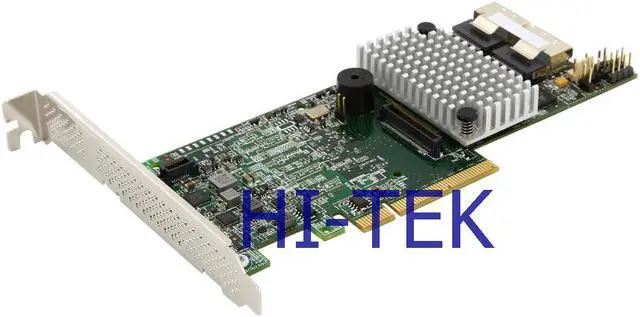

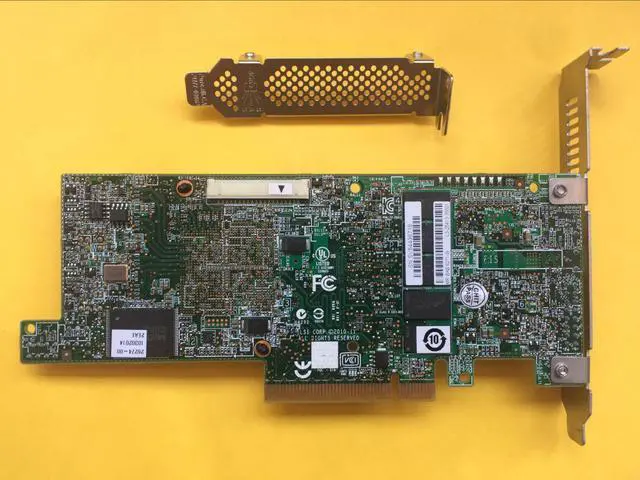

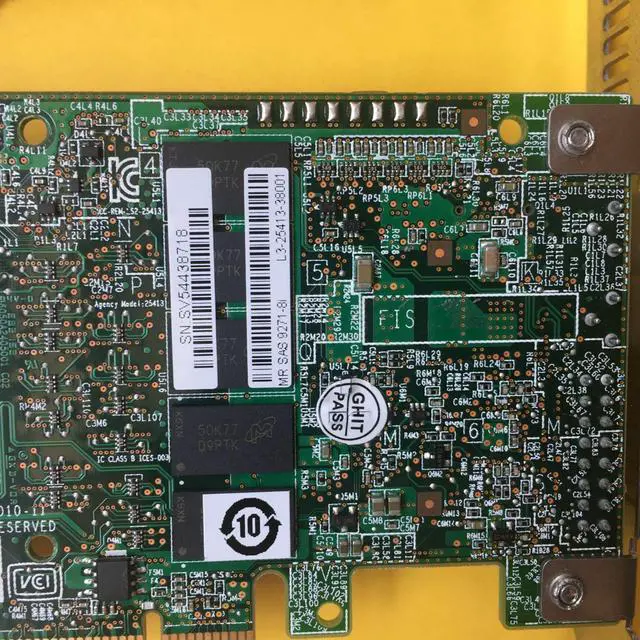

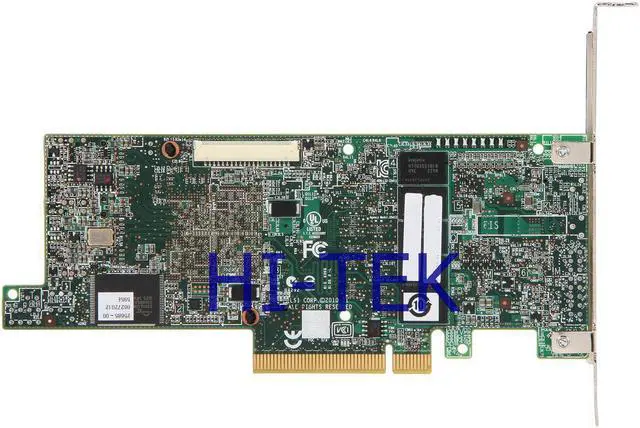

LSI Logic LSI00330 MegaRAID SAS 9271-8i 8Port 6Gb/s PCI Express 3.0 1GB DDR3 Single Controller Card

LSI00330(MGRD SAS 9271-8I
SGL) Features: Eight internal SATA+SAS ports800MHz Power
PCOptional Cache
Vault Module (LSICVM01) Optional battery backup unit (LSIiBBU09 remote mount) Second generation 6Gb/s SATA+SAS with unprecedented levels of performance
Designed for internal storage environments using up to 128 SAS, SATA and solid state drives (SSDs) Designed for IOPs performance and advanced software options help users realize full benefits of SSD deployments
Cache
Vault technology option for greener, lower total cost cache protection
Support for Cache
Cade Pro 2.0 read/write caching software to help accelerate I/O performance of existing HDD arrays using SSDs as high-performance cache
Proven interoperability with the latest server platforms based on the PCI Express 3.0 specification
Helps to meet high I/O transaction demands of database and datacenter applications
Provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments

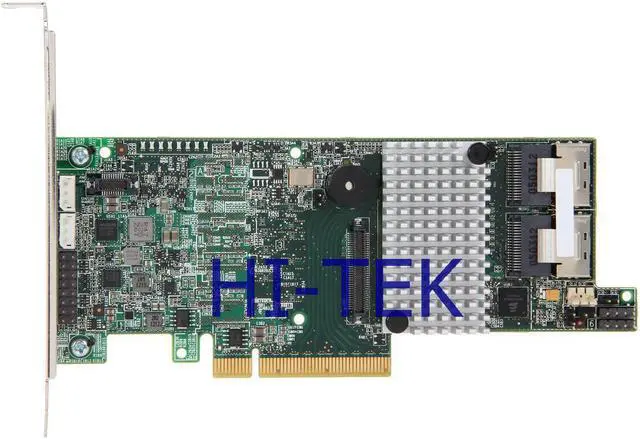

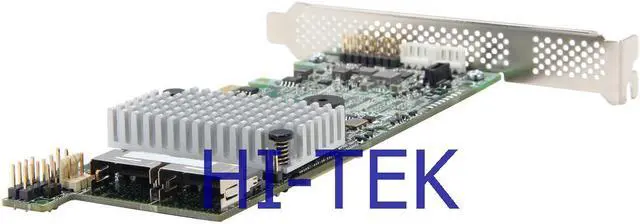

Connectors: 2x Mini-SAS SFF8087 internal connectors (side mount)
Device Support: Up to 128 SAS and/or SATA devices
Host Bus Type: PCI-Express 3.0 x8 compliant
Data Transfer Rates: Up to 6Gb/s per portI/O
Processor/SAS Controller: LSISAS2208 Dual-Core RAID on Chip (ROC)
Cache Memory: 1GB 1333MHz DDR3 SDRAM
Cache Protection: Mega
RAID Cache
Vault flash cache protection (optional – LSICVM01 / LSI00297)Mega
RAID LSIiBBU09 (optional – LSIiBBU09 / LSI00279)RAID Data
Protection Features: RAID levels 0, 1, 5 and 6RAID spans 10, 50 and 60Online Capacity Expansion (OCE) Online RAID Level Migration (RLM) Auto resume after loss of system power during arrays array rebuild or reconstruction (RLM) Single controller Multipathing (failover) Load Balancing
Configurable stripe size up to 1MBFast initialization for quick array setup
Check Consistency for background data integrity
SSD Support with SSD Guard
Patrol read for media scanning and repairing64 logical drive support
Up to 64TB LUN support
DDF compliant Configuration on Disk (COD) S. M. A. R. T support
Global and dedicated Hot Spare with Revertible Hot Spare support
Automatic rebuild
Enclosure affinity
Emergency SATA hot spare for SAS arrays
Enclosure management
SES (inband) SGPIO (sideband)
Operating Voltage: + 3.3V, +12VMTBF
(Calculated): 1, 031, 514 hours
RAID Management (Mega
RAID Management Suite): Mega
RAID Storage Manager; Mega
CLI (command-line interface); Web
BIOSOS Support: Microsoft Windows Vista/ 2008/ Server 2003/ 2000/ XP, Linux, Solaris (x86), Netware, Free
BSD, VMware and more
Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C 22.2; VCCI; RRL for MIC; BSMI; C-tick
Dimensions: MD2 - Low Profile ( 6.600 x 2.536 inch) Model Brand LSI Model LSI92718IS
