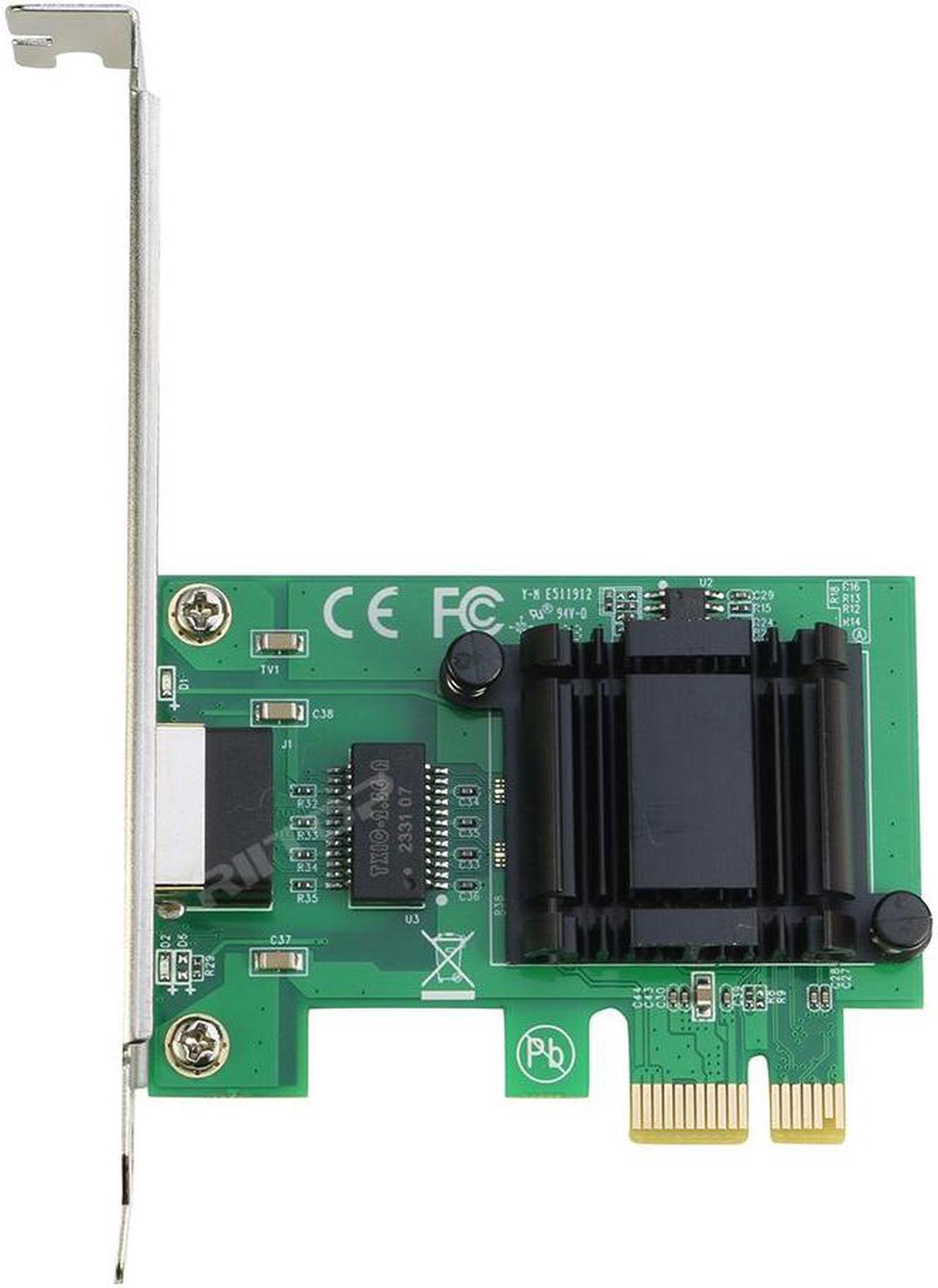

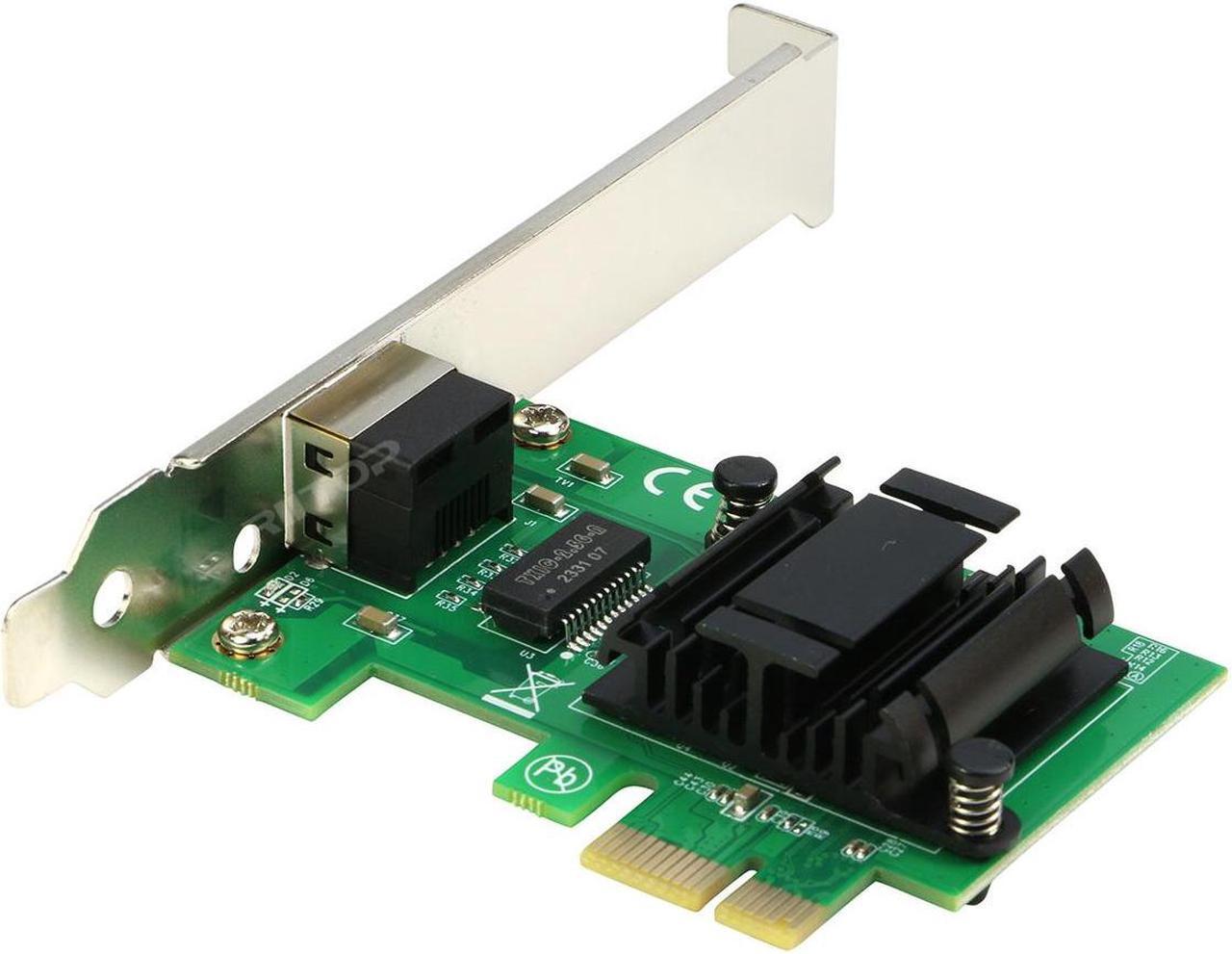

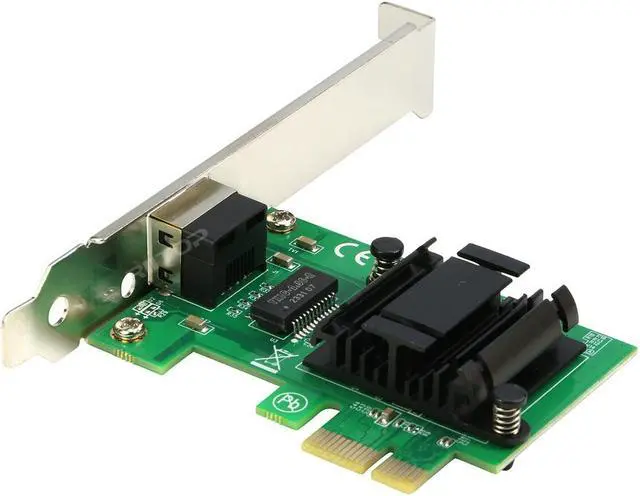

RIITOP 2.5GB PCIe Network Card PCIe to 2.5 Gigabit Ethernet Network Adapter, Supports Windows 11/10/8.1/8/7, Win Server 2022/2019/2016, Linux
- 2.5 Gbps PCIe Network Card: With the 2.5G Base-T Technology, delivers high-speeds of up to 2.5 Gbps, which is 2.5x faster than typical Gigabit adapters, smooth data transmissions for both internet access and local data transmissions.
- Versatile Compatibility The RIITOP 2.5G Ethernet Network Adapter is backwards compatible with multiple data rates(2.5 Gbps, 1 Gbps, 100 Mbps Base-T connectivity). The 2.5G Ethernet port automatically negotiates between higher and lower speed connection.

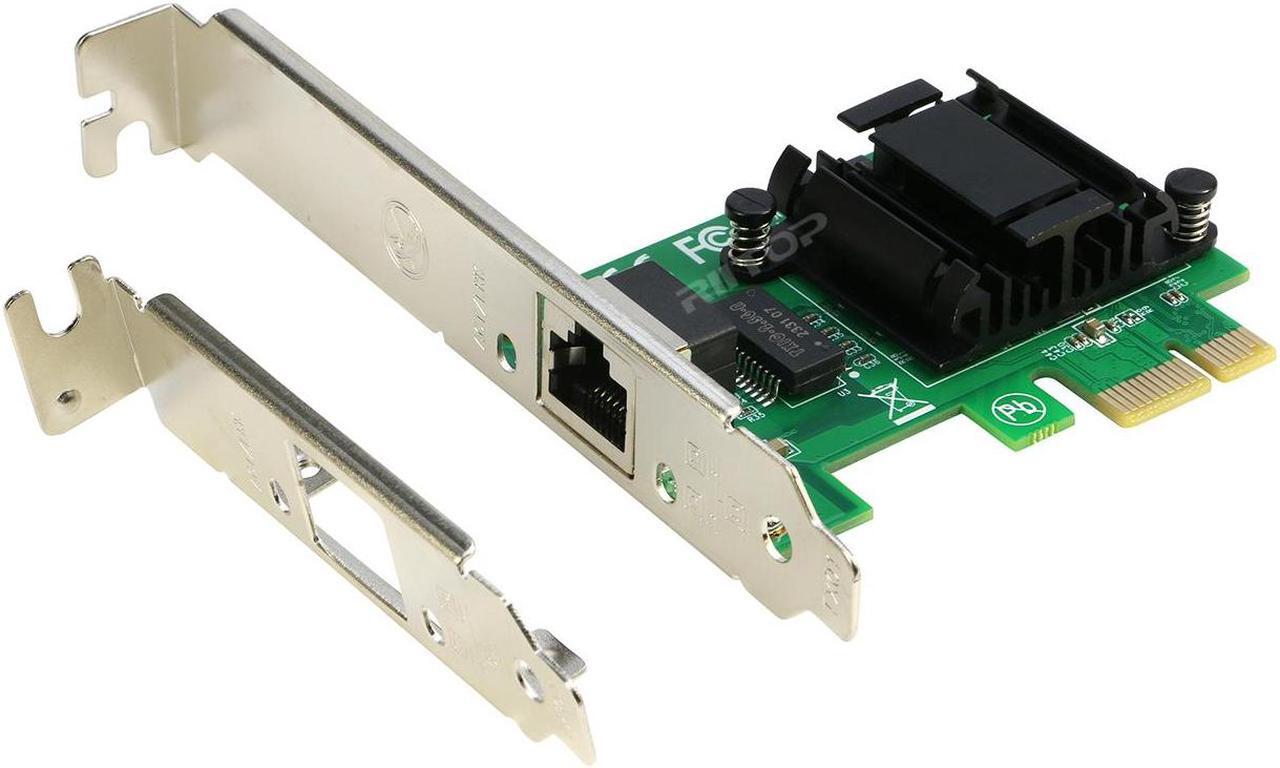

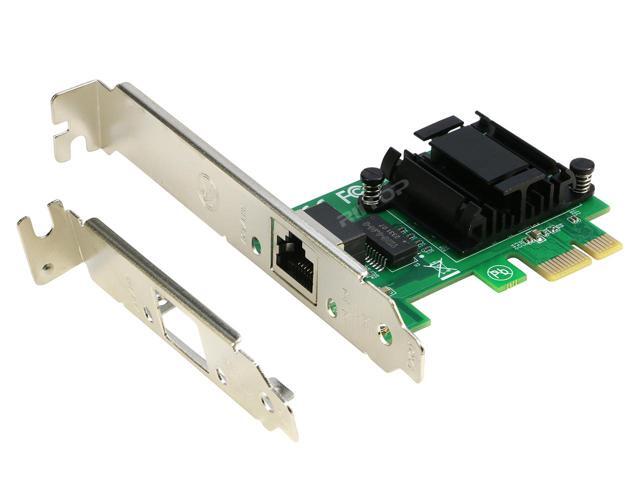

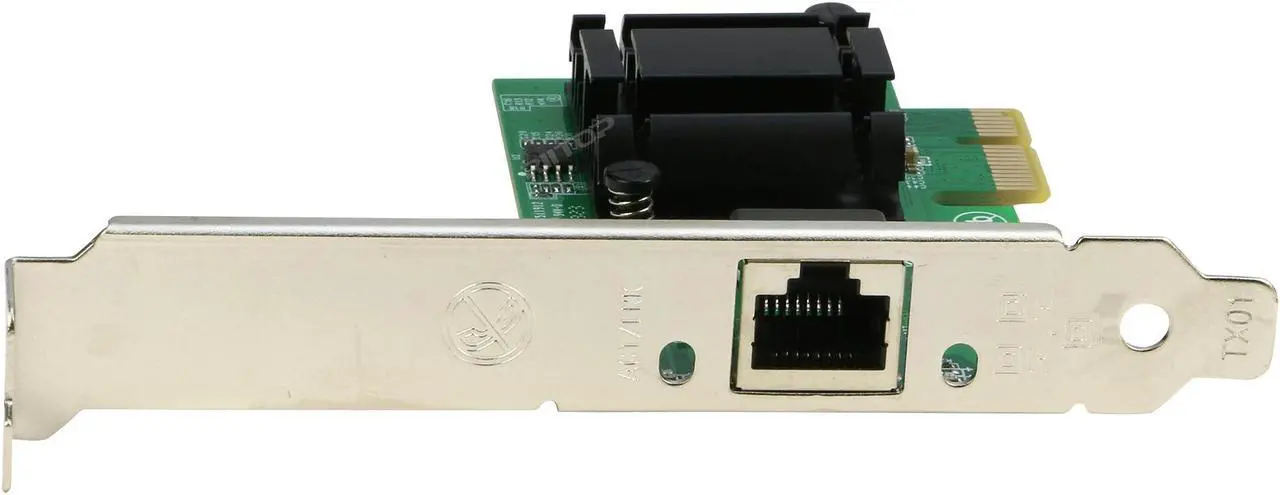

- Low-Profile and Full-Height Brackets: In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases.
- Comprehensive System Support - The PCIe ethernet card is fully compatible with Windows 10/11, Windows Server, WMware, and Linux.
+
+
Overview
Specs
Reviews
Fetures:
RIITOP PCIe 2.5G Network card adopts Intel a high performance network controller i225-V. This controller with Base-T copper networking interface, provides compact, single-port integrated multi-gigabit (up to2.5G) MDI (Copper) standard IEEE802.3 Ethernet interface for 2500BASE-T,1000BASE-T,100BASE-TX,10BASE-TE connections, and it can also support Intel vPro technology on specific Intel platforms . It is designed for use on any mobile, desktop, workstation, value-server, or industrial designs that have critical space constraints.
it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.
Specification:
Main Controller: Intel(R) I225-V.
Bus Type: PCI Express X1, 2.5GT/s.
Interface: RJ45.
Transmission rate: 2.5G/1000/100Mbps.
Management functions IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering.
Compliant with PCI Express specification Revision 3.1(5GT/s).
MDI(Copper) standard IEEE802.3 Ethernet interface up to 2.5Gb/s.
Complies with single port 1GbE RJ45 port (copper).
Complies with the MDI standard IEEE802.3 Ethernet interface for2500BASE-T,1000BASE-T,100BASE-TX,10BASE-TE application( IEEE802.3bz, IEEE802.3ab ,IEEE802.3u and IEEE802.3 ).
IEEE802.3 Auto-negotiator.
IEEE802.3x and IEEE802.3z compliant flow control support with software-controllable RX thresholds and TX pause frames.
Automatic cross-over detection function(MDI/MDI-X).
IEEE 1588 Protocol and 802.1AS implementation.
Supporting Time Sensitive Networking(TSN) Capabilities.
Support IEEE802.3az-Energy Efficient Ethernet(EEE).
Full Wake-On-Lan support.
TCP/UDP,IPv4 checksum offloads(Rx/Tx).
Transmit Segmentation offloading(TSO)(IPv4,IPv6).
Support for packets up to 9.5KB Jumbo Frames.
System Requirements:
Microsoft Windows10 Version 1809 and later 32 or 64bit, Windows 11.
Linux4.20/5.x or later ,CentOS/RHEL8.1 or later,Ubuntu14.x/15.x/16.x or later.
VMware ESX/ESXi 4.x/5.x/6.x or later.
Hardware Requirements:
Available PCI Express x1/x4/x8/x16 slot.
Package Including:
1x PCIe x1 to 2.5G Network Adapter Card.
RIITOP PCIe 2.5G Network card adopts Intel a high performance network controller i225-V. This controller with Base-T copper networking interface, provides compact, single-port integrated multi-gigabit (up to2.5G) MDI (Copper) standard IEEE802.3 Ethernet interface for 2500BASE-T,1000BASE-T,100BASE-TX,10BASE-TE connections, and it can also support Intel vPro technology on specific Intel platforms . It is designed for use on any mobile, desktop, workstation, value-server, or industrial designs that have critical space constraints.
it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.
Specification:
Main Controller: Intel(R) I225-V.
Bus Type: PCI Express X1, 2.5GT/s.
Interface: RJ45.
Transmission rate: 2.5G/1000/100Mbps.
Management functions IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering.
Compliant with PCI Express specification Revision 3.1(5GT/s).
MDI(Copper) standard IEEE802.3 Ethernet interface up to 2.5Gb/s.
Complies with single port 1GbE RJ45 port (copper).
Complies with the MDI standard IEEE802.3 Ethernet interface for2500BASE-T,1000BASE-T,100BASE-TX,10BASE-TE application( IEEE802.3bz, IEEE802.3ab ,IEEE802.3u and IEEE802.3 ).
IEEE802.3 Auto-negotiator.
IEEE802.3x and IEEE802.3z compliant flow control support with software-controllable RX thresholds and TX pause frames.
Automatic cross-over detection function(MDI/MDI-X).
IEEE 1588 Protocol and 802.1AS implementation.
Supporting Time Sensitive Networking(TSN) Capabilities.
Support IEEE802.3az-Energy Efficient Ethernet(EEE).
Full Wake-On-Lan support.
TCP/UDP,IPv4 checksum offloads(Rx/Tx).
Transmit Segmentation offloading(TSO)(IPv4,IPv6).
Support for packets up to 9.5KB Jumbo Frames.
System Requirements:
Microsoft Windows10 Version 1809 and later 32 or 64bit, Windows 11.
Linux4.20/5.x or later ,CentOS/RHEL8.1 or later,Ubuntu14.x/15.x/16.x or later.
VMware ESX/ESXi 4.x/5.x/6.x or later.
Hardware Requirements:
Available PCI Express x1/x4/x8/x16 slot.
Package Including:
1x PCIe x1 to 2.5G Network Adapter Card.
