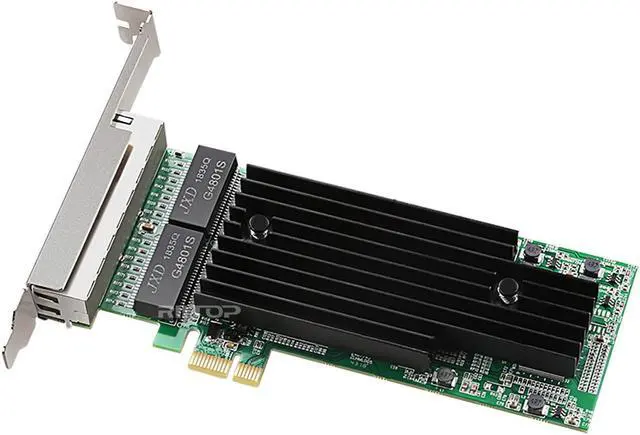

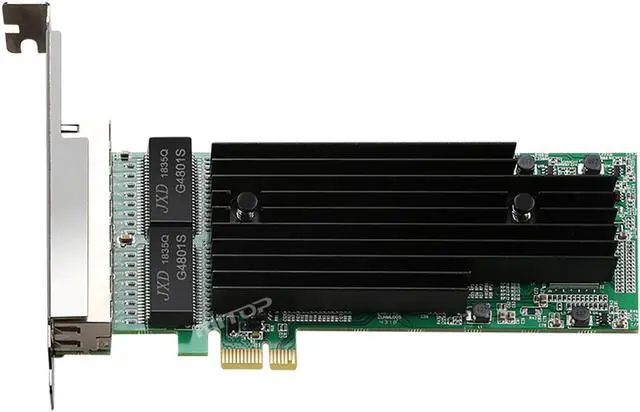

RIITOP 4 Port Gigabit NIC for Intel 82576-T4 with Low Profile, Gigabit Ethernet Network Adapter Card with Intel 82576 Controller, Support Windows/XP/Linux/VMware ESX, Quad RJ45 Ports, PCI-E X1
Limited time offer, ends 07/13 By RIITOP
- PCIe Gigabit Network Card 4 Ports RJ45 server Lan card Intel 82576EB Chipset.
- Quad RJ45 Ports: Support 10/100/1000Mbps data rates and Cat5e Cable, up to 100 meters, simplifying the transition to 1 Gb; PCI Express 2.0 (2.5 GT/s), X1 Lane, compatible with PCIE X1, X4, X8, X16 Slot.
- Widely Compatible OS:Windows 7/8/10/Visa/XP, Windows Server 2003/ 2008/ 2012, Linux, VMware ESX (Does not support VMware ESXi 7.0 or above.)

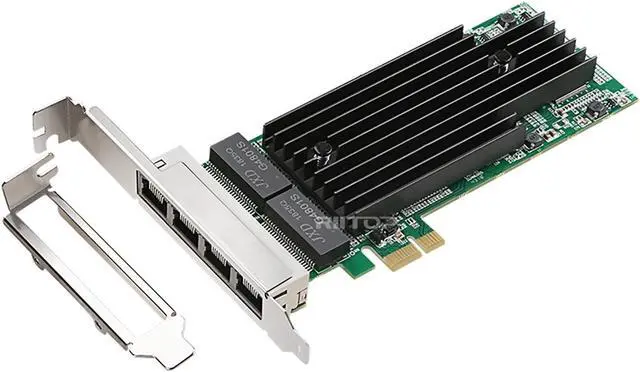

- Easy to Install: Packed with Low Profile Bracket and Full-height Bracket, support on both Standard and Slim computer/server.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
PCI Express X1 Network adapter adopts Intel a high performance Gigabit network.
controller JL82576EB ,By providing unparalleled features of virtualization, flexible features,
and proven reliable performance, it solves the high requirements of the generation data center,
it has quad 1Gps RJ45 port which can setup a long-distance link with a file server or a remote workstation.
Feature:
PCIe base specifiatication 2.0(2.5GT/S) or (5GT/s).
Complies with quad port 1GbE PHY device.
MDI(Copper)standrd IEEE802.3 Ethernet interface for 1000BASE-T,100BASE-TX,and10BASE-T application(802.3,802.3u,and 802.3ab).
PCI Bus Power Management interface Specification Rev1.2.
Max 9.6KB of jumbo frames supported.
Flow control supports: send/receive PAUSE frames and receive FIFO thresholds.
Statistics for management and RMON.
802.1Q VLAN support.
64-bit address support for systems using more than 4GB of physical memory.
IPv6 wake-up filters.
TCP segmentation offload :up to 256KB.
IPv6 support for IP/TCP and IP/UDP receive checksum offload.
Interrupt throttling control to limit maximum interrupt rate and improve CPU usage.
Receive packet split header.
Receive packet split header.
DCA support.
Suport for Virtual Machines device queues.
Supports OS:Linux,FreeBSD /Server2003/Win7/Win8/Win8.1/Server2012/Server2016/Win10 32/64bit.
Package Includes:
1x RIITOP 4 Port Gigabit NIC for Intel 82576-T4 1000Mbps.
1x Low Profile Bracket.
PCI Express X1 Network adapter adopts Intel a high performance Gigabit network.
controller JL82576EB ,By providing unparalleled features of virtualization, flexible features,
and proven reliable performance, it solves the high requirements of the generation data center,
it has quad 1Gps RJ45 port which can setup a long-distance link with a file server or a remote workstation.
Feature:
PCIe base specifiatication 2.0(2.5GT/S) or (5GT/s).
Complies with quad port 1GbE PHY device.
MDI(Copper)standrd IEEE802.3 Ethernet interface for 1000BASE-T,100BASE-TX,and10BASE-T application(802.3,802.3u,and 802.3ab).
PCI Bus Power Management interface Specification Rev1.2.
Max 9.6KB of jumbo frames supported.
Flow control supports: send/receive PAUSE frames and receive FIFO thresholds.
Statistics for management and RMON.
802.1Q VLAN support.
64-bit address support for systems using more than 4GB of physical memory.
IPv6 wake-up filters.
TCP segmentation offload :up to 256KB.
IPv6 support for IP/TCP and IP/UDP receive checksum offload.
Interrupt throttling control to limit maximum interrupt rate and improve CPU usage.
Receive packet split header.
Receive packet split header.
DCA support.
Suport for Virtual Machines device queues.
Supports OS:Linux,FreeBSD /Server2003/Win7/Win8/Win8.1/Server2012/Server2016/Win10 32/64bit.
Package Includes:
1x RIITOP 4 Port Gigabit NIC for Intel 82576-T4 1000Mbps.
1x Low Profile Bracket.
