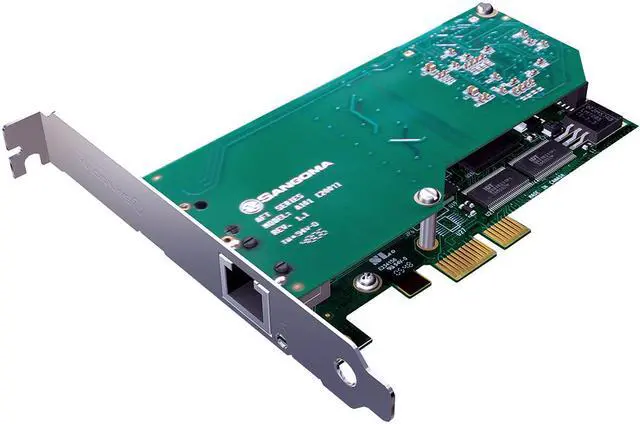

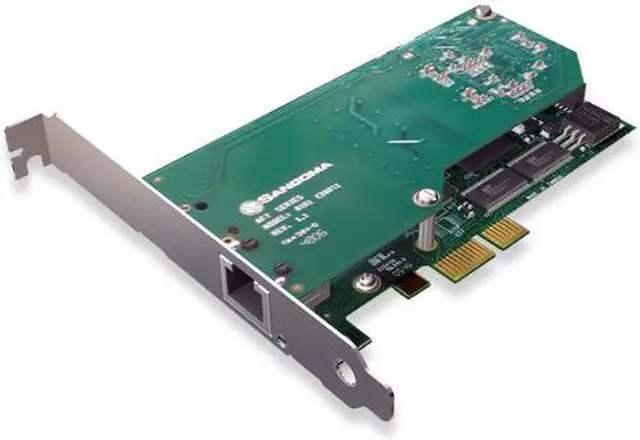

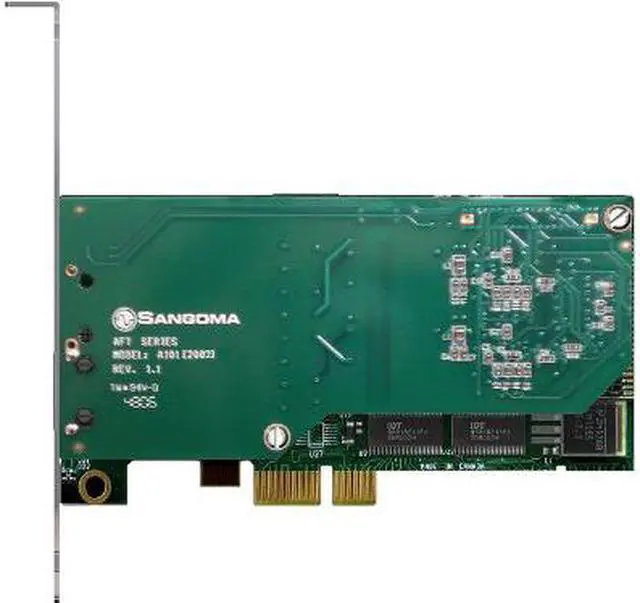

Sangoma Voice Board A101E Single Port T1/E1/J1 PCI Express

Single Span T1/E1/J1
The industry’s first affordable single span T1/E1/J1 card with available Telco-grade hardware echo cancellation — designed for optimum voice support for smaller systems.

One T1/E1 span with optimum PCI or PCI-Express interface for high performance voice and data applications
Support for Asterisk®, FreeSWITCH®, and Yate® as well as other Open Source and proprietary PBX, Switch,IVR, and VoIP gateway applications
Lifetime warranty (with product registration)

Technical Specifications

One T1/E1 span with optimum PCI or PCI-Express interface for high performance voice and data applications
Support for Asterisk®, FreeSWITCH®, and Yate® as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
All of Sangoma’s AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning.
Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available.
Autosense compatibility with 5 V and 3.3 V PCI busses
Line decoding: HDB3, AMI, B8ZS
Framing: CRC-4, Non CRC4, ESF, SF, D4. Also compatible with Japan’s J1.
A101E and A101DE PCI Express: 1 Lane PCI Express bus
Maximum operational power for PCI: 3 W (0.6 A @ 5 V) For PCI Express: 2.5 W (0.76 A @ 3.3 V)
Temperature range: 0 – 50 °C
32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
Use raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25
Impedance: Configurable to 75ohms or 120ohms
