$4,237^.20

Limit 99999 per customer.

Ships from China.

Price alert

Sold by tigremart

Meet Your Seller

Shop All SMC Products | Visit Tigremart Store

SYS-111AD-HN2-02-G1 1U IoT Edge Server Powered By Core I7-12700E Processor

Overview

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Key Applications

Key Features

Single Socket LGA-1700 support 12th & 13th Gen Core i9/i7/i5/i3/Pentium/Celeron Processor,up to 80W
4x DIMMs, Up to 128GB Unbuffered ECC/non-ECC UDIMM
1x PCIe Gen5 x16 HHHL slot
2 Hot-swap 2.5" SATA3 drive bays
4x 40x28mm 4-pin PWM fans
200W Low Noise AC-DC power supply with PFC

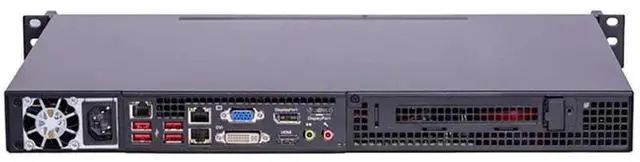

Rear-access I/O: 2x 2.5GBased-T, 1x Dedicated IPMI, 4x USB3.2, 1x VGA, 1x DVI-D, 2x DP,1x HDMI 2.0b

Main Specifications
Device Type	IoT SuperServer

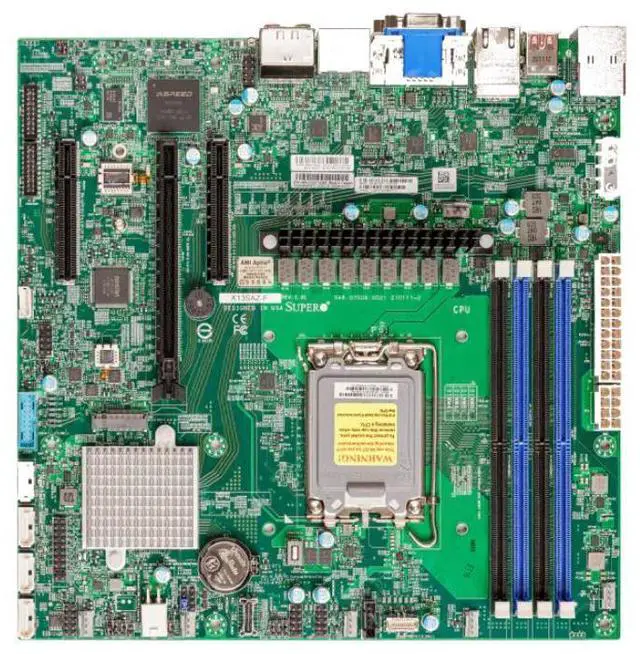

Built-in Devices	Super X13SAZ-F
Form Factor	1U Rackmount - CSE-510FT-203B
Dimensions (WxDxH)	Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 11.3" (287 mm)
Weight	Gross Weight: 14.1 lbs (6.4 kg) - Net Weight: 10 lbs (4.54 kg)
Enclosure Color	Black
Processor
Processor Installed	Intel Core i7-12700E Processor (Installed) With 12-Core/20 Thread (2.10GHz)
System Memory
Memory Installed	32GB DDR5-4800MHz
Drive Bays
Hard Drive Installed	1x 1.92TB 2.5in SATA Hard Drive
On-Board Devices
Network Connectivity	Dual-port 2.5GbE With RJ45 Connectivity (Included)
SATA/SAS	SATA (6Gbps)
Chipset	Intel R680E
Audio	Line Out, Mic in
Input / Output
LAN	2 RJ45 2.5 GbE LAN ports
USB(s)	4 ports
Video Output	1 VGA port, 1 HDMI 2.0b port, 1 DVI-D port, 2 DisplayPort 1.4 ports
Management
Software	SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0
Features	Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, System Lockdown
PC Health Monitoring
Temperature	SuperDoctor® 5, System resource alert via SuperDoctor®5, Platform Environment Control Interface (PECI) 3.0 support
Expansion / Connectivity

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
