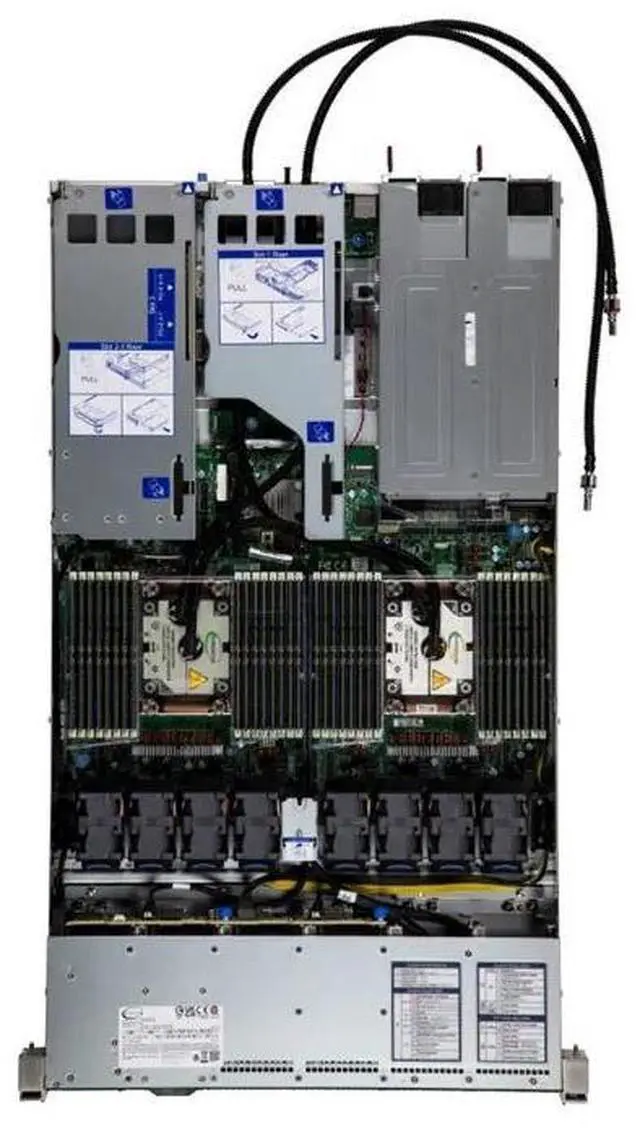

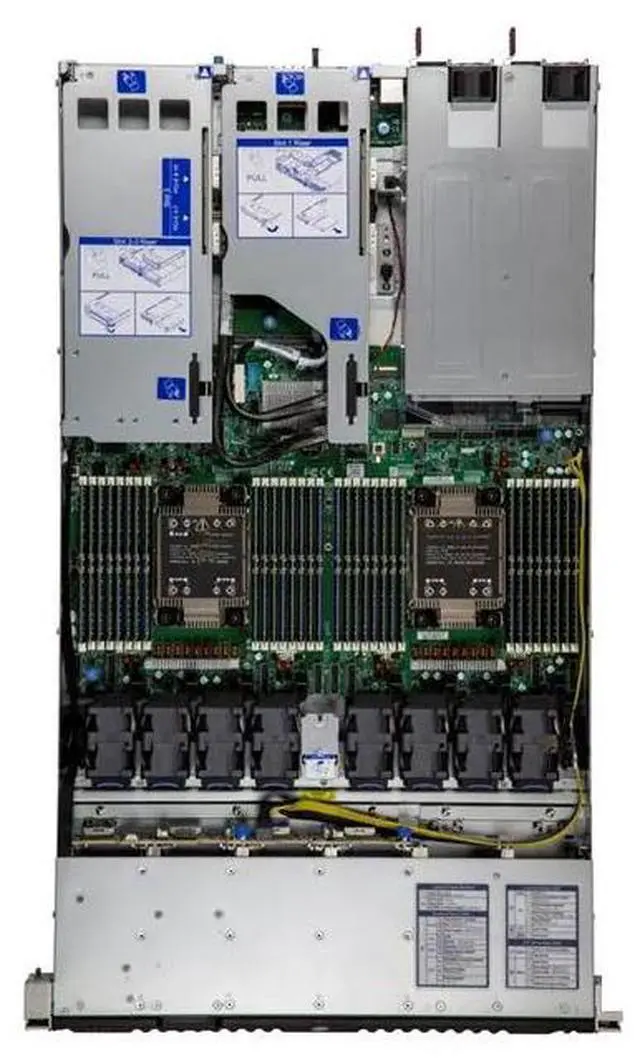

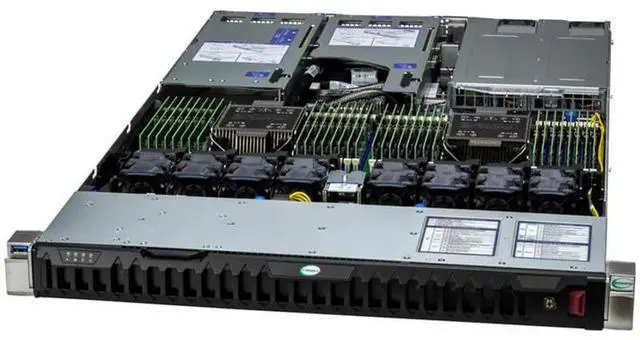

    SYS-121H-TNR-02-G1 1U Hyper Server Powered By Two Xeon Scalable 6542Y 5th Generation Processors

    Be the first to review this product...
    • SYS-121H-TNR-02-G1 1U Hyper Server Powered By Two Xeon Scalable 6542Y 5th Generation Processors
    +
    +
    Overview
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Key Applications


    1. Virtualization
    2. Software-defined Storage
    3. AI Inference and Machine Learning
    4. Cloud Computing
    5. Enterprise Server


    Key Features


    1. Dual Socket E (LGA-4677) 5th/4th Gen Intel Xeon Scalable processors
    2. 32 DIMM slots supporting up to 8TB of memory, RDIMMs up to DDR5-5600
    3. 3 PCIe 5.0 x16 slots with support for GPU/Accelerator cards
    4. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)

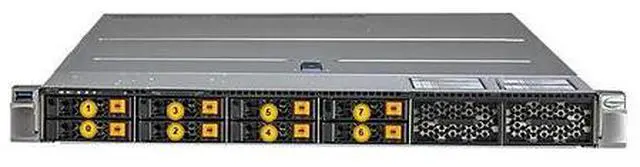

    5. 8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays, 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
    6. 8 heavy-duty hot-swap fans with optimal fan speed control



    Main Specifications
    Device TypeHyper SuperServer

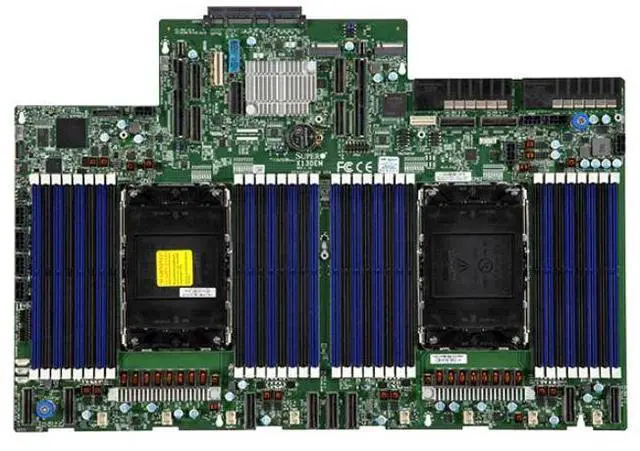

    Built-in DevicesSuper X13DEM
    Form Factor1U Rackmount - CSE-HS119-R1K24P2
    Dimensions (WxDxH)Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 29.4" (747 mm)
    WeightGross Weight: 49 lbs (22.2 kg) - Net Weight: 34 lbs (15.4 kg)
    GPU
    Max GPU CountUp to 1 double-width or 3 single-width GPUs
    Supported GPUsNVIDIA PCIe: H100 NVL, H100, RTX A5000, RTX A4000, L40S, L4
    Processor
    Processor InstalledTwo Intel Xeon Scalable 6542Y Processor 5th Generation (Installed) With 24-Core/48 Thread (2.9GHz)
    System Memory
    Memory Installed256GB DDR5-5600MHz
    Drive Bays
    Hard Drive Installed1x 3.8TB U.2 NVMe Solid-state Drive (SSD)
    On-Board Devices
    Network ConnectivityDual 10GbE With RJ45 Connectivity (Included)
    ChipsetIntel C741
    SATA/SASSATA (6Gbps), RAID 0/1/5/10 support
    NVMe.NVMe, RAID 0/1/5/10 support (Intel VROC RAID key required)

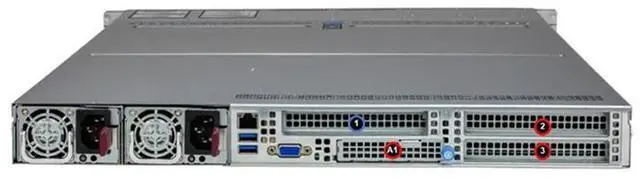

    Input / Output
    LAN1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB(s)2 USB 2.0 ports(rear), 1 USB 3.0 port(front)
    Video Output1 VGA port
    System BIOS
    BIOS TypeAMI 64MB SPI Flash
    Management
    SoftwareSuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management
    Security
    Hardware
