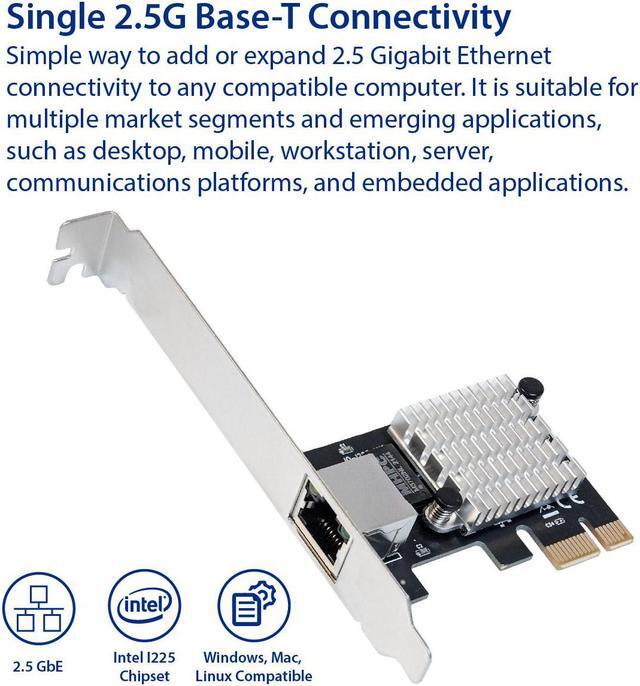

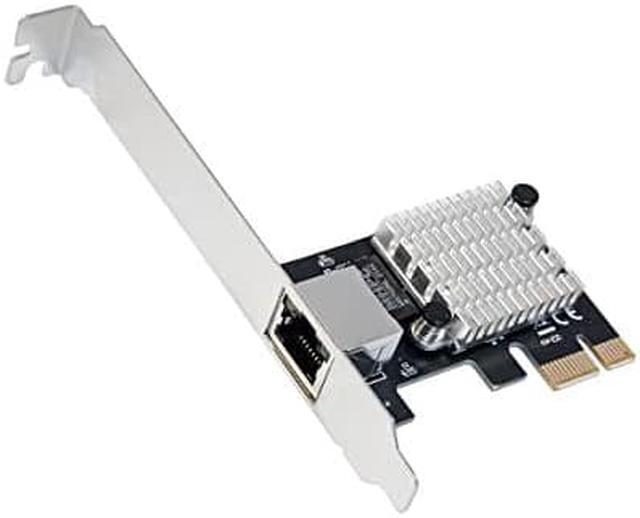

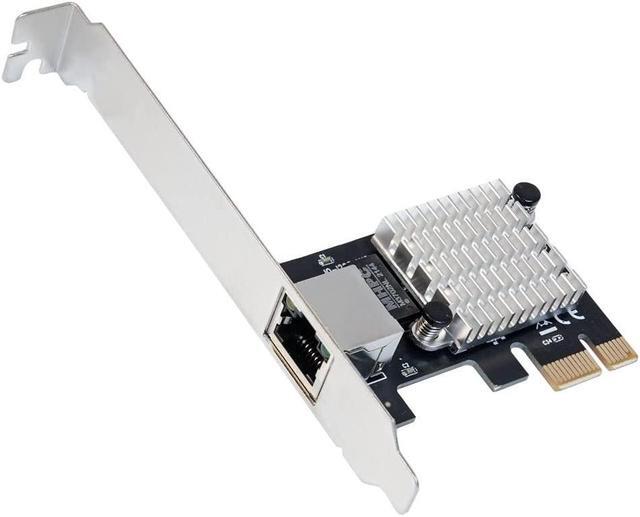

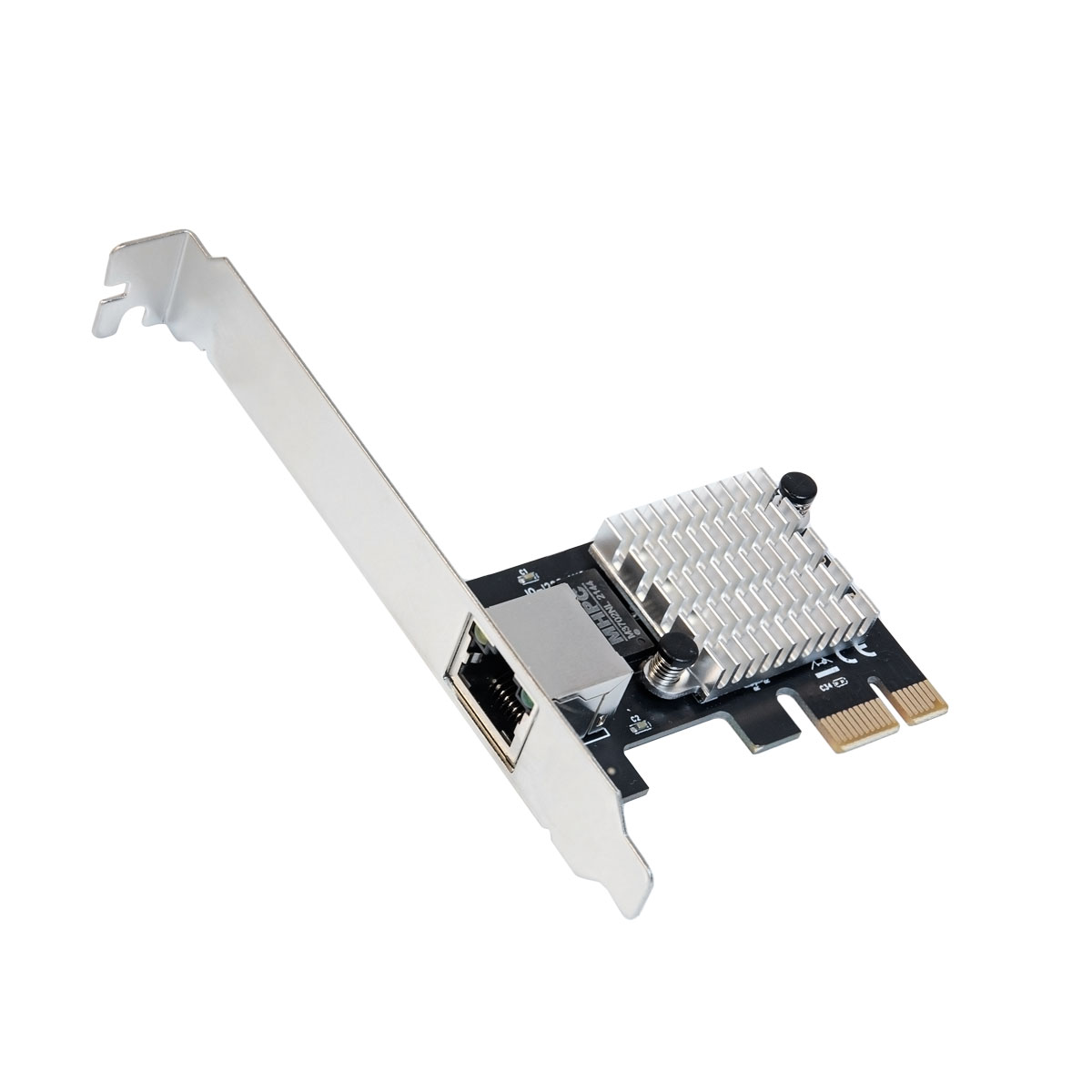

Single Port 2.5 Gigabit Ethernet PCI-e x1 Controller Card NIC Intel I225 Chipset

Name: Single Port 2.5 Gigabit Ethernet PCI-e x1 Controller Card NIC Intel I225 Chipset
Brand: IOCrest
SKU: 14U-00BA-00028
Price: 27.95 USD
Availability: InStock
Rating: 1 (1 reviews)

(1) Write a Review

The Intel® Ethernet Connection I225 includes advanced interrupt-handling features to reduce CPU overhead. Other performance-enhancing features include offloading TCP/UDP (for both IPv4 and IPv6) checksum calculations and performing TCP segmentation. Other performance-enhancing features include offloading TCP/UDP (for both IPv4 and IPv6) checksum calculations and performing TCP segmentation.
Advanced features such as Jumbo Frame support for extra-large packets and Receive Side Scaling (RSS) are also supported. Additionally, I225 builds on prior controller solutions to add Time Sensitive Networking (TSN) features including IEEE 802.1Qbu, 802.3br, 802.1Qbv, 802.1AS-REV, 802.1p/Q, and 802.1Qav on select operating systems. These features support advanced time critical, and synchronized applications prevalent in audio/video, embedded, and industrial applications.

Overview

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

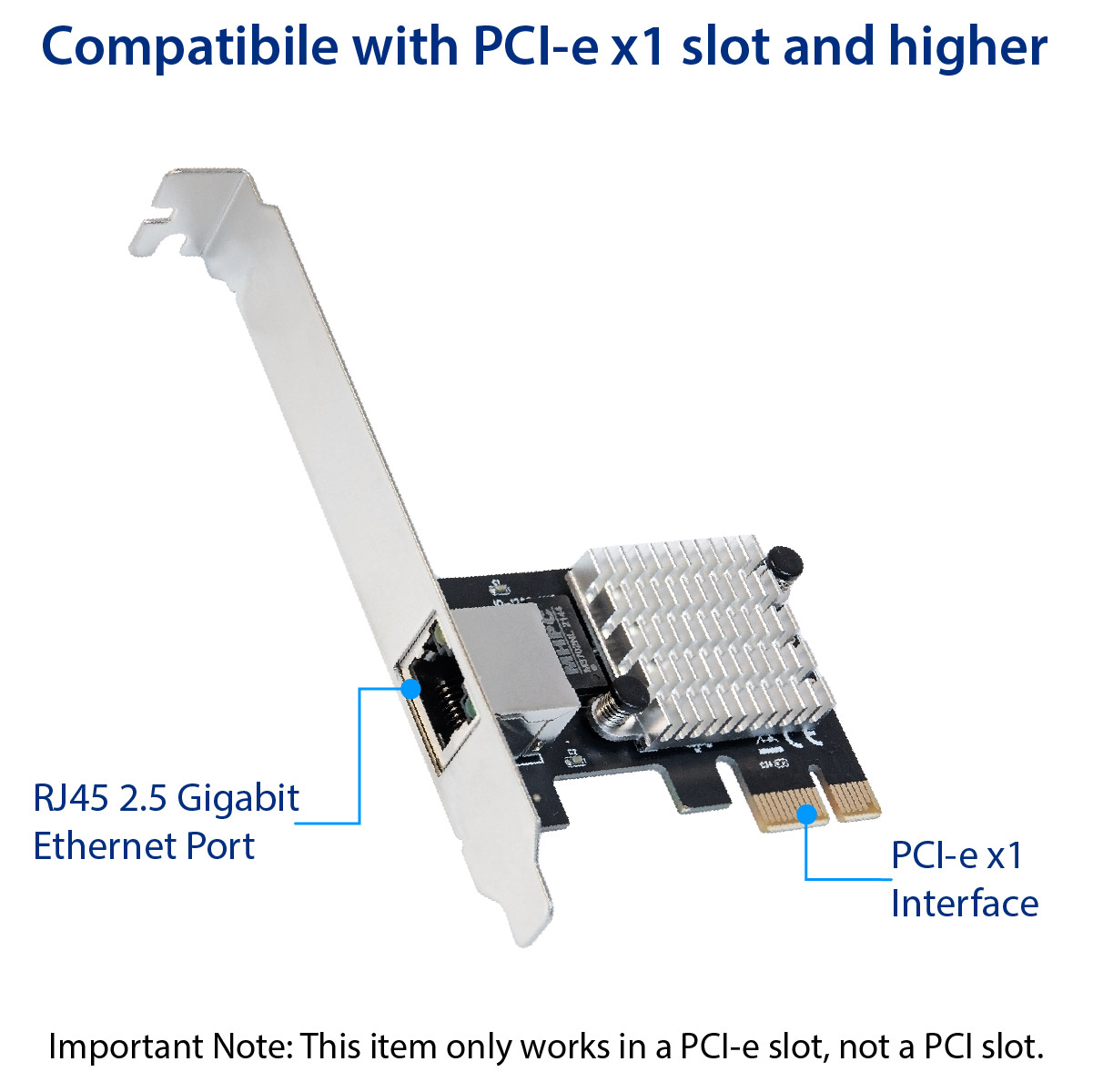

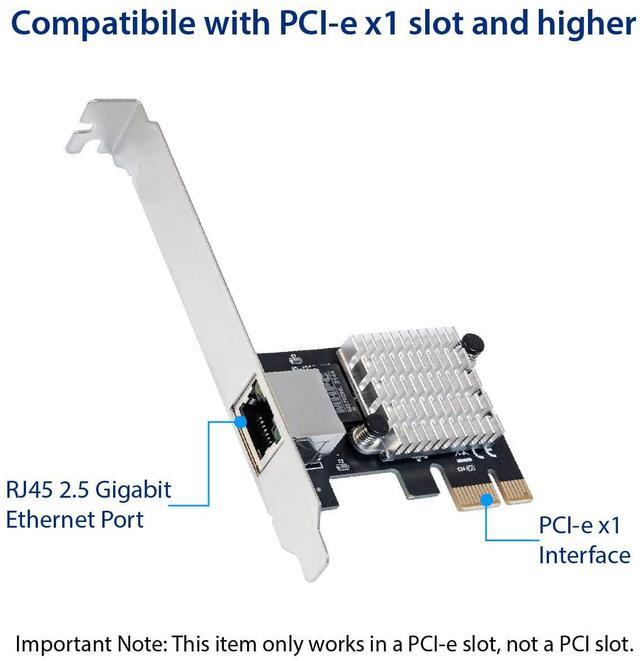

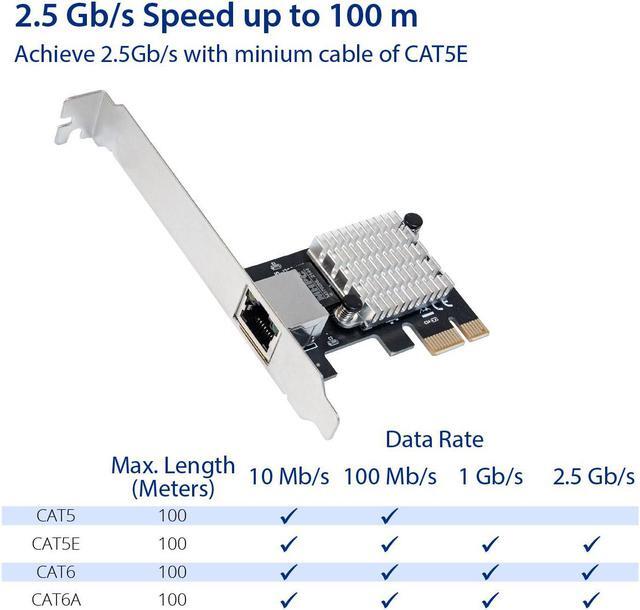

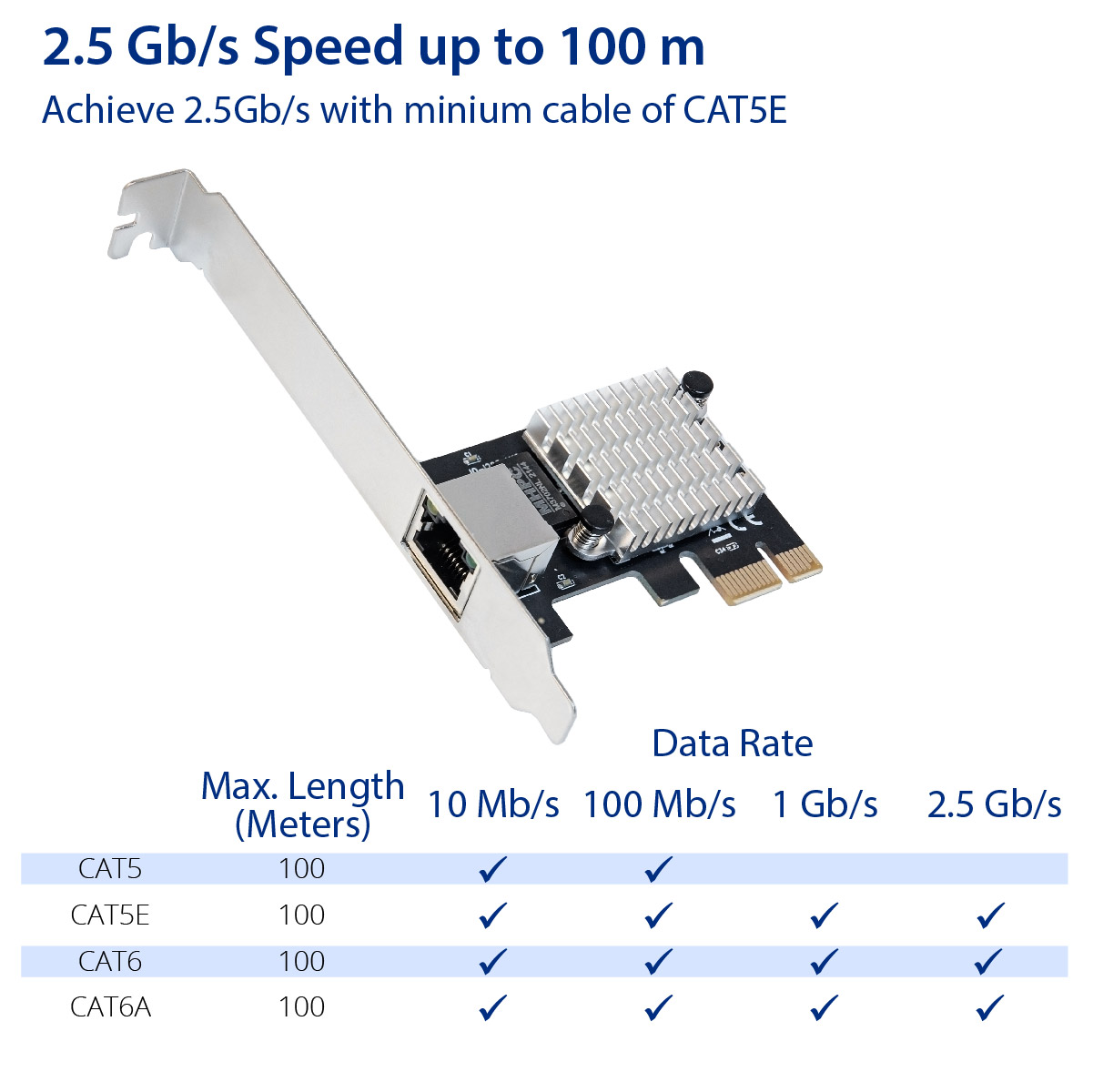

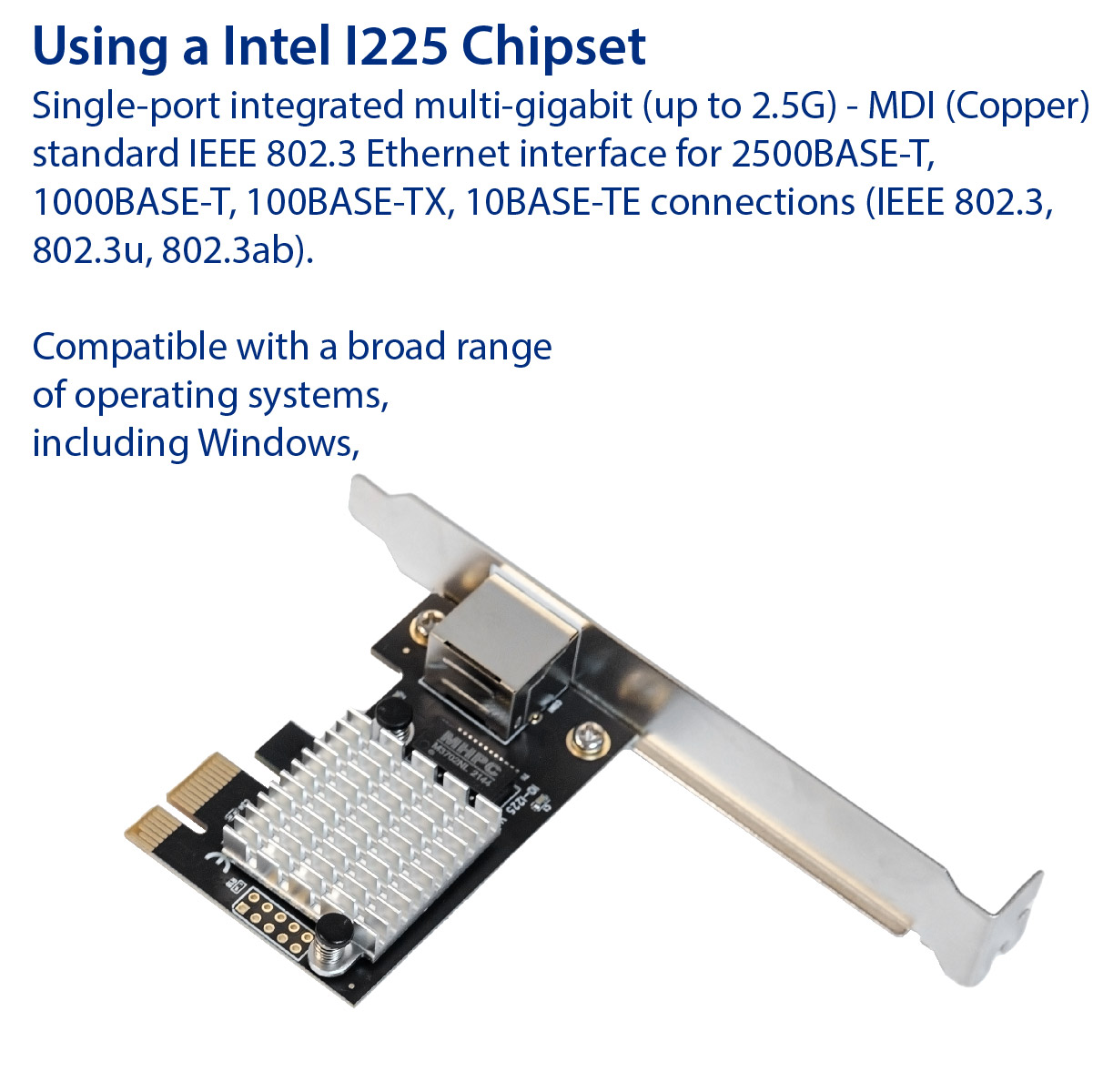

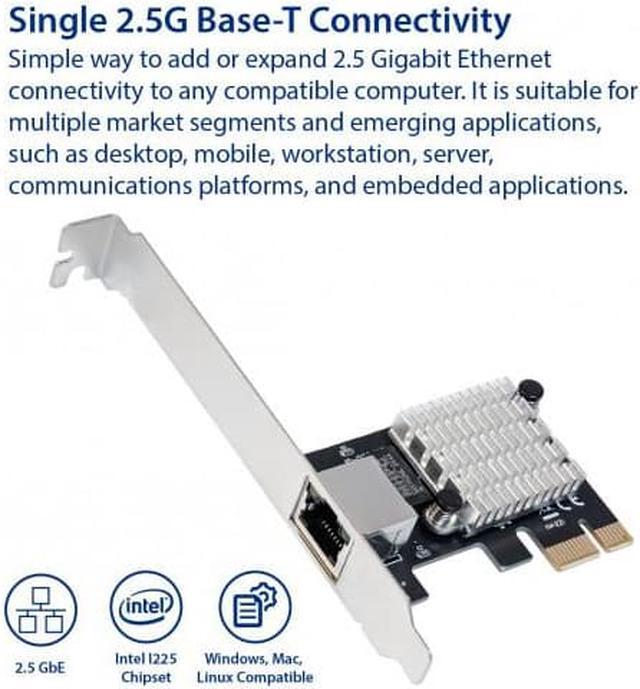

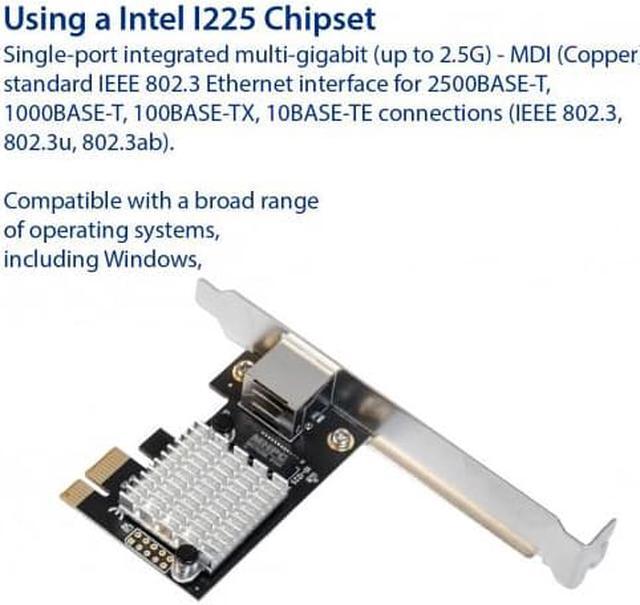

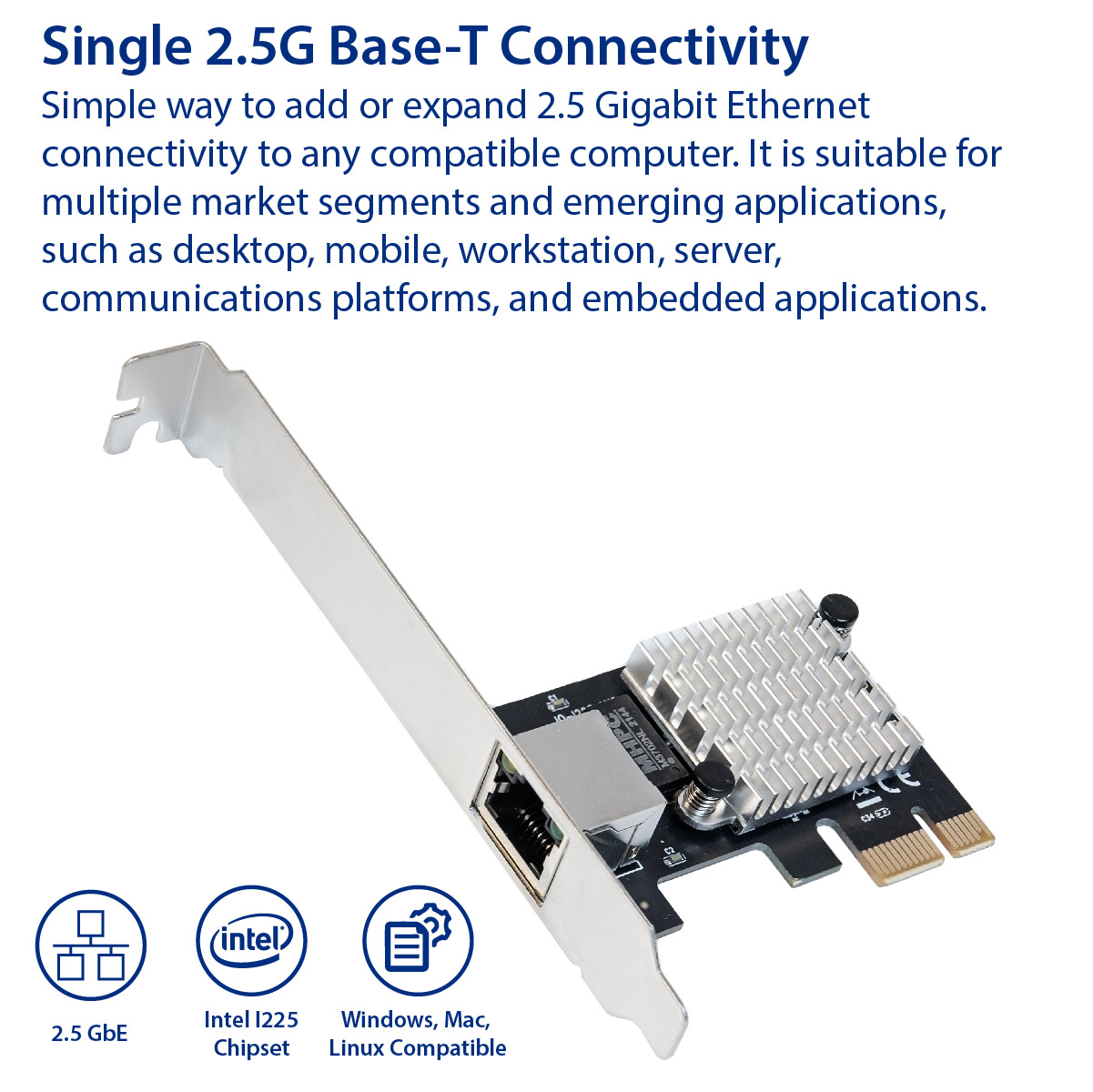

This PCI Express controller with Base-T copper networking interface, provides compact, single-port integrated multi-gigabit (up to 2.5G ) - MDI (Copper) standard IEEE 802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE connections (IEEE 802.3, 802.3 u, 802.3 ab). The Intel® Ethernet Controller I225 is designed for use on any mobile, desktop, workstation, value-server, or industrial designs that have critical space constraints. Also supports the latest time sensitive networking (TSN) features, along with best in class power management and Operating System Support

Advanced interrupt-handling features manage multiple interrupts simultaneously. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms.

Other performance-enhancing features include IPv4 and IPv6 checksum offload, TCP/UDP checksum offload, extended Tx descriptors for more offload capabilities, up to 256 KB TCP segmentation (TSO v2), 40 KB packet buffer size, and 9.5 KB Jumbo Frame support.
