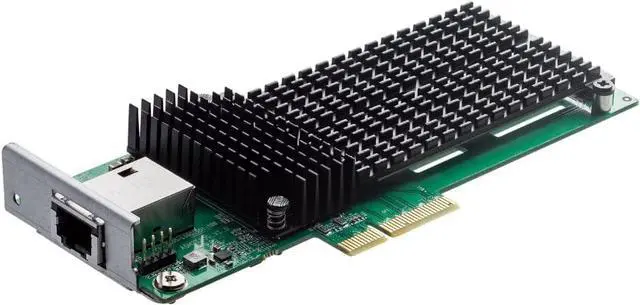

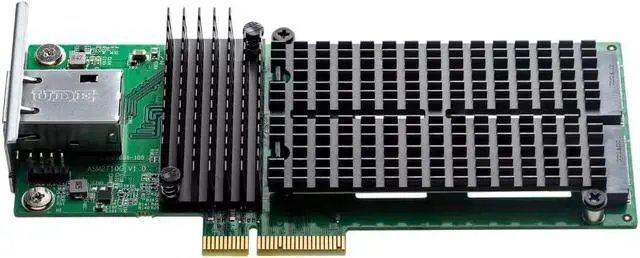

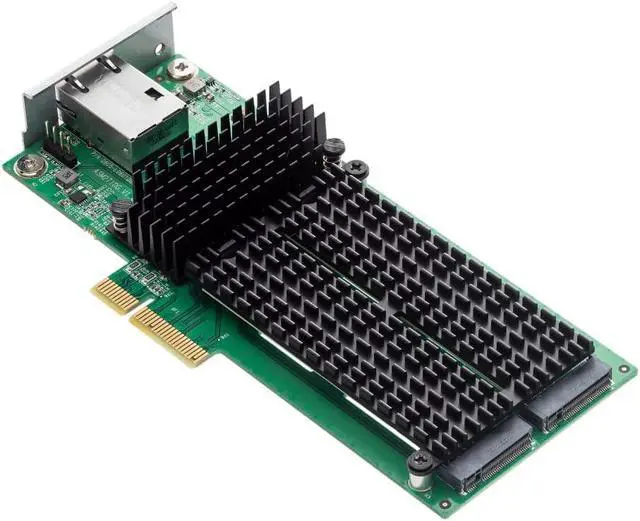

Asustor AS-T10G3, 10GbE & M.2 NVMe SSD Network Card (for AS6704T/AS6706T/AS6504RD/AS6504RS/AS6512RD/AS7112RDX/AS7116RDX)
- Uses the Marvell AQC113 10GbE controller
- Supports two M.2 NVMe SSDs
- Supports PCIe 3.0 x4
- Supports 10/100/1000/2500/5000/10000 Ethernet speeds
- Supports 16K jumbo frames.Supports IP, TCP, UDP checksum offloading (checksum offloading), reduce CPU usage.Supports VLAN ID tagging and QoS.Uses an 8P8C RJ-45 connection for compatibility with common types of networking equipment.Uses heatsinks to keep performance and efficiency high
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Install the AS-T10G3 in a compatible ASUSTOR NAS with a PCIe 3.0 x4 interface to upgrade your NAS to 10GbE while also taking advantage of that speed with NVMe SSDs. The AS-T10G3 also ensures you no longer need to choose between 10-Gigabit Ethernet and SSDs inside your NAS because both are included.
The AS-T10G3 brings read speeds of up to 1171 MB/s and write speeds of 1119 MB/s.
Test Environment: AS7116RDX, PC1 & PC2: Win 10, i74790, 24 GB (19 GB RAM DISK), Intel 545 Series SSD 128GB, NETGEAR ProSafe XS708T, Tested RAID level: RAID 5, 10GB file.
With a standard RJ-45 port, the AS-T10G3 allows you to easily upgrade to a 10-Gigabit network using standard Ethernet cables instead expensive fiber cables.
The AS-T10G3 comes with aluminum heatsinks and provides excellent heat dissipation to ensure the AS-T10G3 virtually any SSD can perform at their maximum performance.
IEEE 802.3an. 10GBase-T Ethernet
IEEE 802.3ab 1GBASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3bz NBASE-T
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x flow control
IEEE 802.1Q Tagged VLAN support
IEEE 802.1Qav Audio Video Bridging
IEEE 1588 v2 Precision Time Protocol (PTP, Precision Time Protocol)
Supported features
Jumbo Frame 16K Bytes
IP, TCP, UDP checksum offload
Supports 10/100/1000/2500/5000/10000 auto-negotiation.
Software requirements
ADM 4.2 or above
Hardware requirements
Lockerstor 4 & 6 Gen2, Lockerstor 4RD, RS & 12RD, Lockerstor 12RD Pro & 16RD Pro

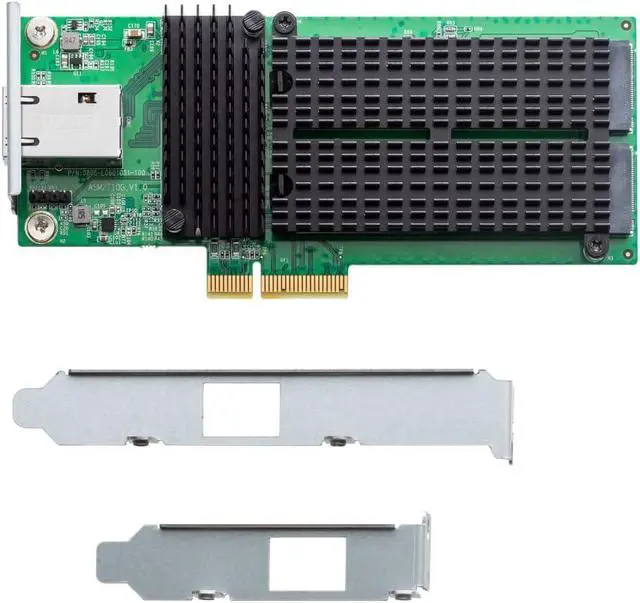

Maximum data transfer rate: 10 Gbps Network operation mode full duplex Host bus interface PCIe 3.0 x4 Storage interface NVMe Support size specification 2280 Interface type and quantity M-key, 2 slots Bracket support Lockerstor-specific bracket preinstalled, full-height and half-height brackets included. Certifications FCC, CE, UKCA, BSMI, VCCI, C-Tick, KCC SSD Caching and Storage with the Speed of 10GbE Excellent 10Gbps network performance Now with RJ-45! More useful than ever! Its Cool, In More than One Way Hardware Specifications
The AS-T10G3 brings read speeds of up to 1171 MB/s and write speeds of 1119 MB/s.
Test Environment: AS7116RDX, PC1 & PC2: Win 10, i74790, 24 GB (19 GB RAM DISK), Intel 545 Series SSD 128GB, NETGEAR ProSafe XS708T, Tested RAID level: RAID 5, 10GB file.
With a standard RJ-45 port, the AS-T10G3 allows you to easily upgrade to a 10-Gigabit network using standard Ethernet cables instead expensive fiber cables.
The AS-T10G3 comes with aluminum heatsinks and provides excellent heat dissipation to ensure the AS-T10G3 virtually any SSD can perform at their maximum performance.
IEEE 802.3an. 10GBase-T Ethernet
IEEE 802.3ab 1GBASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3bz NBASE-T
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x flow control
IEEE 802.1Q Tagged VLAN support
IEEE 802.1Qav Audio Video Bridging
IEEE 1588 v2 Precision Time Protocol (PTP, Precision Time Protocol)
Supported features
Jumbo Frame 16K Bytes
IP, TCP, UDP checksum offload
Supports 10/100/1000/2500/5000/10000 auto-negotiation.
Software requirements
ADM 4.2 or above
Hardware requirements
Lockerstor 4 & 6 Gen2, Lockerstor 4RD, RS & 12RD, Lockerstor 12RD Pro & 16RD Pro
Maximum data transfer rate: 10 Gbps Network operation mode full duplex Host bus interface PCIe 3.0 x4 Storage interface NVMe Support size specification 2280 Interface type and quantity M-key, 2 slots Bracket support Lockerstor-specific bracket preinstalled, full-height and half-height brackets included. Certifications FCC, CE, UKCA, BSMI, VCCI, C-Tick, KCC SSD Caching and Storage with the Speed of 10GbE Excellent 10Gbps network performance Now with RJ-45! More useful than ever! Its Cool, In More than One Way Hardware Specifications
