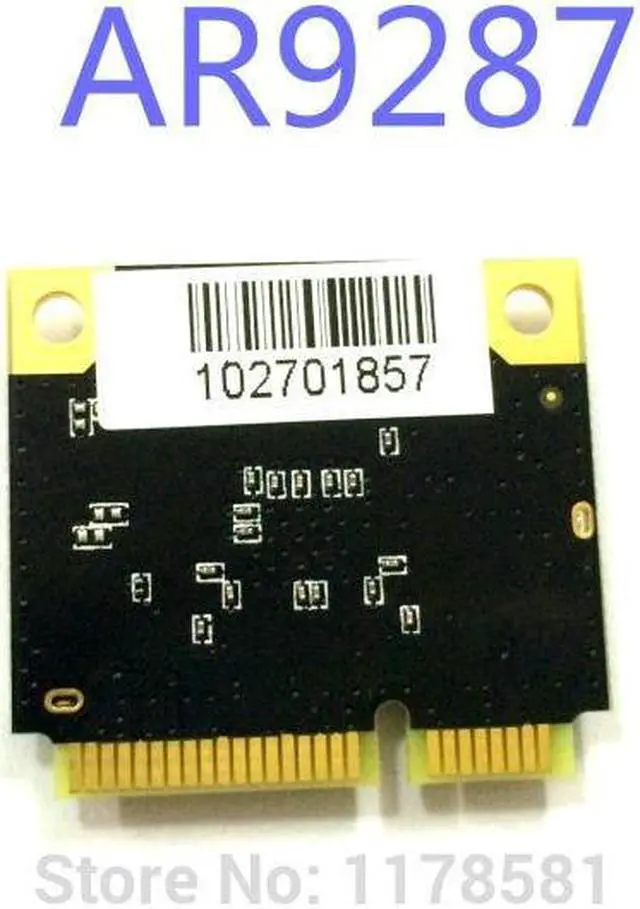

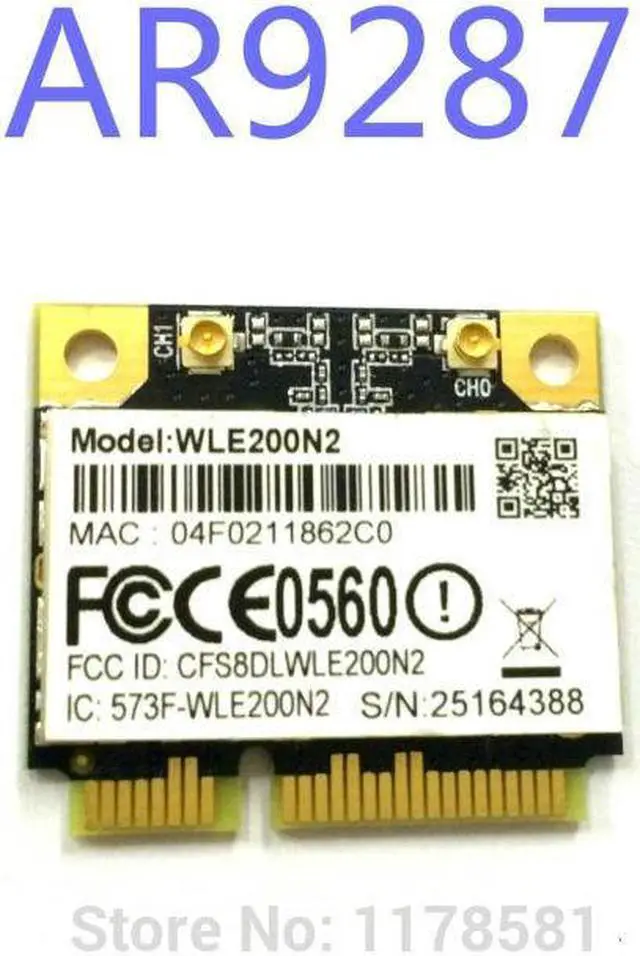

High power Compex WLE200N2 / 802.11 n/b/g 2x2 MIMO / Half-Size PCI-Express MiniCard (Qualcomm Atheros AR9287) 16dBm

WLE200N2

2.4GH z 2Ã2 802.11 n Half Sized Module
Atheros HB97 reference design
IEEE 802.11 n compliant and backward compatible with 802.11 b/g
2.4GH z Single-band 2 x 2 MIMO spatial multiplexing technique
Output Power up to 16dBm
Supports up to 300Mbps physical data rates

Specification Table

Product Type
Wireless Module
Chipset
AR9287
Wireless Standard
802.11 n, 802.11 g, 802.11 b
MIMO Channels
2Ã2
Output (Per Chain)
16dBm
Wireless Speed
300Mbps
Frequency Range
2.412 ~ 2.472 GHz
Interface
1x MiniPCI-e Pin, 2x U. FL Connector
MiniPCI-e Pin
v 1.1
Power Consumption
1.9 Watts (Max)
Temperature Range
Operating: -20oC to 70oC, Storage: -40oC to 90oC
Humidity
Operating: 5% to 95% (non-condensing)
Certification
IC, CE, FCC, RoHS Compliance
Dimension (W x H x D)
30mm x 26.8 mm x 3.45 mm

2.4G hz (Per Chain)
Data Rate
TX
RX
802.11 b/g
11Mbps
16
-94
54Mbps
11
-78
11n HT20
MCS 0
N. A
N. A
MCS 7
12
-67
11n HT40
MCS 0
N. A
-N. A
MCS 7
11
-65
