Installation: The network card can be installed on any motherboard with pci-e x1 x4 x16 interface. The Bluetooth cable need connect to the motherboard's 9pin usb 1.0 or 2.0 interface. Please make sure that your computer Motherboard have a WLAN interface and a Bluetooth cable connection interface! Also Support almost AMD Board except B350, have compatibility problems. If you are not sure if your device could use or not, please contact us to confirm.
Please Note: the card also requires a USB connection to your motherboard to make the Bluetooth functional. REV 5.0 features improved USB connection options now include a pin header or female USB A port.
Compatible with: PCI-E 1X~16X
Interface Features:
Chip: Intel 9260 AC
Standard IEEE: 802.11 ac With Bluetooth 5.0 Dual Band 2.4G hz-300Mbps/5Ghz-1730Mbps
Operating Systems: Google Chrome OS*, Windows® 10* Not for the other system!!

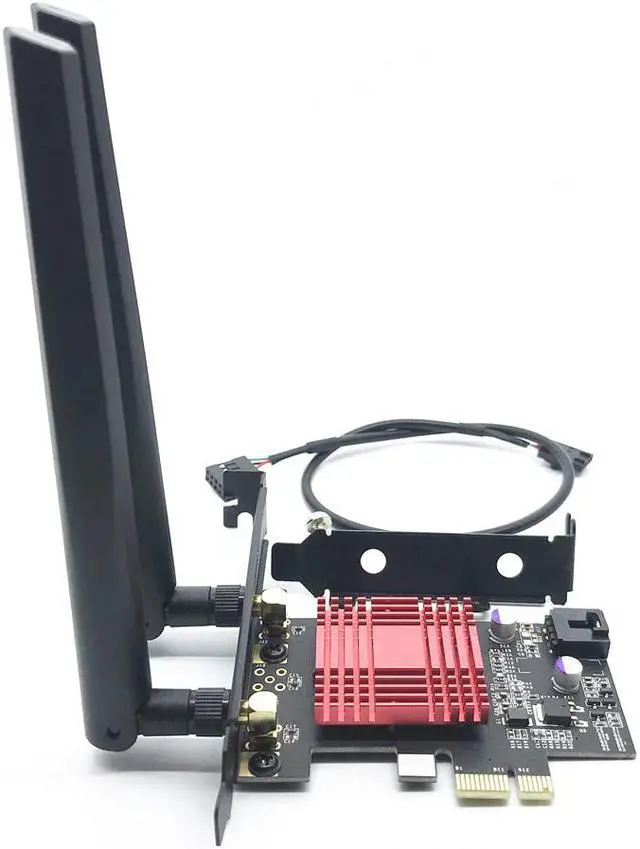

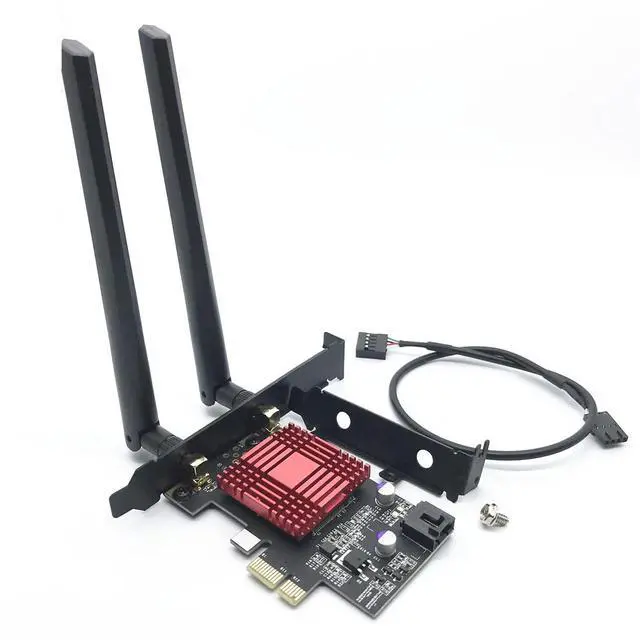

Package Include: 1 x Desktop card 1 x Half bracket 1 x Female USB header cable 1 x Set of screws 2 x External antenna Driver could be download from Intel Official Website or you could contact us for Driver File.
