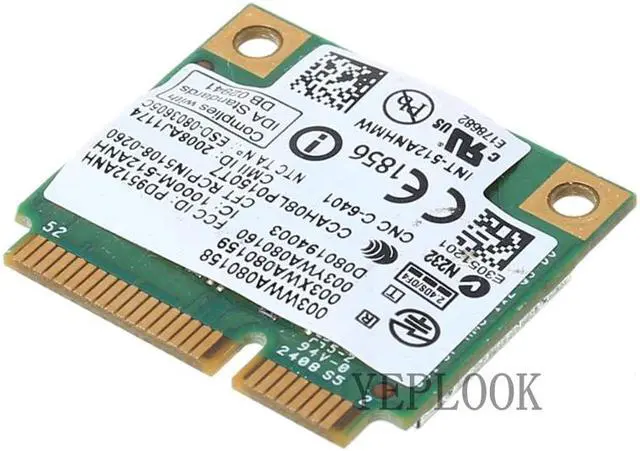

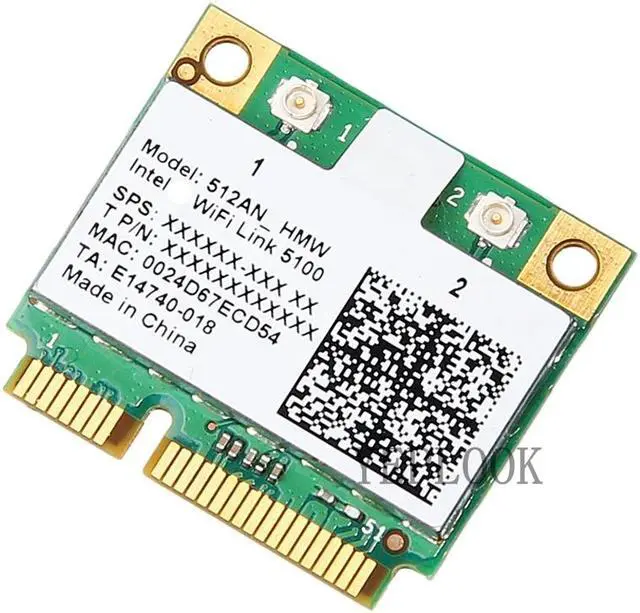

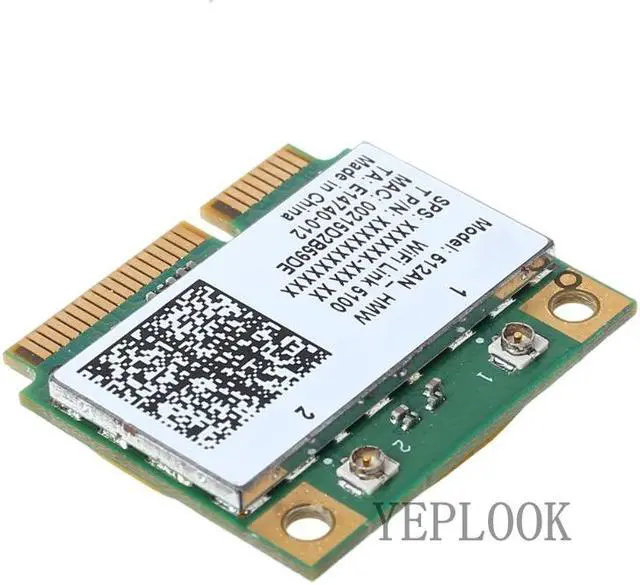

512AN HMW WiFi Card 5100 300mbps Dual Band 2.4G/5Ghz 802.11n PCI-E Mini PCIe Half Card

The Intel WiFi Link 5100 Series is a family of IEEE 802.11 a/b/g/Draft-N1 wireless network. Adapters that operate in both the 2.4 GHz and 5.0 GHz spectra. These adapters, available in both PCIe Mini Card and Half Mini Card form factor deliver up to 300 Mbps, 2 of receive band width; in addition to providing a host of features that enhance today's mobile lifestyle.
Features: Over 5x bandwidth increase compared to existing 802.11 a/b/g solutions Up to 2x greater range IEEE 802.11 a/b/g and Draft-N1 compliant WiFi Personal Area Network capabilities Industry-leading power consumption Wireless support for Intel Active Management Technology Advanced security via 802.11 i Easy-to-use Intel PRO
Set v 12.0 WLAN Software Support for Cisco Compatible Extensions* v4 Performance-optimized with Connect with Intel Centrino processor technology certified
Access Points Tips: Compatible
with: Chipset of the motherboard Intel 940 over laptop, For Dell, Asus, Acer, Samsung. ect(with Full size PCI-E Interface) Not support for hp/lenovo/IBM laptops
Specifications: Item
Type: Intel Link 5100
Wireless Card Model: 512AN

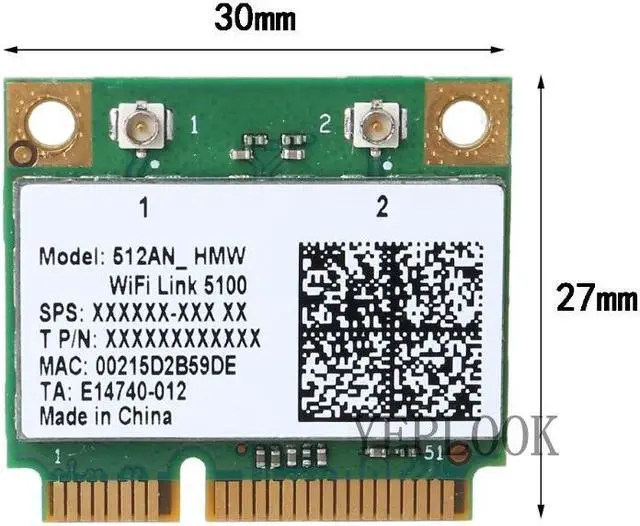

MMW Size: 50 x30mm/ 1.97 x 1.18 in (Approx.
) Frequency Band: 2.4GH z, 5GHz
Wireless network card type: Wireless card
Network standard: 802.11 a, 802.11 g, 802.11 n
Interface type: Mini Card or Half Mini
Card Compatible Port/Slot: ?€Mini
PCI Express Max Speed: 300Mbps
Package includes: 1 x Wireless card, 2 Screws
