MINI PCIE 1G LAN Card Dual Port RJ45 Industrial Server 10/100/1000Mbps Gigabit Ethernet Adapter Network Card Chipset Intel I350

MINI PCIE 1G LAN Card Dual Port RJ45 Industrial Server 10/100/1000Mbps Gigabit Ethernet Adapter Network Card Chipset Intel I350



The adapter card uses the Mini PCIe slot design, which is designed to be used on industrial equipment such as industrial computers and single board computers that contain Mini PCIe interface slots. It can solve the problem of compact device space, I350AM2 Ethernet adapter card supports 10/100/1000Mbps The link rate is automatically adapted to the existing Ethernet network.



Halogen-free dual-port or four-port Gigabit Ethernet adapter with copper cable or fiber interface options. Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports. Innovative power management functions, including energy-saving Ethernet (EEE) and DMA merge, can improve efficiency and reduce power consumption.



Scalable iSCSI performance provides cost-effective SAN connection. Supports existing CAT-5 network cabling and automatic crossover detection. Fully Compliant with PCI-Express Base Specification Revision 1.1. PCI-Express 1 x bus bandwidth up to 2.5G bps. Compliant with PCI-E Mini Card Electrical Specification Revision 1.2

Meets Half size MiNi Card specifications.



Basic system plug and play







Specification:

Chipset: Intel I350 AM2

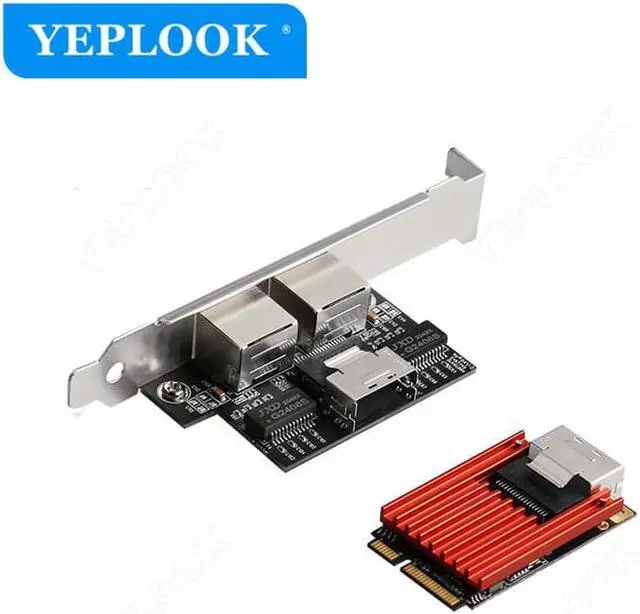

Port number: 2*RJ45 network interface

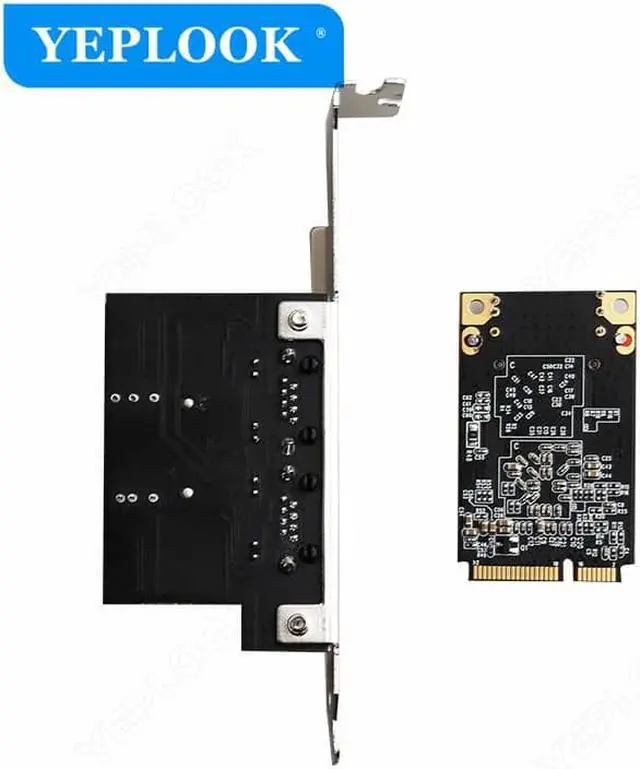

RJ45PCB Size: 12* 3.7 cm

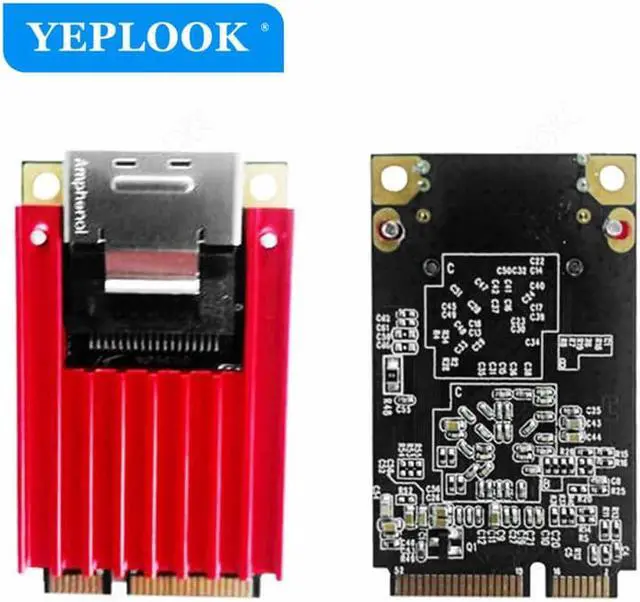

MINI PCB Size: 3*5cm

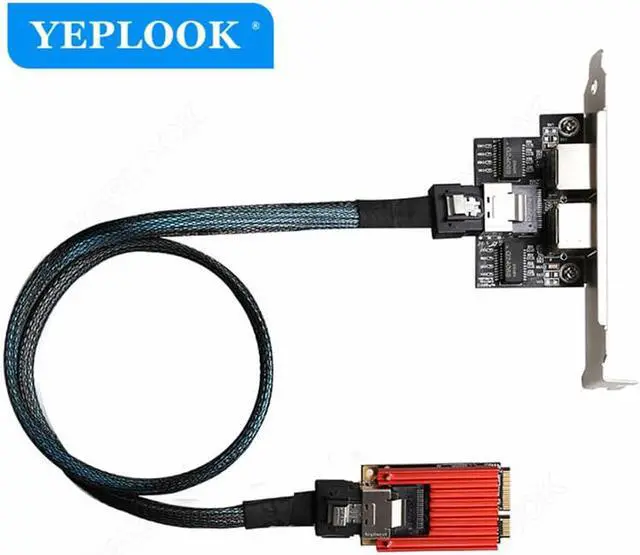

Adapter Cable: 60cm

Data rate: 10/100/1000Mbps

Network type: Gigabit Ethernet adapter

Interface: Mini PCI Express

LED Indicator: 4 LED 10/100/1000Mb (Link/Act)



Standard: Fully compliant with IEEE 802.3, full-duplex flow control (IEEE 802.3 x), IEEE 802.3AD IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.1Q VLANS Tagging, IEEE 802.3AB 1000BASE-T GIGABIT ETHERNET, IEEE 802.3U 100 BASE-TX FAST ETHERNETNGY, Supports 9K bytes jumbo frames





Support OS: DOS, Novell ODI, Windows XP 32-bit(64-bit), Windows Server 2003 32-bit(64-bit), Windows Vista 32bit(64-bit), Windows 7 32-bit(64-bit), Windows 8 32-bit(64-bit), Windows 8.1 32-bit(64-bit), Windows Server 2008 32-bit(64-bit), Windows Server 2008 R2 32-bit(64-bit), Windows Server 2012, Windows Server 2012 R2, Linux 2.4 series kernel, 2.6. x, 3. x, FreeBSD 7. x or most of FreeBSD, UnixWare / Open Unix 8, Sun Solaris x86, VMware, Xen4




Features:

Halogen-free dual-port Gigabit Ethernet adapters with fiber interface options

Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption

Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports

Scalable iSCSI performance delivering cost-effective SAN connectivity

High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s

Reliable and proven Gigabit Ethernet technology from Intel Corporation

Intel® Ethernet Controller I350

With PCI Express* V 2.1 (5 GT/s) Support

Low-Profile and Standard height full

Automatic cross-over detection function (MDI/MDI-X)

IEEE 1588 protocol and 802.1AS implementation

Supports cross detection and automatic correction operations

High Performance 1000BASE-T Ethernet Control Card

Backward compatible with 10, 100M network mode, automatically match 10M/100M/1000M data transmission mode

Compatible with existing CAT-5 network cabling

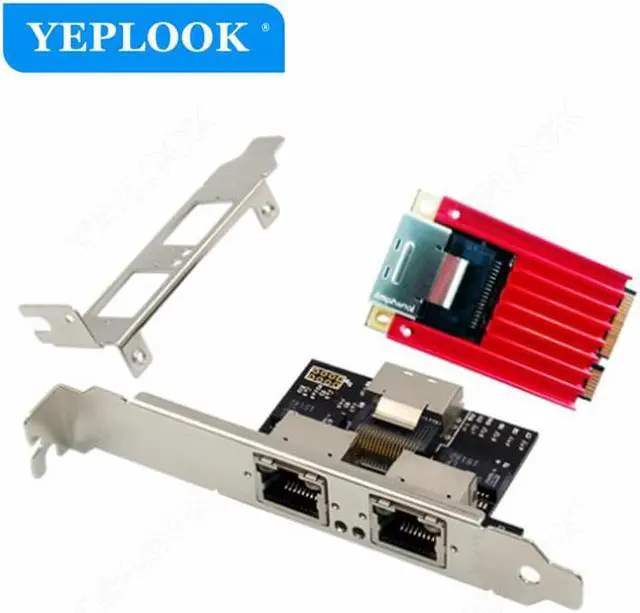

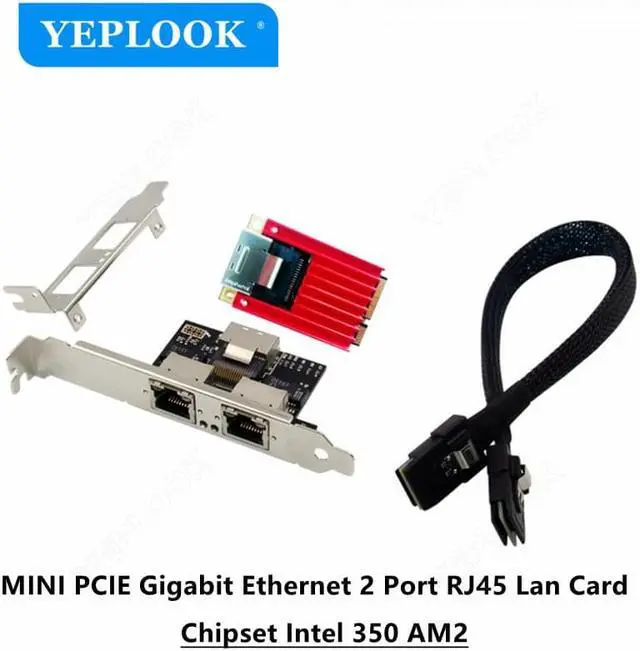

Package List: 1 x Mini PCIe Gigabit Ethernet Card, 1 x Gigabit RJ45 Port, 1 x SATA Sata Cable, 1 x Bracket, 1 x CD-Drive
