PCIe X4 4 Ports RJ45 10/100/1000Mbps/ 2.5G Network Card Gigabit Ethernet Card Chipset RTL8125BG For Server Desktop Computer
Features:
* Equipped with a standard RJ45 network port, the data transmission rate is up to 10/100/1000M25Gbps.
* Using RTL8125BG chip, make the speed faster and more stable.
* Adopt heat sink to reduce network temperature, ensure stable operation of network card and longer service life.
* Supports 4 high-performance 2.5 -Gigabit LAN ports.
* Thickened electric gold has high hardness, more wear-resistant and better contact than ordinary electric gold, and can be plugged and unplugged for 10, 000 times.
Description:
Model number: TXA197
Chipset: RTL8125B
Port number: 4* RJ45
Standard: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 ab, IEEE 802.3 az, IEEE 802.3 bz
Network media: 10Base-T, cat3 or above UTP, 1000Base-Tx, cat5 or above UTP
Data rate: 10/100/1000Mbps/ 2.5G bps
Interface: PCI Express X4 slot
Bus Type: PCI Express 2.1 (5 GT/s)
Bus Width: x4 lane PCI Express, operable in x8 and x16 slots
LED Indicator: 4 Act LED (Orange), 4 2.5G /1G Speed (Green)

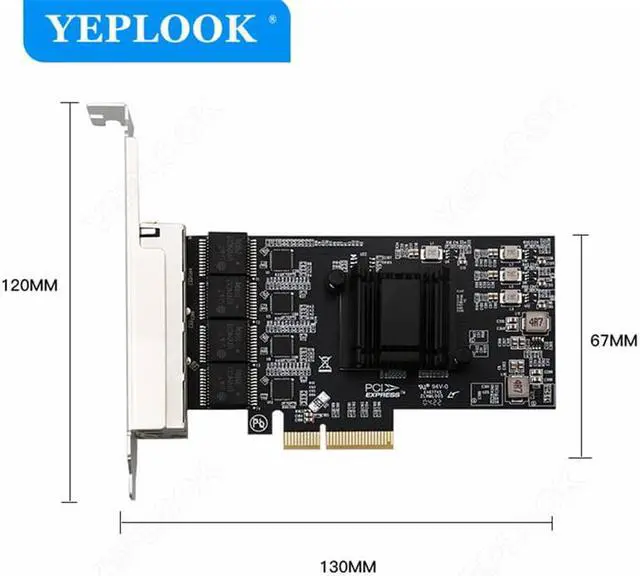

Dimension: 120*140*22mm
OS Compatibility: Windows® 7, 8. x, 10, 11, Windows Server® 2008 R2, 2012, 2016, Linux 2.6. x to 5. x
Environment: Operating Temperature: 0 -55
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -10-70
Relative Humidity: 10%-90%(non-condensing)
System and Cable Requirements: PCI Express enabled computer with an available PCI Express, x4 slot Gen 2.0 or higher (x4, x8, x16)
Power Consumption: 2.5G bps 3.3W ( 3.3V /1A)
Package Contents: 1 * PCIe X4 4 Ports RJ45 10/100/1000Mbps/ 2.5G Network Card
