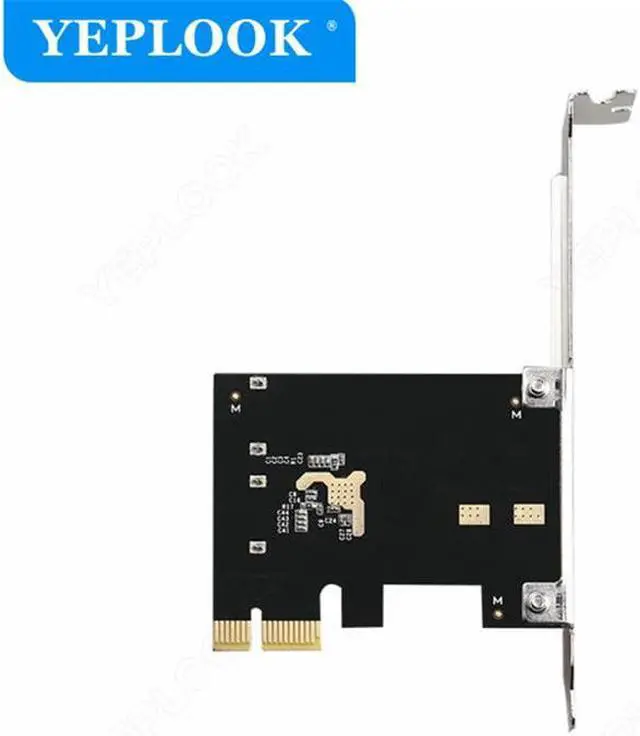

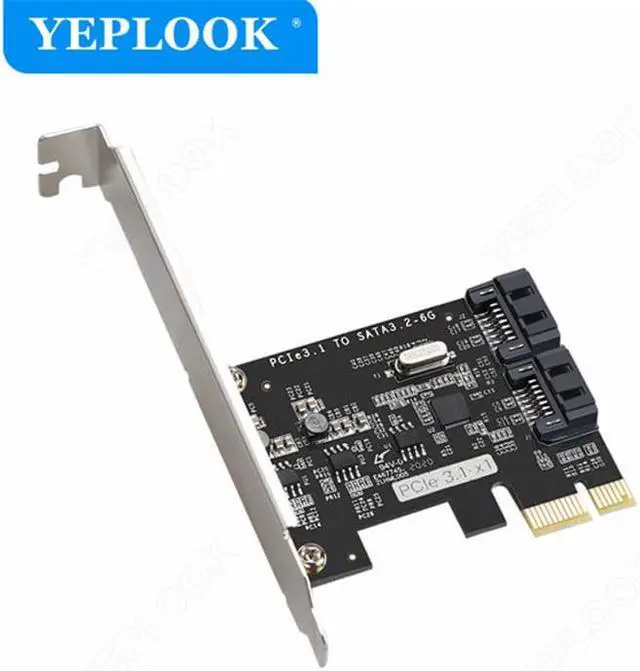

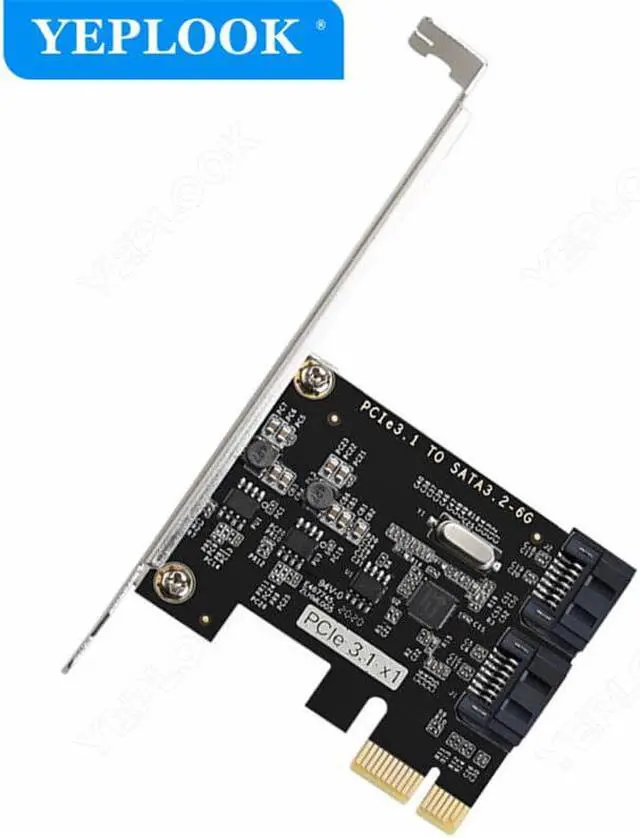

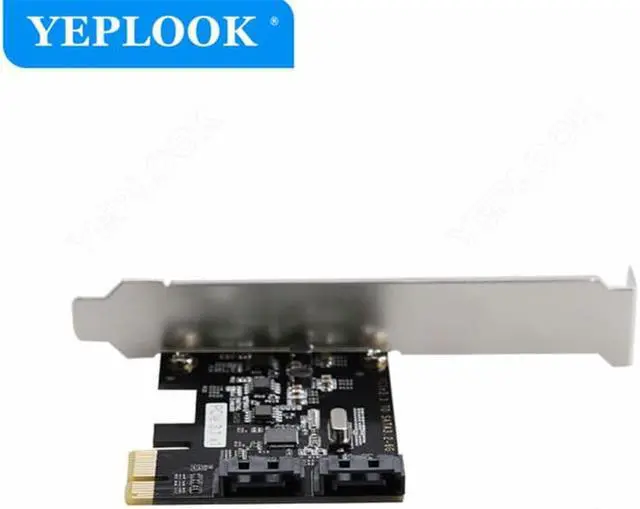

PCIe 1x to 2 SATA 3.0 SATA III 6Gb/s JMS582 Chipset PCI Express x1 SATA Expansion Controller Adapter Card
The TXB116 is 2-port SATA III (6 Gbps) to PCI Express x2 Gen 3 Host Card. It adds 2 AHCI SATA III port to computer though a PCIe slot (x1), delivering multiple internal 6Gbps connections for high performance hard drives and Solid State Drives (SSDs).
With full support for SATA 3.0 hard drives and data transfer speeds of up to 6Gbps, the adapter card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for internal SATA 600 MB/s storage needs.
Features
2 AHCI SATA III (6 Gbps) ports through PCI Express x1
Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II ( 1.5 / 3.0G bps) drives
Compliant with PCI Express 3.1 a standards
Port Multiplier Command-based switching supported
Natively supported single chipset design
Support Native Command Queuing (NCQ)
Support SSC for both PCIe and SATA
Includes Low Profile/Half-Height installation bracket
Hardware
Bus Type: PCI Express x1
Card Type: Standard/Low Profile
Chipset ID: JMB582
Interface: SATA
Ports: 2
Performance
Bootable: Yes
Hot Swap Capability: Yes
Port Multiplier: Yes

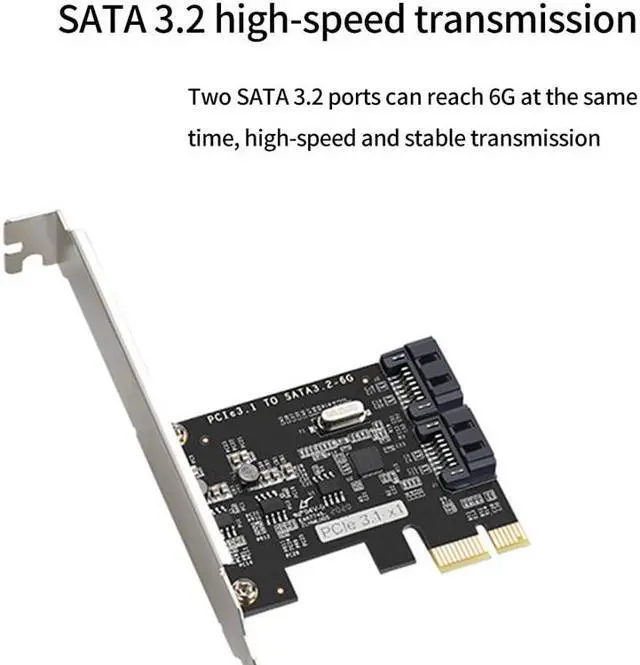

Type and Rate: SATA III (6 Gbps)
Connector (s)
Connector Type (s): 1 PCI Express x1 Male
Internal Ports: 2 SATA (7 pin, Data) Plug
Software
OS Compatibility: Windows® 7, 8. x, 10 Windows Server® 2008 R2, 2012, 2016, 2019 Linux 2.6. x to 4. x
Special Notes / Requirements

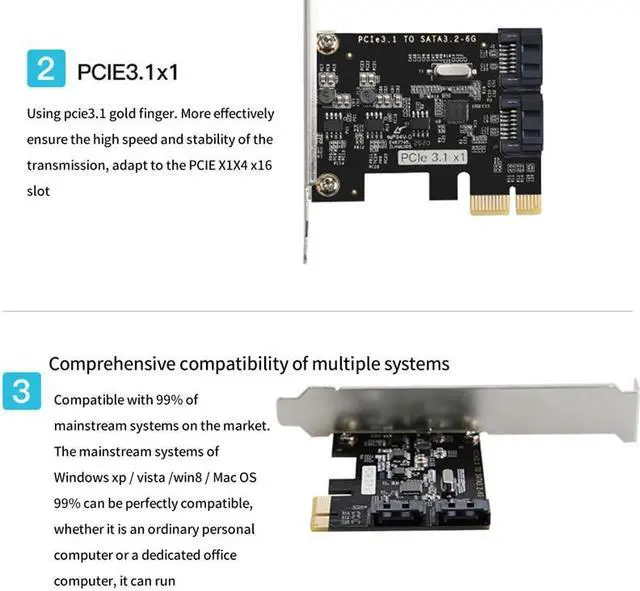

System and Cable Requirements: PCI Express enabled computer with an available PCI Express x1, x4, x8 or x16 slot
Environmental
Humidity 20~80% RH
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Physical Characteristics
Product Height: 120 mm
Product Length: 88 mm
Product Weight: 32 g
Product Width: 22 mm
What's in the Box
Included in Package: 1 X PCIe SATA Controller Card
