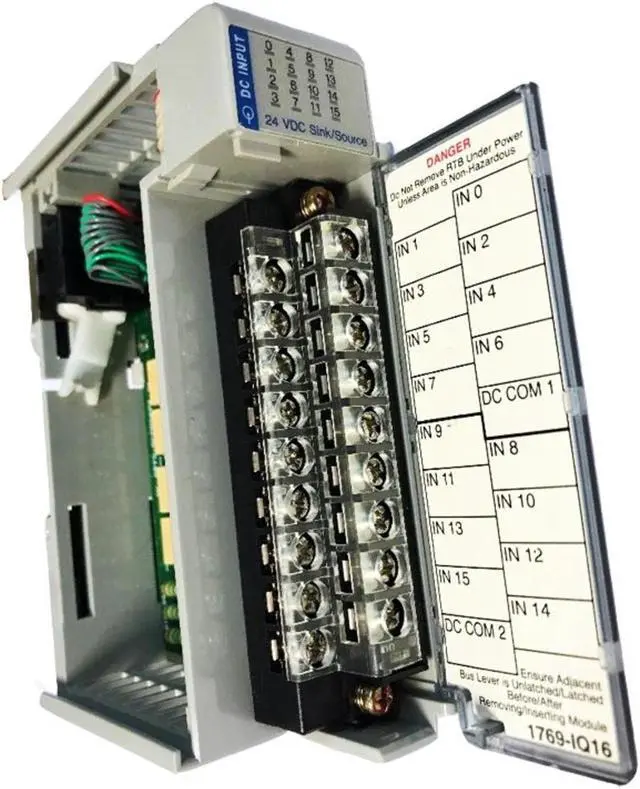

Allen-Bradley 1769-IQ16 CompactLogix 16 Point 24 VDC Sink/Source Input Module, Series A
- "The Allen-Bradley 1769-IQ16 stands as a highly compact and efficient I/O digital DC input module, offering an impressive 16 inputs divided into 8 points per group. Operating within a voltage category of 24V DC, this module accommodates both sink and source configurations, ensuring flexibility in your setup. It functions within a reliable operating voltage range of 10-30V DC at 30°C (86°F) and 10-26.4V DC at 60°C (140°F), making it versatile for various environmental conditions.
- One of its notable features is the hardware delay, which stands at a mere 8 ms (typical) for both OFF to ON and ON to OFF transitions, ensuring swift response times. When in the on-state, an input consumes a minimal 2.0 mA of current, while in the off-state, it exhibits a maximum current draw of 1.5 mA, reflecting its efficiency.
- Considering the broader system, the backplane current at 5V is rated at 115 mA, consuming just 0.58 watts. Moreover, the module exhibits an impressive power supply distance rating of
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
"Number of inputs: 16 (8 points/group)
Voltage category: 24V DC (sink/source)
Operating voltage range: 10-30V DC @ 30 °C (86 °F), 10- 26.4V DC @ 60 °C (140 °F)
Hardware delay: 8 ms (typical) for OFF to ON and ON to OFF transitions
Current,
on-state input: 2.0 mA minimum
Current,
off-state input: 1.5 mA maximum
Backplane current @ 5V: 115 mA ( 0.58 W)
Power supply distance rating: 8 modules"
Voltage category: 24V DC (sink/source)
Operating voltage range: 10-30V DC @ 30 °C (86 °F), 10- 26.4V DC @ 60 °C (140 °F)
Hardware delay: 8 ms (typical) for OFF to ON and ON to OFF transitions
Current,
on-state input: 2.0 mA minimum
Current,
off-state input: 1.5 mA maximum
Backplane current @ 5V: 115 mA ( 0.58 W)
Power supply distance rating: 8 modules"
