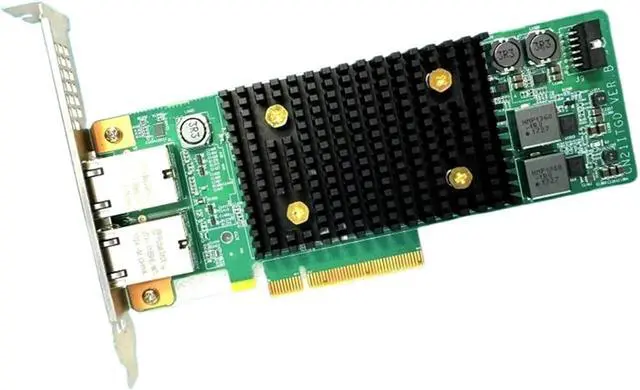

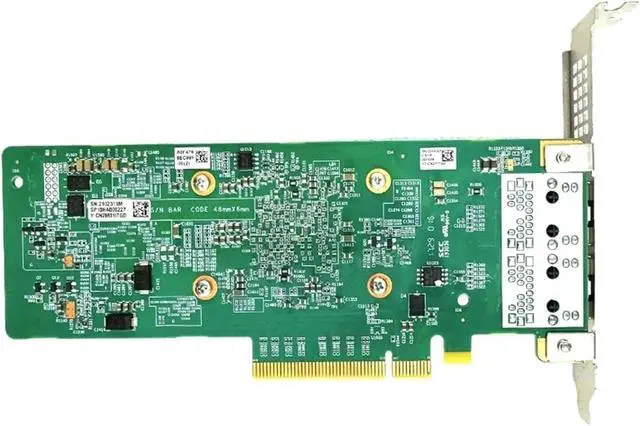

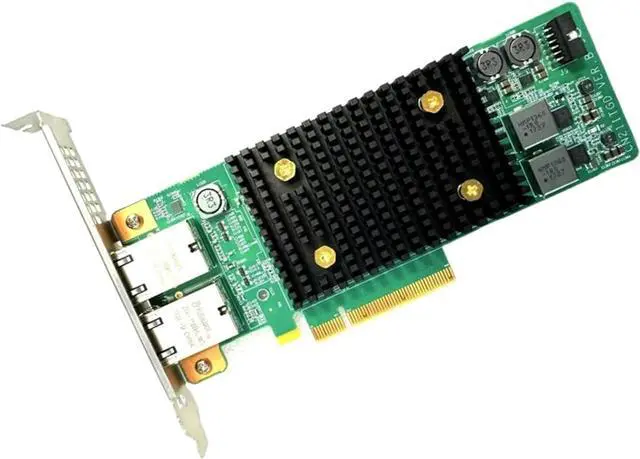

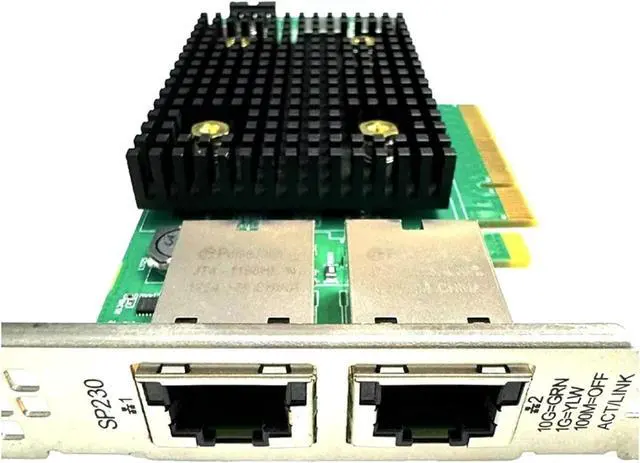

SP230 for X540 10G Chipset PCIe x8 Dual Copper RJ45 10Gbps Port Ethernet Network Card Compatible PCIE-x8 PCIE-X16(Long Bracket)

Network Adapters
10G Gigabit Ethernet Converged Network Adapter with AQC107 Chip
X550-T2
Insuper X540-AT2
X540-T2
X520-DA1
X520-DA2
Data Rate
10 Gb/2.5Gb/1Gb/s
10 Gb/2.5Gb/1Gb/s
10 Gb/1 Gb/100 Mb/s
10 Gb/1 Gb/100 Mb/s
10 Gb/1 Gb/100 Mb/s
10 Gb/1 Gb/100 Mb/s
Port
Single RJ45
Dual RJ45
Dual RJ45
Dual RJ45
Single SFP+
Dual SFP+
PCI-E Lane
X4
X4
X8
X8
X8
X8
Function
Support Intelligent offloads, iSCSI, PXE, VLAN, SR-IOV, Jumbo Frames, DPDK.
Support Intelligent offloads, iSCSI, PXE, VLAN, SR-IOV, Jumbo Frames, DPDK.
Support Intelligent offloads, Windows 10 Teaming, Jumbo Frames, iSCSI, PXE, VLAN, SR-IOV, DPDK
Support Intelligent offloads, Windows 10 Teaming, Jumbo Frames, iSCSI, PXE, VLAN, SR-IOV, DPDK
Support Intelligent offloads, Windows 10 Teaming, iSCSI, PXE, VLAN, SR-IOV, Jumbo Frames, DPDK
Support Intelligent offloads, Windows 10 Teaming, iSCSI, PXE, VLAN, SR-IOV, Jumbo Frames, DPDK
Controller
Aqc107
X550-T2
X540-AT2
X550-T2
82599EN
82599ES
Suppor operating system
Windows 7/8/10/Visa, Windows Server 2008/2012/2016/2019, Linux, FreeBSD* 9 and FreeBSD* 10, UEFI* 2.1, UEFI* 2.3, VMware ESXi 5.1 (Limited Functionality), VMware ESXi 5.5.
Windows 7/8/10/Visa, Windows Server 2008/2012/2016/2019, Linux, FreeBSD* 9 and FreeBSD* 10, UEFI* 2.1, UEFI* 2.3, VMware ESXi 5.1 (Limited Functionality), VMware ESXi 5.5.
Windows 7/8/10/Visa, Windows Server 2003/ 2008/ 2012/2016/2019, Linux, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware ESX/Esxi 6/7, SLSE 11/12,etc.
Windows 7/8/10/Visa, Windows Server 2003/ 2008/ 2012/2016/2019, Linux, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware ESX/Esxi 6/7, SLSE 11/12,etc.
Windows Server 2003/ 2008/ 2012, Windows7/ 8/ Visa, Linux, VMware ESX.
Windows Server 2003/ 2008/ 2012, Windows7/ 8/ Visa, Linux, VMware ESX.
Un-suppor operating system
OS, Bypass Mode
OS, Bypass Mode
OS, Bypass Mode
OS, Bypass Mode
QNAP QSA-308-Series Switch; OS
QNAP QSA-308-Series Switch; OS
10G Multimode SFP+ Module
10G Single mode SFP+ Module
10G SFP+ to RJ45 Module
10G SFP+ DAC Cable 1m
10G SFP+ Cable 3m
10G SFP+ Cable 5m
Data Rate
10 Gb/s
10G
10 Gb/s
10 Gb/s
10 Gb/s
10 Gb/s

300m
10km
30m
0.5m
3m
5m
Fiber Type
MMF
SMF
- Passive Copper Cable
Copper Cable
Copper Cable
X540-T2 dual port 10Gigabit Electric port PCI-E network card YZCA-00311-101. On the PC desktop motherboard, it can be plugged into PCIE X16 slot, Or pcie X8 slot.
NOTE:
1\<;sp230>10G network card, high operating temperature, hands. If you are a home computer, fan installation is recommended
2\the compatibility between 10G network card and some motherboards needs to be tested.
3\ incompatible motherboard generally can not start or enter the system is not recognized.
4 \desktop mainboard is preferentially used with PCIE x 8/x16 slot managed by Nanqiao.
5\ about the X540 network card: Win 7 Win8 Win 10 11 requires an installed driver.( Note!!! PC Not supported !!!To install Linux, you need a professional. If you don't understand, don't buy!!!)
6\ Support system : Windows Server 2012, 2012R2,2016,2019,2022.
VMware Esxi 6.5 /VMware Esxi 6.7 / (VMware Esxi 7.0 Not used)
Redhat 7.6 64bit/Redhat 7.7 64bit/Redhat 7.8 64bit/Redhat 7.9 64bit/Redhat 8.1 64bit/Redhat 8.2 64bit/Redhat 8.3 64bit/Suse 12.5 64bit/Suse 15.2 64bit/Suse 15.3 64bit/Ubuntu Desktop 18.04 64bit/Ubuntu Desktop 20.04 64bit.
7\ Use experience sharing. B75 /B85/AMD B550 / H67 Ryzen 5 4600G / ASUS B550M-PLUSCannot be used.( J3160,B360,Q370,X570E,H410,X58,X99,C612,Z97,HPZ440,Asus X470, Validation can be used.)
8\Order carefully select the corresponding baffle!!!!!
Frequency : None
Heat dissipation : Support
Wireless Communication Standard : 802.11.a
