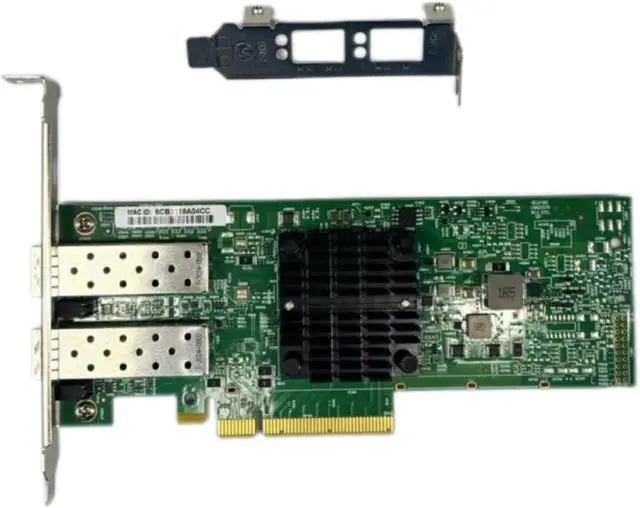

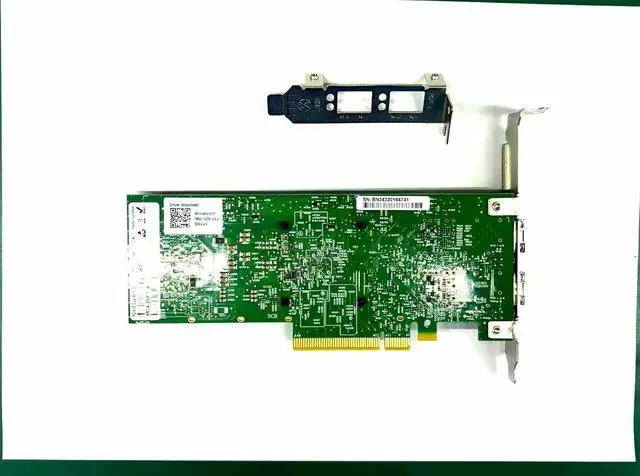

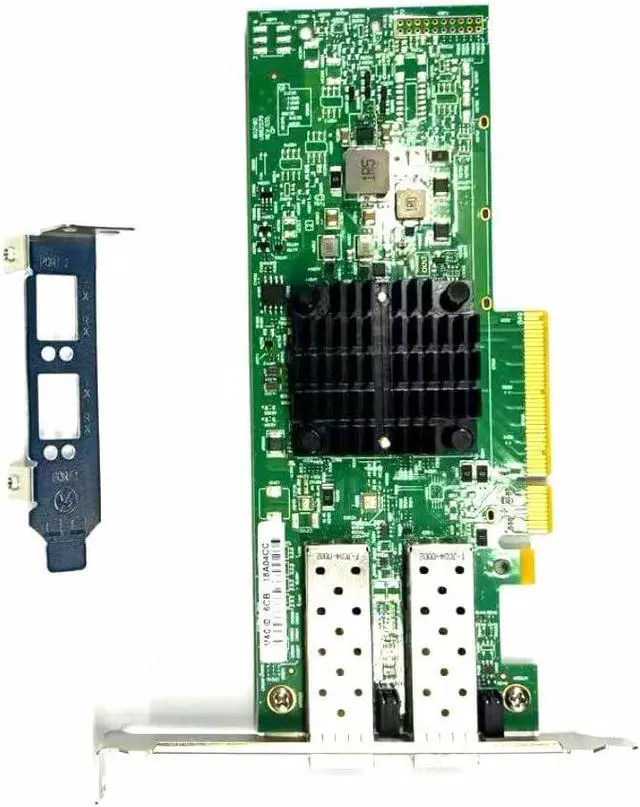

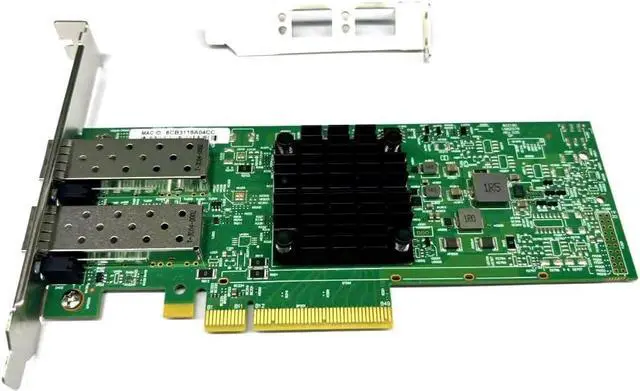

PCIeX8 25G Dual Port SFP28 Ethernet Network Adapter (Based on Broadcom BCM57414B)
- Model 9574-2SFP28 Controller Broadcom BCM57414B Cable Media Fiber Optic Cable type OM2 5M Barrier height full height and half height configuration
- Power consumption (min) 14.148 W Power consumption (max) 22.512W Port type 2 25G SFP28 PCIe bus PCIe 3.0 (8.0GT/s) x8; Compatible with x16
- Port speed of 1Gbps; 10Gbps 25Gbps Power supply PCIe power supply ESD contact discharge ± 4KV
- Compliant with IEEE 802.3by and 25GEtherinet.org specification compliance PXE support No UEFI support Yes WoL supports No Giant frame support Yes SRIOV supports Yes 1588 PTP support Yes Giant data frame Max 9.2KB
- Working environment temperature -10 to 55 (14 to 131 ) Storage temperature -40 to 70 (-40 to 158 ) Storage humidity: 90% non condensing relative humidity at 35 Certification FCC, CE, RoHS Product size (unit: mm) 167.68 * 68.69 * 1.6
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model 9574-2SFP28 Controller Broadcom BCM57414B Cable Media Fiber Optic Cable type OM2 5M Barrier height full height and half height configuration
Power consumption (min) 14.148 W Power consumption (max) 22.512W Port type 2 25G SFP28 PCIe bus PCIe 3.0 (8.0GT/s) x8; Compatible with x16
Port speed of 1Gbps; 10Gbps 25Gbps Power supply PCIe power supply ESD contact discharge ± 4KV
Compliant with IEEE 802.3by and 25GEtherinet.org specification compliance PXE support No UEFI support Yes WoL supports No Giant frame support Yes SRIOV supports Yes 1588 PTP support Yes Giant data frame Max 9.2KB
Working environment temperature -10 to 55 (14 to 131 ) Storage temperature -40 to 70 (-40 to 158 ) Storage humidity: 90% non condensing relative humidity at 35 Certification FCC, CE, RoHS Product size (unit: mm) 167.68 * 68.69 * 1.6
Power consumption (min) 14.148 W Power consumption (max) 22.512W Port type 2 25G SFP28 PCIe bus PCIe 3.0 (8.0GT/s) x8; Compatible with x16
Port speed of 1Gbps; 10Gbps 25Gbps Power supply PCIe power supply ESD contact discharge ± 4KV
Compliant with IEEE 802.3by and 25GEtherinet.org specification compliance PXE support No UEFI support Yes WoL supports No Giant frame support Yes SRIOV supports Yes 1588 PTP support Yes Giant data frame Max 9.2KB
Working environment temperature -10 to 55 (14 to 131 ) Storage temperature -40 to 70 (-40 to 158 ) Storage humidity: 90% non condensing relative humidity at 35 Certification FCC, CE, RoHS Product size (unit: mm) 167.68 * 68.69 * 1.6
