EX-60114 4-Port 2.5Gigabit PCIe Network
- Supports 10/100/1000/2500 Base-T Ethernet standard
- Supports 1-Lane 2.5/5Gbps PCI Express Bus
- Wake-on-LAN and RealWoW technology
- LED display of data transmission
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
4 Port2.5 Gigabit PCIe Network Card

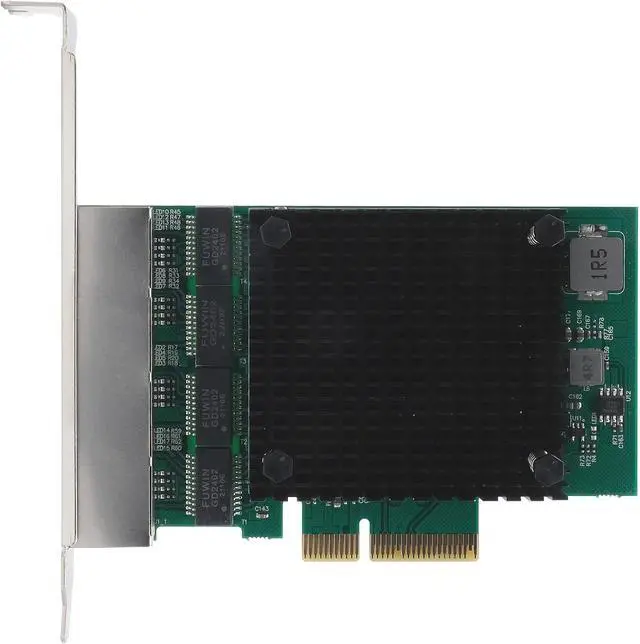

The EX-60114 is a 2.5 Gigabit Ethernet card with four RJ45 ports for the PCIe bus. It supports Half and Full Duplex as well as NWay Auto-Negotation to automatically adjust the speed in the network (10/100/1000/2500 Mbps). adjustment.
Furthermore, the card is equipped with Auto-MDI/MDI-X and offers extensive support for various operating systems.

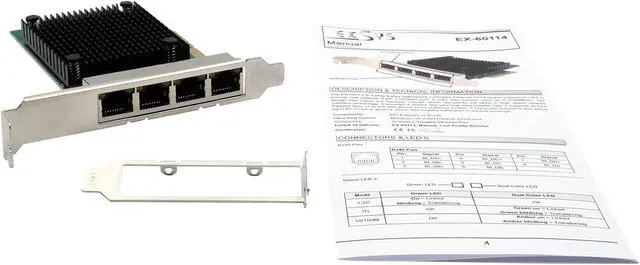

The card comes with a low profile bracket for installation in a narrow PC case.
Supports 10/100/1000/2500 Base-T Ethernet standard
Supports 1-Lane 2.5/5Gbps PCI Express Bus
Fully compatible with PCI Express version 2.1
Supports 2.5G Lite (1G data transfer rate) mode.
Supports Jumbo Frame up to 16KBytes, Pair Swap/Polarity/Skew Correction
Auto-negotiation with Extended Next Page (XNP) capability
Supports Auto-MDI/MDI-X car (for crossover cable)
Hardware ECC and CRC function.
Supports IEEE 802.3az-2010 Energy Efficient Ethernet (EEE)
Microsoft NDIS5, NDIS6 (IPv4, IPv6, TCP, UDP) support for checksums and segmentation task offload (Large Send and Giant Send)
Supports IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.1Q VLAN tagging and IEEE 802.1ad Double VLAN
Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports Virtual Machine Queue (VMQ for Windows Server Hyper-V installed system
Wake-on-LAN and 'RealWoW!' Remote Wake-Up Technology
LED display for data transfer mode.
Supports low profile for slim PC cases with 8 cm height
Chip Set: Realtek RTL8125B
The EX-60114 is a 2.5 Gigabit Ethernet card with four RJ45 ports for the PCIe bus. It supports Half and Full Duplex as well as NWay Auto-Negotation to automatically adjust the speed in the network (10/100/1000/2500 Mbps). adjustment.
Furthermore, the card is equipped with Auto-MDI/MDI-X and offers extensive support for various operating systems.
The card comes with a low profile bracket for installation in a narrow PC case.
Supports 10/100/1000/2500 Base-T Ethernet standard
Supports 1-Lane 2.5/5Gbps PCI Express Bus
Fully compatible with PCI Express version 2.1
Supports 2.5G Lite (1G data transfer rate) mode.
Supports Jumbo Frame up to 16KBytes, Pair Swap/Polarity/Skew Correction
Auto-negotiation with Extended Next Page (XNP) capability
Supports Auto-MDI/MDI-X car (for crossover cable)
Hardware ECC and CRC function.
Supports IEEE 802.3az-2010 Energy Efficient Ethernet (EEE)
Microsoft NDIS5, NDIS6 (IPv4, IPv6, TCP, UDP) support for checksums and segmentation task offload (Large Send and Giant Send)
Supports IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.1Q VLAN tagging and IEEE 802.1ad Double VLAN
Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports Virtual Machine Queue (VMQ for Windows Server Hyper-V installed system
Wake-on-LAN and 'RealWoW!' Remote Wake-Up Technology
LED display for data transfer mode.
Supports low profile for slim PC cases with 8 cm height
Chip Set: Realtek RTL8125B
