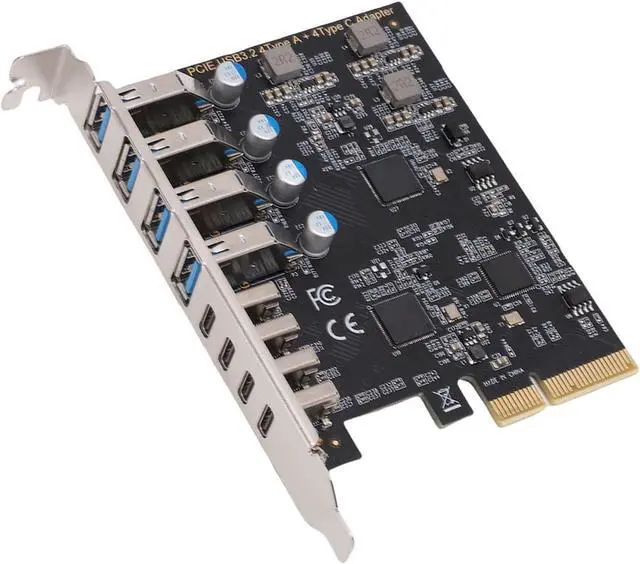

FILFEEL PCIe to USB 3.2 Gen 2 Expansion Card 8-Port Internal Adapter with 4X + 4X USBA, 10Gbps Bandwidth, Supports 10/11 MacOS, Low Design for Desktop PC

Reliable Internal Architecture: This PCIe to USB 3.2 Gen 2 card uses a reinforced 6-layer PCB with EMI-shielded traces and gold-plated USB connectors to minimize loss and electromagnetic interference; its passive cooling design ensures sustained 10Gbps performance under continuous load, and internal PCIe slot mounting eliminates cable strain, port , and intermittent disconnects commonly associated with USB extension cables or externally powered

High-Performance USB 3.2 Gen 2 Connectivity: This PCIe to USB 3.2 Gen 2 card delivers true 10Gbps bandwidth per lane using the ASM3142+VL822 controller chipset, enabling ultra-fast data transfers for external SSDs, high-resolution webcams, and professional interfaces; supports simultaneous of 8 ports with intelligent bandwidth allocation, and maintains full backward compatibility with USB 3.0/2.0 devices without driver conflicts on 10/11, , and

Optimized Compatibility and Utility: This PCIe to USB 3.2 Gen 2 card is rigorously tested across 50+ mainstream desktop platforms including , , , and motherboards with 300700 series and B450X670 chipsets; supports hot-plug detection, USB suspend/resume, and boot device recognitionmaking it suitable for NAS expansion, VR development labs, digital signage controllers, and dual-boot workstation environments without compromi

1. EXPAND TYPE C CONNECTIVITY: This PCIe to USB 3.2 Gen 2 card adds 4 USB Type C and 4 USB Type A ports to your desktop, supporting 10Gbps data transfer speeds. Ideal for connecting external storage, VR headsets, or gaming controllers, it enhances your PC's connectivity without requiring external power.

2. FAST DATA TRANSFERS: The PCI express expansion card delivers USB 3.2 Gen 2 speeds up to 10Gbps, transferring a 2GB file in just 1.6 seconds. Note: Bandwidth is shared when multiple ports are used simultaneously, and it does not support PD fast charging, video signal transmission (DisplayPort, High Definition Multimedia Interface, VGA display conversion), or the Type C support for Thunderbolt protocol .

3. PLUG AND PLAY: For users running support for 10 or higher, this USB 3.2 Gen 2 PCIe card offers a easy installation experience with plug and play functionality, supports for , for and for OS X systems, suitable for PCIe x4, x8, or x16 slots. Note: In PCIe 2.0 systems, the maximum transfer rate may be lower than in PCIe 3.0 or later versions.

4. STABLE AND EASY TO USE: This USB expansion card connects internally via the PCI Express slot without requiring external power, ensuring a stable connection and enhanced data transfer speeds. It eliminates disconnection issues commonly faced with external USB hubs.

5. SIMPLE INSTALLATION PROCESS: Installing the USB expansion card is quick and easy. Ensure your computer is powered down before installation. Simply insert the card into the PCIe slot, secure it with screws, and for narrow cases, use the included low profile bracket, while exercising caution with sharpened edges when removing the case.



Specification:

Item Type: PCIe to USB 3.2 Gen 2 Card

Material: PCB



Controller Chip: ASM3142+VL822+VL822

Bus Type: PCIe

Interface Specification: USB3.2 Gen 1+USB3.0

USB Interface: Front Interface: 4x Type C+4x Type A

System Compatibility:

Support for system

Support for Linux system

Support for OS X system

Bandwidth: 10Gbps



How to Use:

Simply take out the product and it's ready to use.



Package List:

1 x PCIe To USB 3.2 Gen 2 Card



Notice:
FILFEEL PCIe to USB 3.2 Gen 2 Expansion Card 8-Port Internal Adapter with 4X + 4X USBA, 10Gbps Bandwidth, Supports 10/11 MacOS, Low Design for Desktop PC
