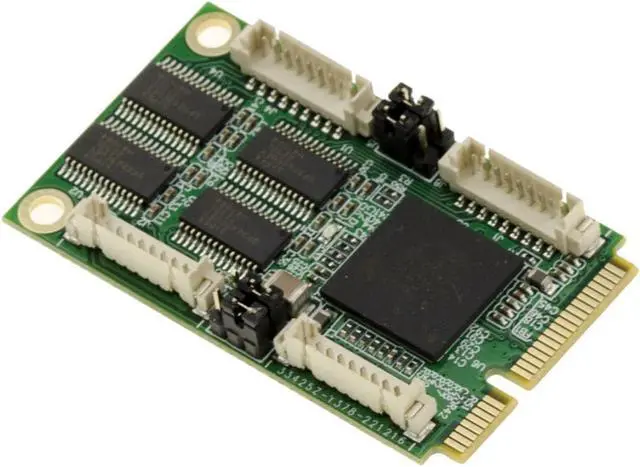

Mini PCI Express (MiniPCIE) Control Board - 4 RS232 COM Ports - DB9 Plugs - XR17V354 EXAR CHIPSET
- Mounts to the mini PCI Express port of laptops (52 pins); Drivers for Windows 11, 10, 8.1, 8, Windows 7 / Vista / XP / Server 2003-2008 32/64-bit, Linux Kernel 2.6x or higher
- PCIe 2.0 Compatible with MiniPCIe "full" or "Mini". Compatible with the specifications "PCI-E Mini Card Electromechanical specification revision 1.2". Chipset Exar 17V354
- RS232 INTERFACE: 4 COM RS232 ports Standard UART FIFO 256 bits Maximum transfer per port 230.4Kbps Voltage adjustment on DB9 plugs by jumper on the card: 5V, 12V or RI signal Compatible with formats 7 and 8 "data bits". Compatible with "Even", "Odd" parities. "None", "Space", "Mark". Compatible with 1 or 2 "Stop Bit" 15KV ESD protection on each port. Supports sleep

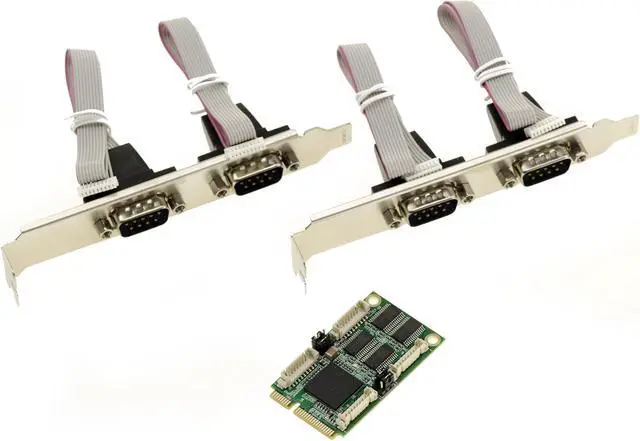

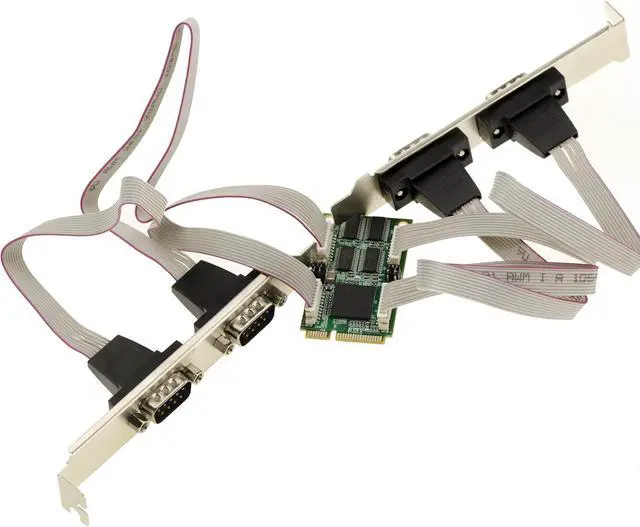

- Card supplied with 2 extension brackets each supporting 2 COM ports (Db9 male plugs).
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Use:
Mounts to the mini PCI Express port of laptops (52 pin).
Compatibility:
Drivers for Windows 11, 10, 8.1, 8, Windows 7 / Vista / XP / Server 2003-2008 32/64-bit, Linux Kernel 2.6x or higher.
Specifications:
PCIe 2.0
Compatible with MiniPCIe "full" or "Mini".
Compatible with the specifications "PCI-E Mini Card Electromechanical specification revision 1.2".
EXAR CHIPSET 17V354.
RS232 INTERFACE:
4 x RS232 COM ports.
UART standard,
256-bit FIFO,
Maximum transfer per port 230.4Kbps,
Adjusting the voltage on the DB9 plugs by jumper on the board: 5V, 12V or RI signal,
Compatible with 7 and 8 data bit formats,
Compatible with parities "Even", "Odd", "None", "Space", "Mark",
Compatible with 1 or 2 "Stop Bit",
15KV ESD protection on each port.
Supports sleep
Card supplied with 2 extension brackets each supporting 2 COM ports (Db9 male plugs).
Mounts to the mini PCI Express port of laptops (52 pin).
Compatibility:
Drivers for Windows 11, 10, 8.1, 8, Windows 7 / Vista / XP / Server 2003-2008 32/64-bit, Linux Kernel 2.6x or higher.
Specifications:
PCIe 2.0
Compatible with MiniPCIe "full" or "Mini".
Compatible with the specifications "PCI-E Mini Card Electromechanical specification revision 1.2".
EXAR CHIPSET 17V354.
RS232 INTERFACE:
4 x RS232 COM ports.
UART standard,
256-bit FIFO,
Maximum transfer per port 230.4Kbps,
Adjusting the voltage on the DB9 plugs by jumper on the board: 5V, 12V or RI signal,
Compatible with 7 and 8 data bit formats,
Compatible with parities "Even", "Odd", "None", "Space", "Mark",
Compatible with 1 or 2 "Stop Bit",
15KV ESD protection on each port.
Supports sleep
Card supplied with 2 extension brackets each supporting 2 COM ports (Db9 male plugs).
