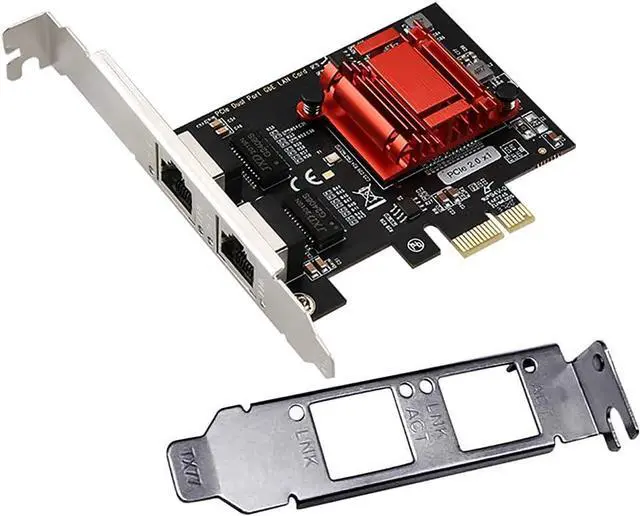

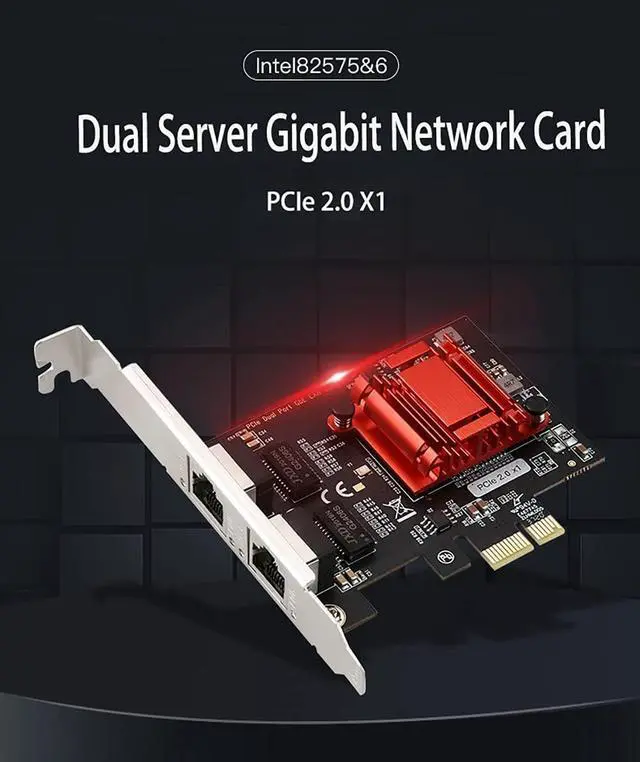

Dual-Port PCIe Gigabit Network Card 1000M PCI Express Ethernet Adapter with In-tel 82575/82576 Two Ports LAN NIC Card for Support PXE for Windows/Windows Server/Linux/Freebsd/DOS with Low Profile
- Supports Windows 7/8/2000/XP/Vista/Windows Server 2003/2008/2012; Novell Netware 5.x/6.x; Linux; FreeBSD 7.x or later; DOS; SCO Open Server; UnixWare / OpenUnix 8; Sun Solaris x86; OS Independent Vmware ESX (Does not support VMware ESXi 7.0 or above)

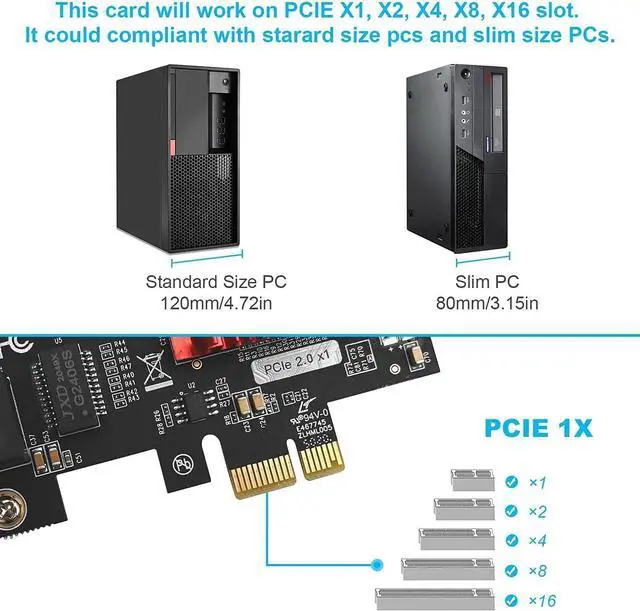

- PCI Express 2.1. 2.5 GT/s x1 Lane. Compatible with x1, x2,x4, x8, x16 standard and low-profile PCI Express slots.
- Compatible with IPMI pass-through (SMBus or NC-SI), iSCSI boot, WoL, PXE remote boot, VLAN filtering
- Support Network Management Protocol (SNMP) and Remote Network Monitoring (RMON).
- Imported alloy heat sink , can effectively remove excess heat , keep the network card at normal operating temperature and double stable operation
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PCIe Gigabit Network Card adds two 10/100/1000 Mbps compatible RJ45 Ethernet ports to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3 /u/ab standards, and with support for 9.5K Jumbo Frames, VLAN tagging, this Gigabit NIC Adapter offers effective network performance
Features
PCIe base specifiatication 2.0 ( 2.5GT /S) or (5GT/s)
Two 10/100/1000 Mbps compatible RJ45 Ethernet ports

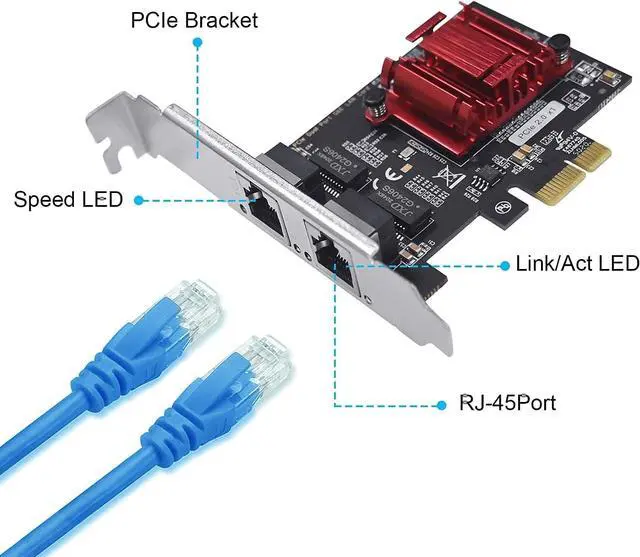

Link and Activity LED indicators
Full and half duplex support
PXE network boot support
Complies with dual port 1GbE PHY device
MDI (Copper) standrd IEEE 802.3 Ethernet interface for
1000BASE-T, 100BASE-TX, and10BASE-T application( 802.3, 802.3 u, and 802.3 ab)
Fully Compliant with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x and IEEE 802.3 ab standards
PCI Bus Power Management interface Specification Rev 1.2
Max 9.5KB of jumbo frames supported
Flow control supports: send/receive PAUSE frames and receive FIFO thresholds
Statistics for management and RMON
Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3 x Fully Duplex Flow Control
64-bit address support for systems using more than 4GB of physical memory
IPv6 wake-up filters
TCP segmentation offload: up to 256KB
IPv6 support for IP/TCP and IP/UDP receive checksum offload
Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
Receive packet split header
DCA support
Support for Virtual Machines device queues
Supports OS: Linux, FreeBSD /Server 2003/ Win 7/ Win 8/ Win 8.1 / Server 2012 / Server 2016 / Win10 32 / 64bit
Packing list
1xPCIE 1G LAN Card
1x Low profile Bracket
Compliant with IEEE 802.3 /u/ab standards, and with support for 9.5K Jumbo Frames, VLAN tagging, this Gigabit NIC Adapter offers effective network performance
Features
PCIe base specifiatication 2.0 ( 2.5GT /S) or (5GT/s)
Two 10/100/1000 Mbps compatible RJ45 Ethernet ports
Link and Activity LED indicators
Full and half duplex support
PXE network boot support
Complies with dual port 1GbE PHY device
MDI (Copper) standrd IEEE 802.3 Ethernet interface for
1000BASE-T, 100BASE-TX, and10BASE-T application( 802.3, 802.3 u, and 802.3 ab)
Fully Compliant with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x and IEEE 802.3 ab standards
PCI Bus Power Management interface Specification Rev 1.2
Max 9.5KB of jumbo frames supported
Flow control supports: send/receive PAUSE frames and receive FIFO thresholds
Statistics for management and RMON
Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3 x Fully Duplex Flow Control
64-bit address support for systems using more than 4GB of physical memory
IPv6 wake-up filters
TCP segmentation offload: up to 256KB
IPv6 support for IP/TCP and IP/UDP receive checksum offload
Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
Receive packet split header
DCA support
Support for Virtual Machines device queues
Supports OS: Linux, FreeBSD /Server 2003/ Win 7/ Win 8/ Win 8.1 / Server 2012 / Server 2016 / Win10 32 / 64bit
Packing list
1xPCIE 1G LAN Card
1x Low profile Bracket
