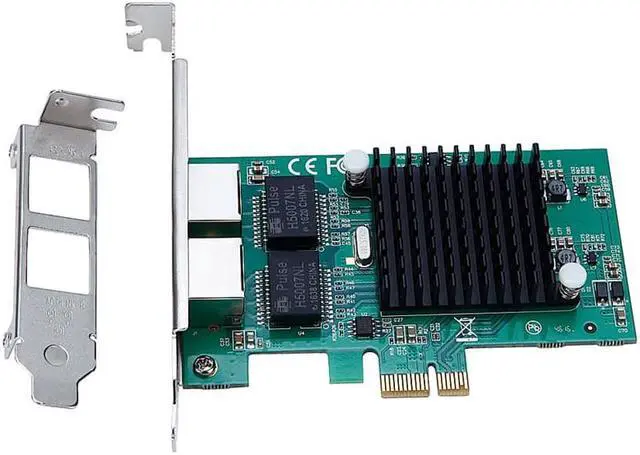

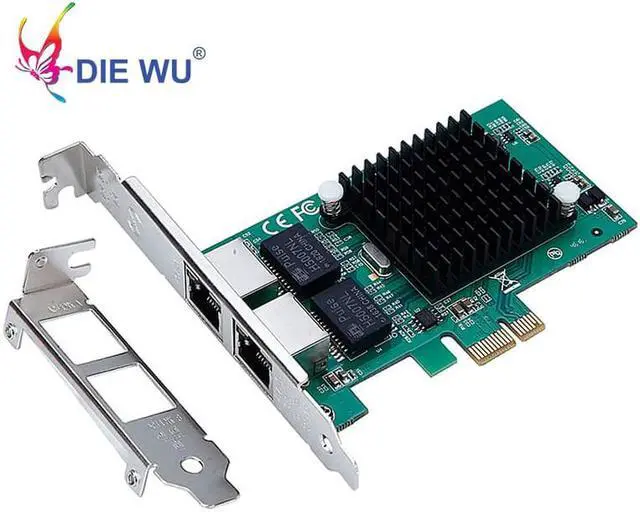

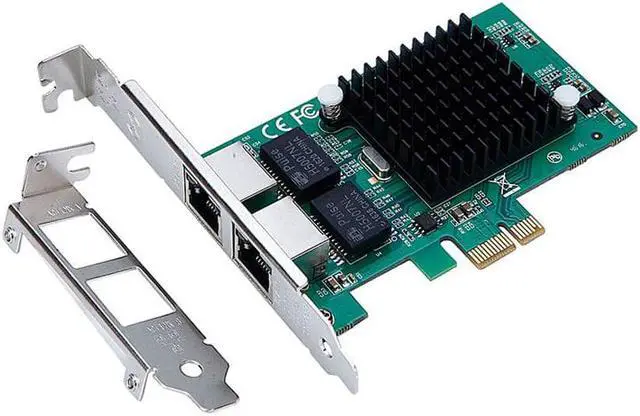

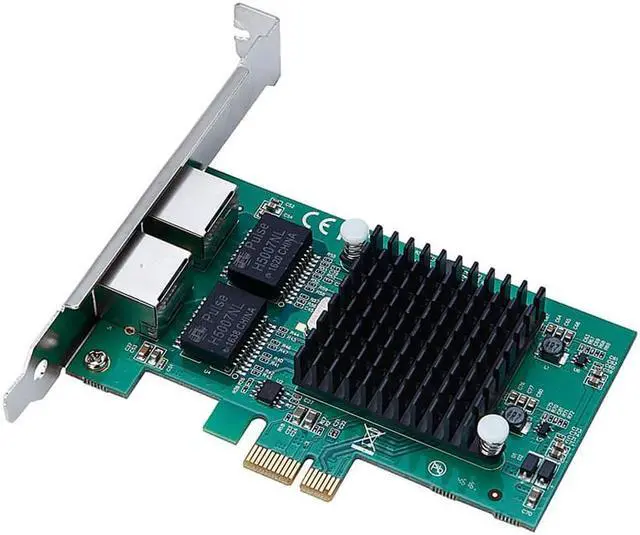

PCIe x1 Dual Port RJ45 10/100/1000Mbps Gigabit Network Server Adapter Card NIC Intel 82575/6 Chipset with Short Bracket TXA020

PCIe x1 Dual Port RJ45 10/100/1000Mbps Gigabit Network Server Adapter Card NIC Intel 82575/6 Chipset with Short Bracket TXA020

Model number: TXA020


Chipset: Intel ®82575 Gigabit Controller


Port number: 2* RJ45


Standard: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 x


Data rate: 10/100/1000Mbps


Interface: PCI-Express 1x slot


LED Indicator: 4LED 10/100/1000Mbps(Link/Act)


Dimension: 105.5 * 68.6 * 17.5 mm


Support OS: Microsoft Windows Server 2003, Enterprise, Datacenter (32- and 64-bit), Microsoft Windows 2000, Red Hat Linux 2.4 x or later (32- and 64-bit), FreeBSD 4. x or later, Novell Netware 5. x, 6. x, Sun Solaris x86, OS 8 and later, SCO Open Server 5, Open UNIX 8


Environment: Operating Temperature: 0 -55


Relative Humidity: 10%-90%(non-condensing)


Storage Temperature: -0-80


Relative Humidity: 5%-90%(non-condensing)






Features:




Load balancing on multiple CPUs


Interrupt moderation


Compatible with x4, x8, and x16 full-height PCI Express slots


Support for most network operating systems (NOS)


Remote management support


Category-5 unshielded twisted pair (UTP), 4-pair cabling


RoHS compliant, lead-free technology


Intel PRO Set Utility for Microsoft Device Manager


Advanced cable diagnostics


Intel backing



Package: 1 * Intel 82575 PCI-E x1 Server Network Adapter 1 * 2U Short baffle 1 * Driver CD
