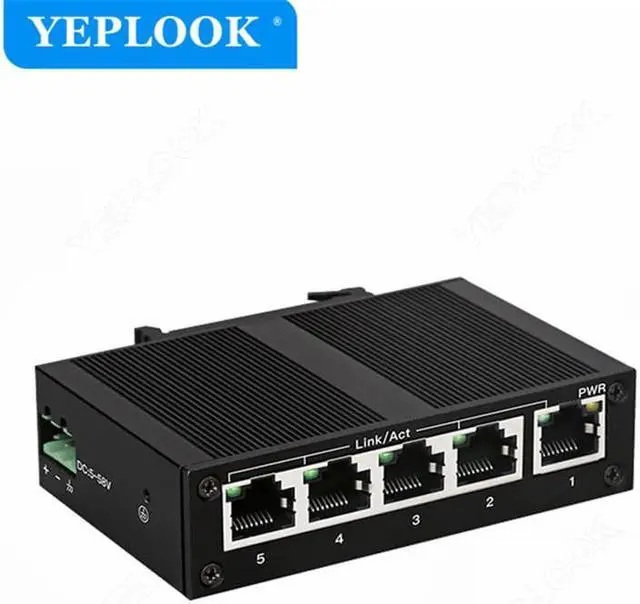

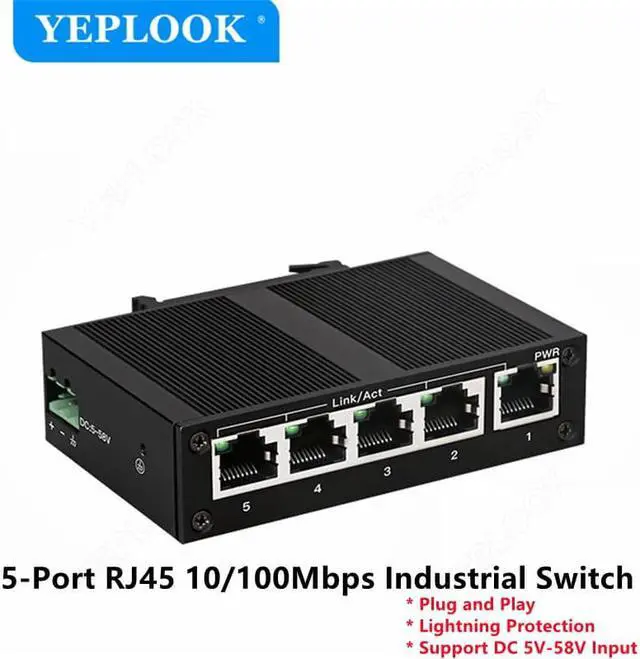

5 Ports RJ45 10/100Mbps Industrial Switch, Ethernet Network Switch, Support DC 5V-58V Input, Plug and Play, Lightning Protection

5 Ports RJ45 10/100Mbps Industrial Switch, Ethernet Network Switch, Support DC 5V-58V Input, Plug and Play, Lightning Protection


Description:

Chipset: IP175GH

Supported standards and protocols: IEEE 802.3, IEEE 802.3 i, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 az

Interface: 5x RJ45 ports 10/100Mbps adaptive (Auto MDI/MDIX)

Network media: 10Base-T: Class 3 or above UTP;

100Base TX: Class 5 UTP and above


Transmission mode: store and forward

MAC address capacity: 1K

Switching capacity: 1Gbps

Packet forwarding rate: 744Kpps

Indicator light: each: Power (yellow);

Per port: Link/Act (green)

Power supply:
DC: 5-58V, 3-core Phoenix terminal, power polarity reverse connection protection

Power consumption: maximum: 0.7W

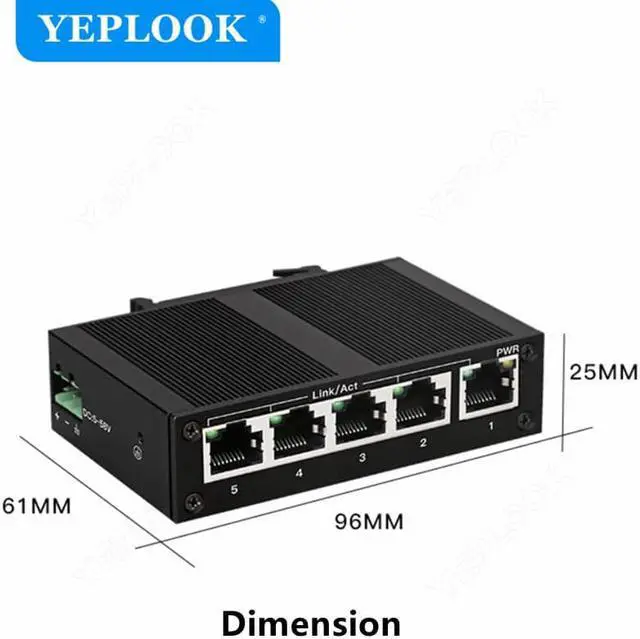

Boundary dimension (LxWxH): 96 * 61 * 25.3 mm



Operating environment:

Operating temperature: - 40 ~75

Storage temperature: - 40 ~75

Operating humidity: 10%~90% RH non condensing

Storage humidity: 5%~90% RH, non condensing
