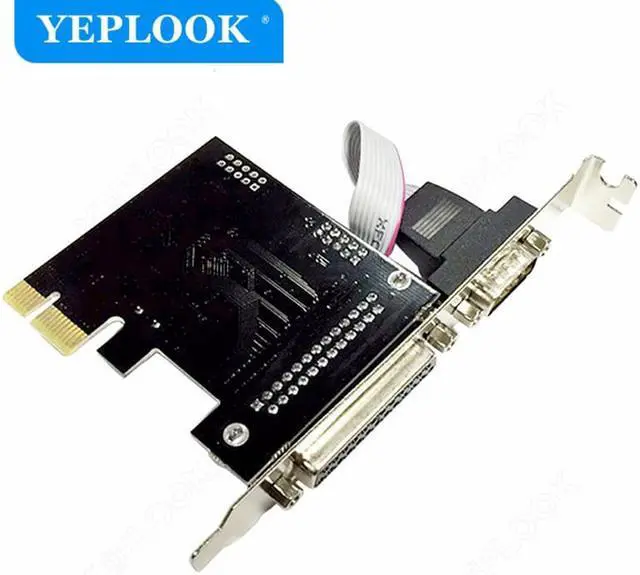

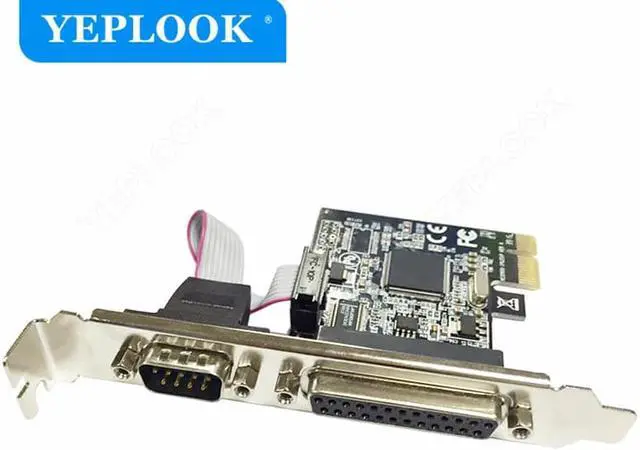

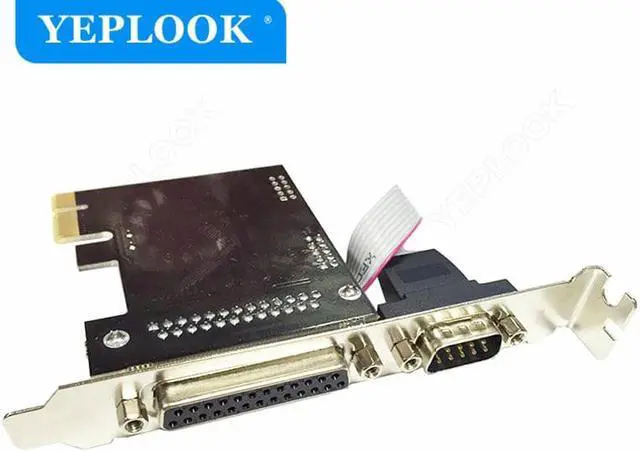

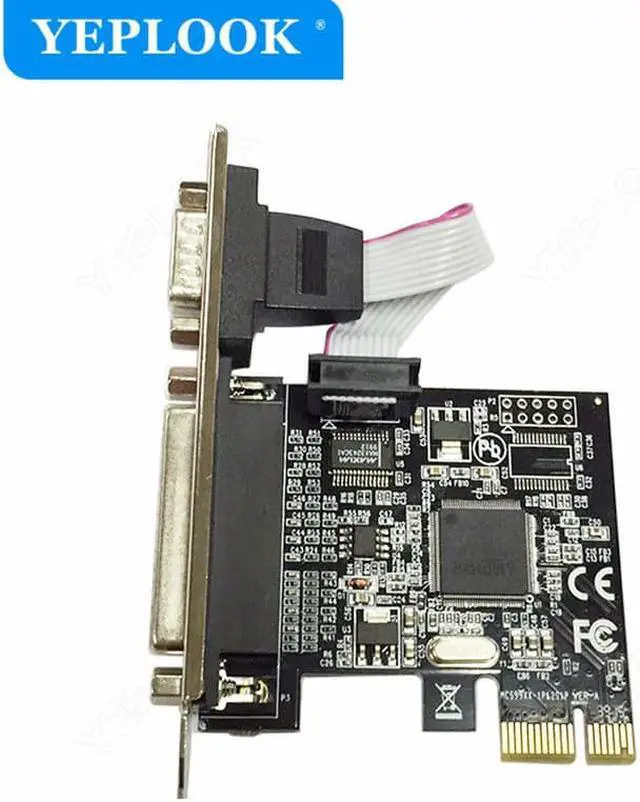

PCIe to Single Port DB9+DB25 PCI-E X1 RS232 Serial Port + LPT Parallel Port Expansion Card Riser Card Chip ASIX/AX99100

PCIe to Single Port DB9+DB25 PCI-E X1 RS232 Serial Port + LPT Parallel Port Expansion Card Riser Card Chip ASIX/AX99100


Description:



Model number: DW-TXB075

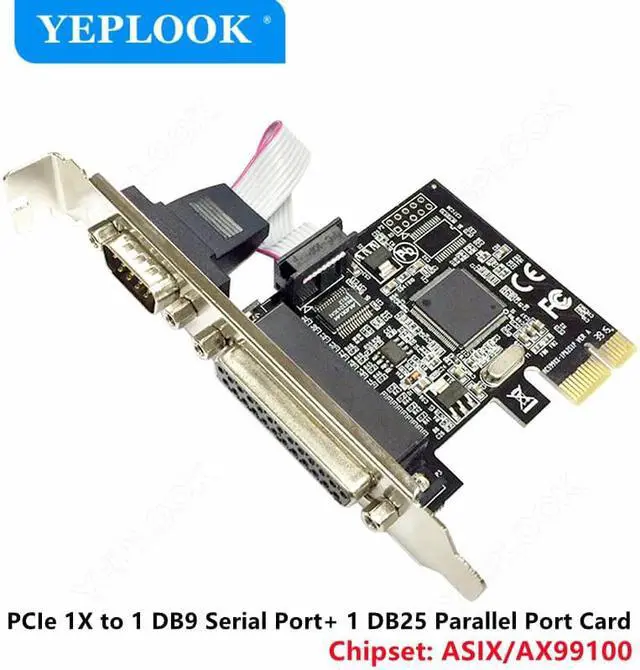

Chipset: ASIX/MCS99100

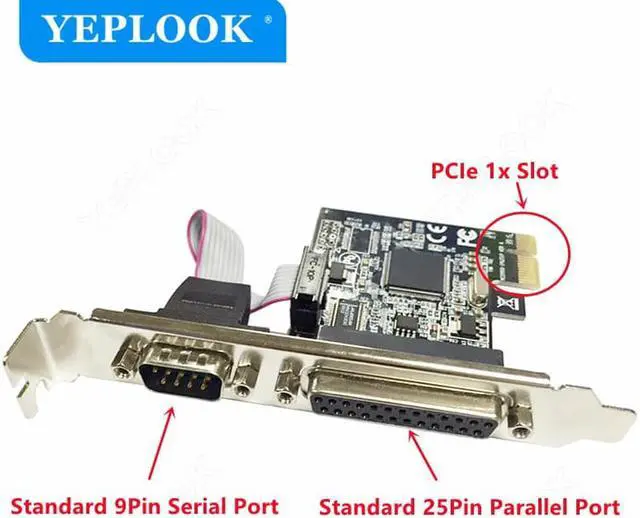

Port number: 1* Serial port, 1*Parallel port


Interface: PCI Express 1x slot


Dimension: 65*60*14mm




Support OS


Windows®10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000


Windows Server® 2012, 2008 R2, 2003(32/64)


Mac OS® 10. x (Intel based, tested up to 10.9 )


Linux 2.4. x and later (Tested up to 3.5 )





Environment:


Operating Temperature: 0 -50


Relative Humidity: 10%-90%(non-condensing)


Storage Temperature: -0-80


Relative Humidity: 5%-90%(non-condensing)






Features




Serial Port:


Supports RS232, RS485 & RS422 modes


Bi-directional speeds from 50 bps to 16 Mbps/Port


Full Serial modem control


Supports Hardware, Software flow control


5, 6, 7, 8 and 9-bit Serial format support


Even, Odd, None, space & Mark parity supported


Custom BAUD Rates supported with external clock or by programming internal PLL


On Chip 256 Byte depth FIF
Os in Transmit, Receive path of each Serial Port


Supports remote wake up and power management features


Serial Port transceiver shutdown support


Supports Slow IrDA on all Serial Ports IEEE1284





Parallel Port:


IEEE 1284 compliant parallel port interface, supporting SPP/PS2/EPP/ECP modes and centronics interface


Faster data rates up to 1.5M bps for parallel port
