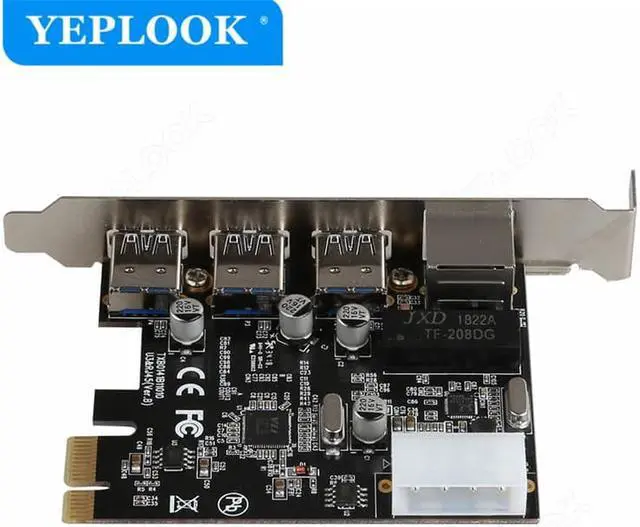

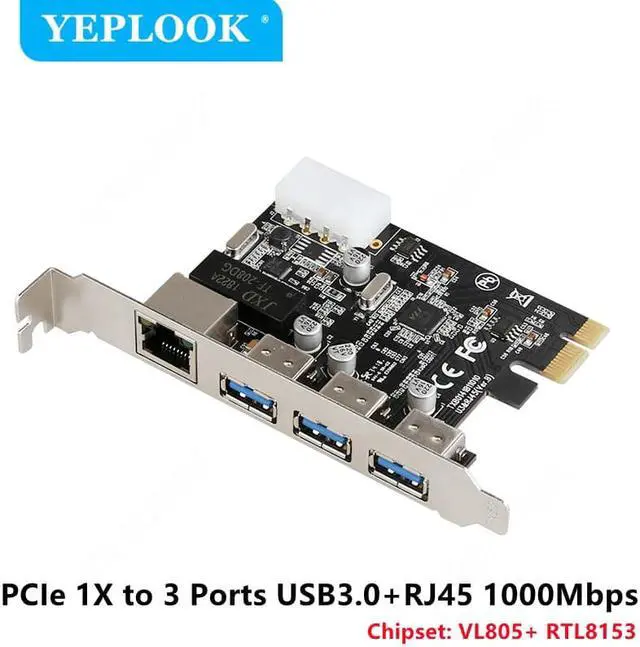

PCIe 1X to 3 Ports USB3.0 + RJ45 1000Mbps LAN Gigabit Ethernet Network Card with 4Pin Power Supply Connector for Desktop PC

PCIe 1X to 3 Ports USB 3.0 + RJ45 1000Mbps LAN Gigabit Ethernet Network Card with 4Pin Power Supply Connector for Desktop PC



Description:



3 ports USB 3.0 + RJ45 port Hybrid PCI Express Controller Card supports all existing USB devices and 1000M Lan


Chipset: VLI VL805 + Realtek RTL8153.

Plug & play and hot swapping capability.

Date transfer rate up to 5.0G bps / 625MB/s.

10/100/1000M data transfer rate auto-negotiation for RJ45 port.

3 external USB 3.0 type A female connectors & 1 Gigabit Ethernet RJ45 port.


Bus-powered mode and no external power required for most of peripherals.

4 pin power connector available for some high current consumption peripherals, like drives.

Support for multiple network operating systems, can provide more than the previous year higher performance PCI card, lower CPU utilization, better compatibility

Easy plug-and-play installation will automatically obtain IPQ and I/O addresses.

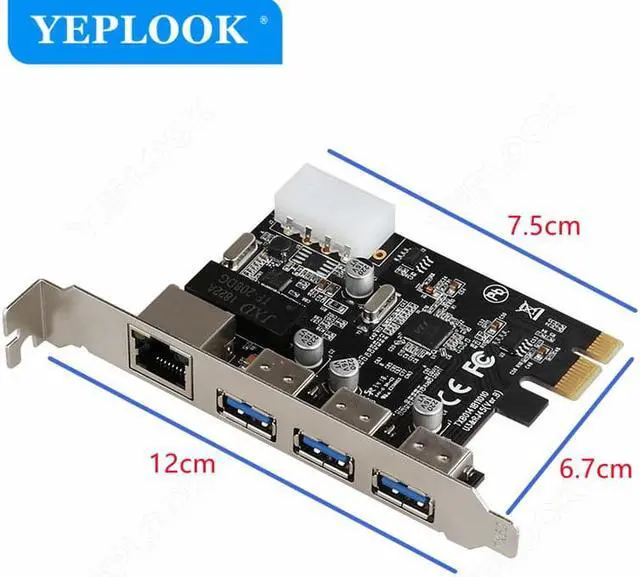

Size: approx. 120x75x67mm/ 4.72 x 2.95 x 2.64 in




Package list: PCIe 1X 3 Ports USB 3.0 + RJ45 LAN Gigabit Ethernet Network Cardx1, Driver CD x1



Features:


Compliant with USB 3.0 specification.

Compatible with USB 2.0 & 1.1 specification.

Compliant with IEEE 802.3 ab, 802.3 u & 802.3.

Compliant with Single-Lane (x1) PCI-Express specification revision 1.0 a.


Supports Wake-on-LAN function.

Supports IEEE 802.3 az (Energy Efficient Ethernet).

Supports 2.5G bps PCI-E bus with full duplex channel.

Support 32-bit PCI Specificationatin Revision 2.1 controller card.

Support PCI IPQ sharing-save valuable resources for other expansion cards.

Supports Windows98, 2000, XP, Vista, Windows 7, Linux & DOS operating systems.

Supports remapping to the old address.
