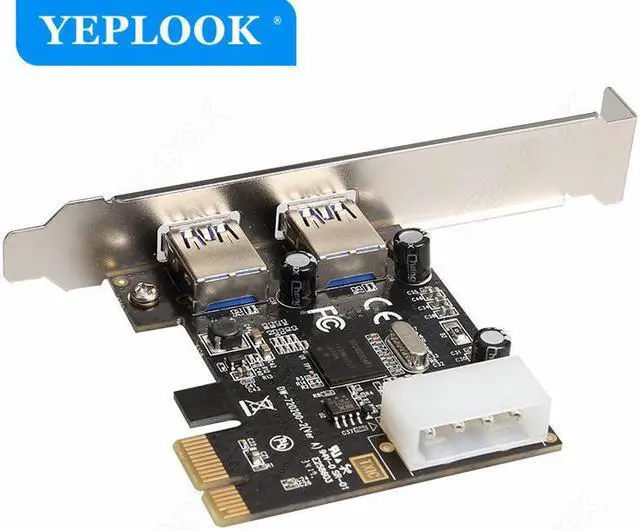

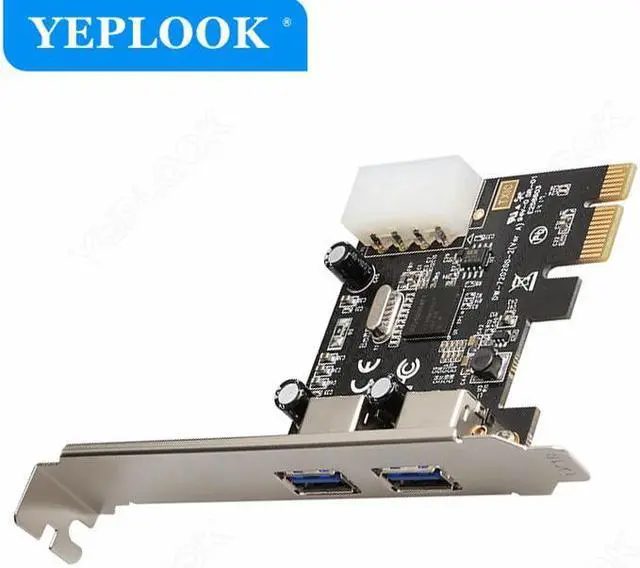

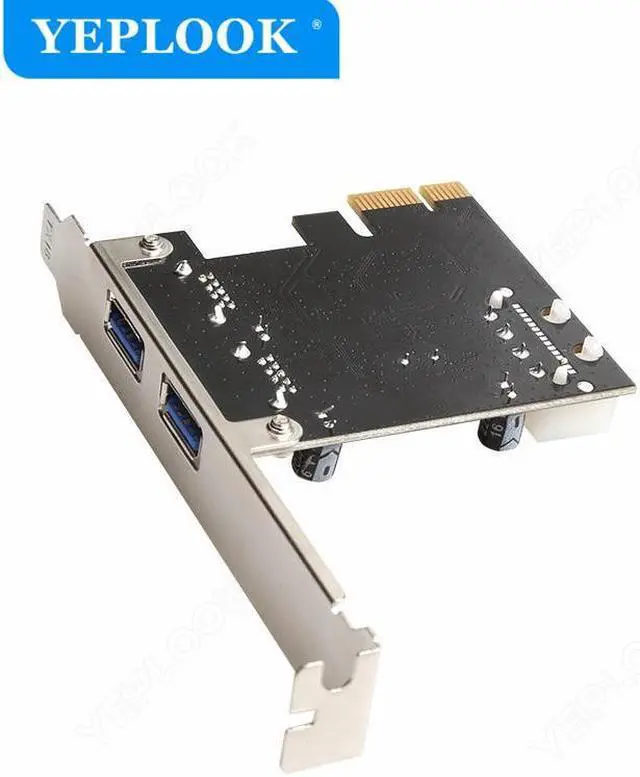

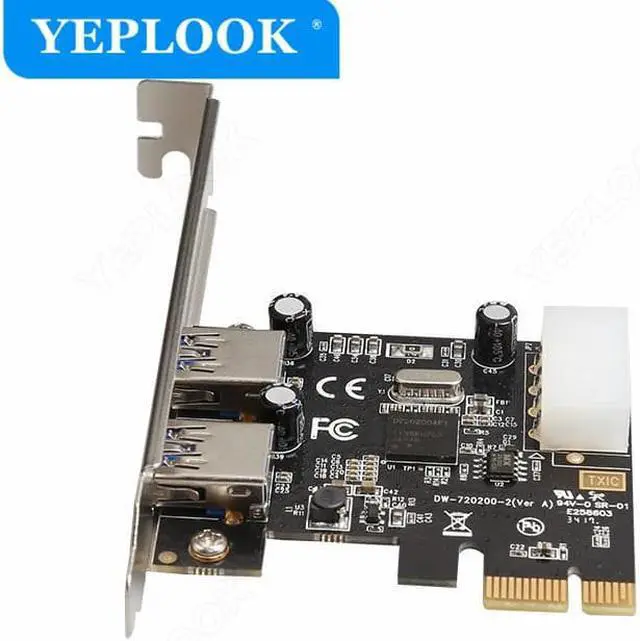

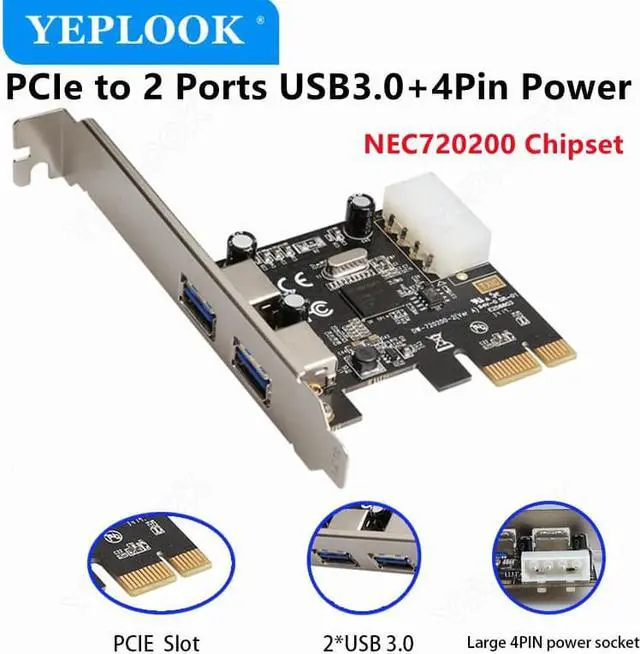

PCIe 1x to 2 Port USB3.0 + 4Pin Power Supply Port High Speed 5Gbps PCI Express Expansion Card Riser Card Adapter NEC720200 Chip

PCIe 1x to 2 Port USB 3.0 + 4Pin Power Supply Port High Speed 5Gbps PCI Express Expansion Card Riser Card Adapter NEC720200 Chipset

Product Description



Application: This kind of extension card converts PCIE to USB 3.0 ports, making your work and life more convenient.

Connection: This expansion board is suitable for low power devices, including mouse, keyboard, U disk and others.

Power supply: This adapter is designed with a power module, it supports low power equipment without power source, but you need to connect a IDE when connecting it to a mobile HDD.

Occasions: This extension module is suitable for home, office, network bar and other places, and you can carry it when travelling.

Adapter: The PCIE1X port is suitable for PCIE1X and PCIE16X slot, it can not be used for PCI slot.

Dimension: 80*68* 12.6 mm



Products Features:



1. Fully compliant with PCI Express Base Specification Revision 2.0

2. Single-lane (x1) PCI Express throughput rates up to 5Gbps

3. Support PCI Bus Power Management Interface Specification Revision 1.2

4. Compliant with Universal Serial Bus 3.0 specification Revision 1.0

5. Compliant with xHCI specification Revision 1.0

6. Compliant with USB Attached SCSI Protocol Revision 1.0

7. Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices Supports the following speed data rates as follows: Low-speed ( 1.5M bps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)

8. Support Legacy device and wakeup event

9. Supports 2 downstream ports for all speeds

10. Built-in 4-pin power connector for receiving extra power supply from system

11. Hot-swapping feature allows you to connect/disconnect devices without powering down the system

12. Support Windows® XP/Server2008/Vista/7 /Server2008/8/ 8.1 /10(32/64 bit)



System Requirement:



Windows®10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000

Windows Server® 2012, 2008 R2, 2003(32/64)

Mac OS® 10. x (Intel based, tested up to 10.9 )

Linux 2.4. x and later (Tested up to 3.5 )



Package Content: 1 x PCI Express Card USB 3.0 2-Port, 1 x Driver CD, 1 x Low profile bracket
