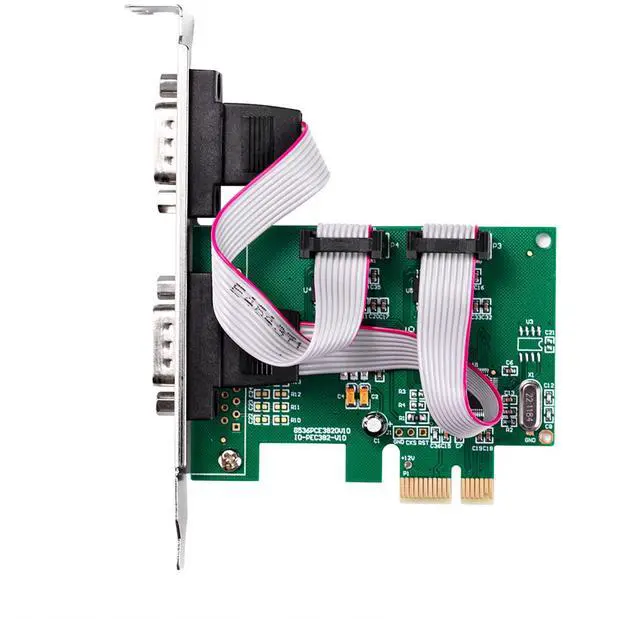

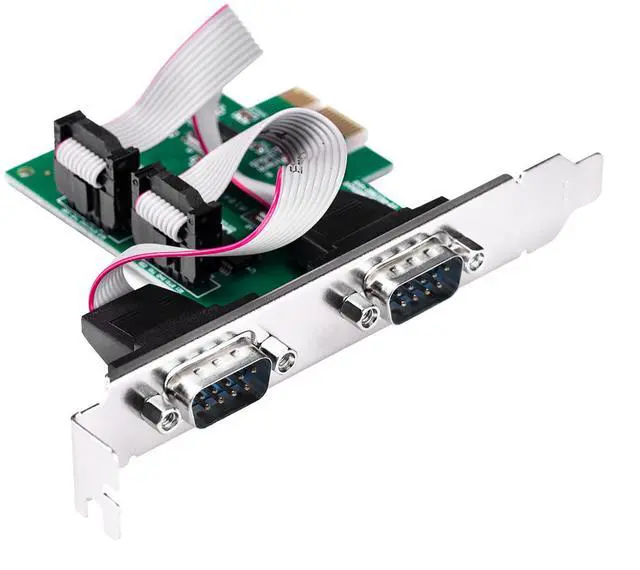

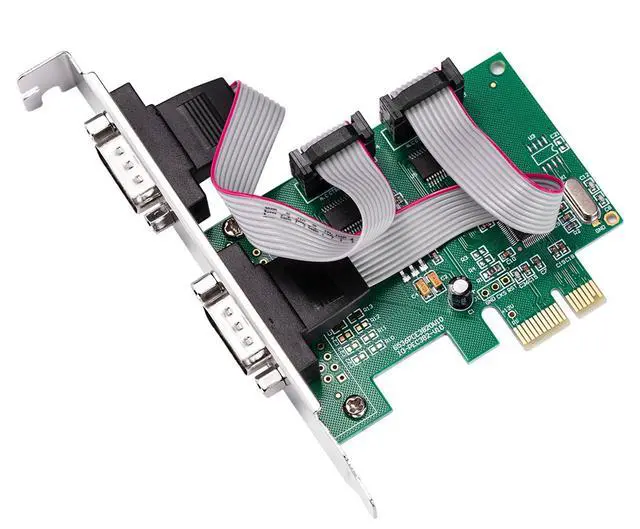

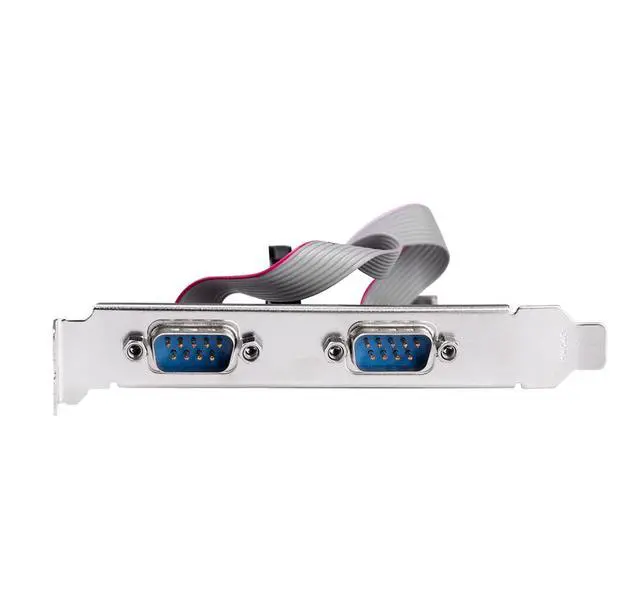

2-port DB-9 Serial (RS-232) PCI-e Controller Card,WCH382 Chipset

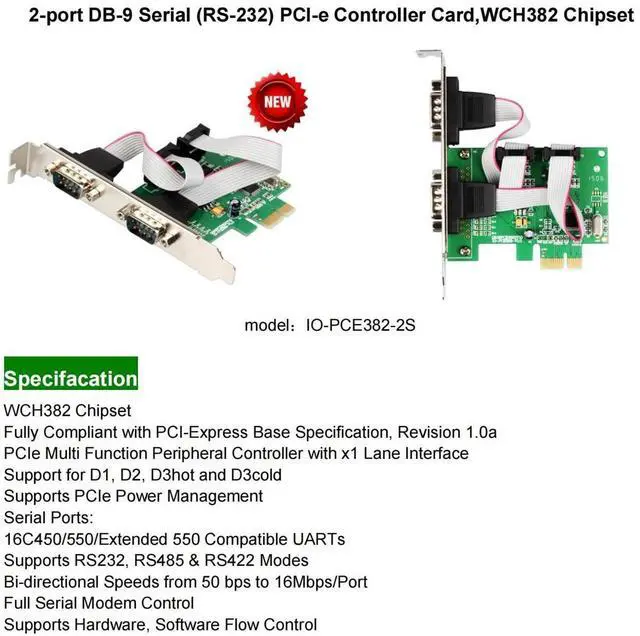

Specifacation
WCH382 Chipset
Fully Compliant with PCI-Express Base Specification, Revision 1.0a
PCIe Multi Function Peripheral Controller with x1 Lane Interface
Support for D1, D2, D3hot and D3cold
Supports PCIe Power Management
Serial Ports:
16C450/550/Extended 550 Compatible UARTs
Supports RS232, RS485 & RS422 Modes
Bi-directional Speeds from 50 bps to 16Mbps/Port
Full Serial Modem Control
Supports Hardware, Software Flow Control
5, 6, 7, 8 and 9-bit Serial Format Supported
Even, Odd, None, Space & Mark Parity Supported
On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port
Supports Remote Wake-up and Power Management Features
Serial Port Transceiver Shutdown Supported

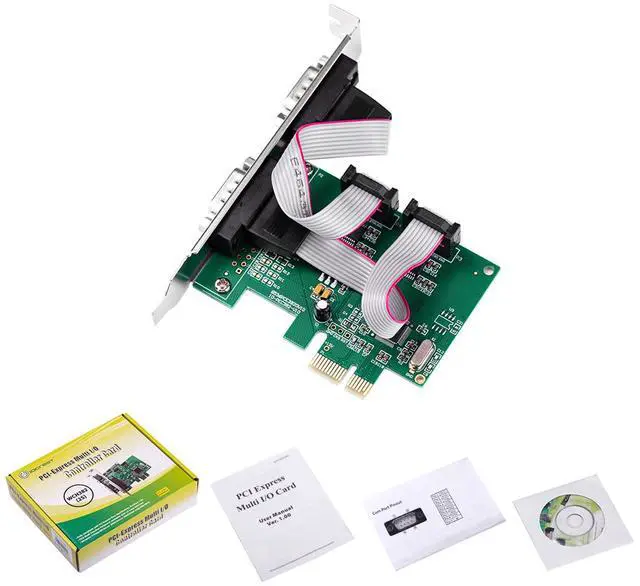

Package Includes
2-port Serial PCI-Express Card
CD Driver
User Manual
Software requirement
Windows 7 32/64-bit
Vista 32/64-bit
Windows XP 32/64-bit
Windows 2000/Windows 10
Linux Kernel 2.6.11 & Above
Mac 10.4 & Above
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
2-port DB-9 Serial (RS-232) PCI-e Controller Card, WCH382 Chipset
Specifacation WCH382 Chipset Fully Compliant with PCI-Express Base Specification, Revision 1.0 a PCIe Multi Function Peripheral Controller with x1 Lane Interface Support for D1, D2, D3hot and D3cold Supports PCIe Power Management Serial Ports: 16C450/550/Extended 550 Compatible UARTs Supports RS232, RS485 & RS422 Modes Bi-directional Speeds from 50 bps to 16Mbps/Port Full Serial Modem Control Supports Hardware, Software Flow Control 5, 6, 7, 8 and 9-bit Serial Format Supported Even, Odd, None, Space & Mark Parity Supported On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port Supports Remote Wake-up and Power Management Features Serial Port Transceiver Shutdown Supported
Package Includes 2-port Serial PCI-Express Card CD Driver User Manual Software requirement Windows 7 32/64-bit Vista 32/64-bit Windows XP 32/64-bit Windows 2000/Windows 10 Linux Kernel 2.6. 11 & Above Mac 10.4 & Above
Learn more about the Detailed Specifications
Model
Brand
lOCrest
Additional Information
Date First Available
March 03, 2025
