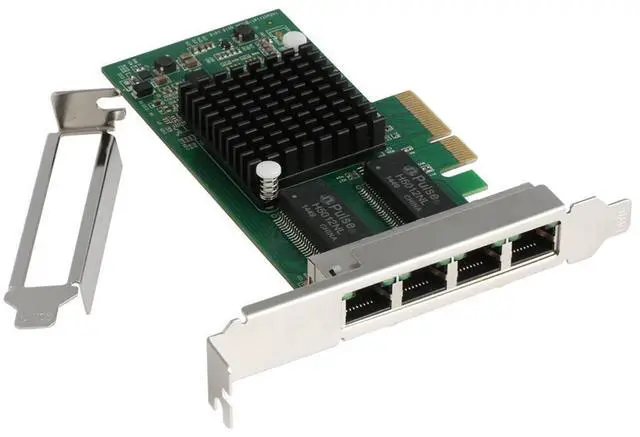

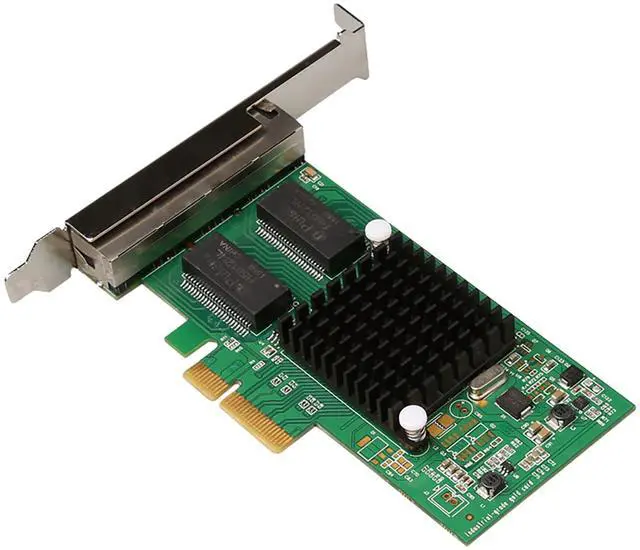

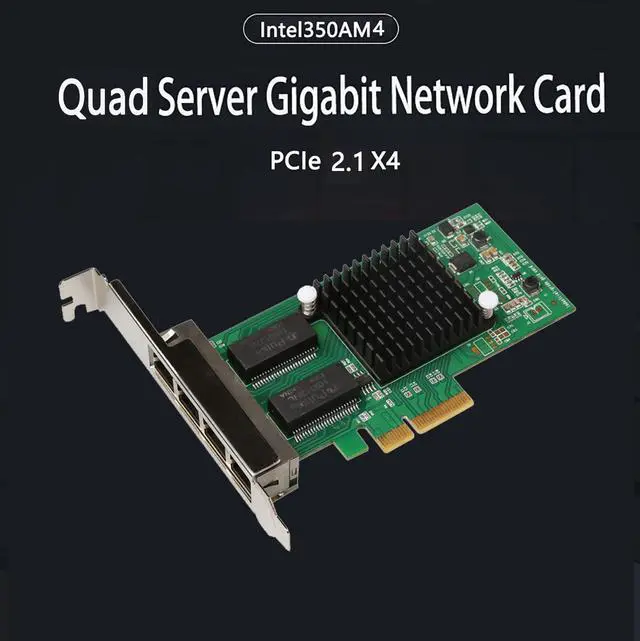

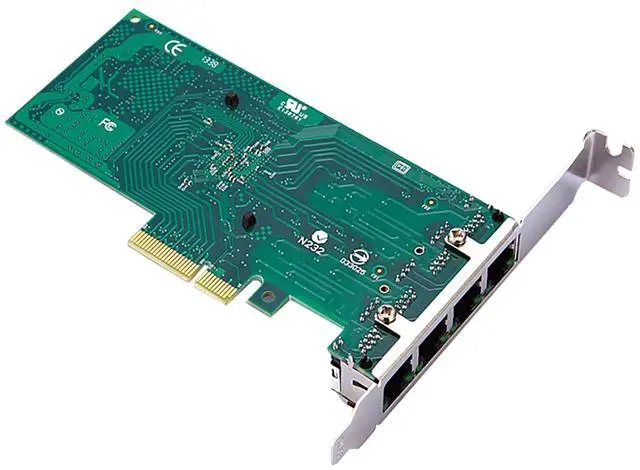

C&N Quad-Port Gigabit NIC with Intel I350 Chip, PCI Express 2.1 X4 Ethernet Card, 4-Port RJ45, Low Profile for Windows/Windows Server/Linux Compatibility

Based on the new Intel I350AM4 Gigabit Ethernet Controller, the Intel Ethernet Dual Port and Quad Port Server Adapters for IBM System x are Intel's fourth generation of PCI Express Gigabit Ethernet (PCIe GbE) adapters. These adapters showcase the industry's first fully integrated, multi-port PCIe 2.1 GbE controllers, providing a smaller footprint and lower power dissipation.

In addition, these adapters offer advanced features, including support for multi-core processors and server virtualization, as well as a scalable PCI Express 2.1 interface. Intel's first eco-friendly, halogen-free design combines low power use and low cost for one of the best price to performance ratios in a multi-port solution that is available today.

Features:

Four 10/100/1000 copper ports with RJ45 for Cat 5e/6 cabling Based on Intel I350-T4 ASIC (quad-port MAC/PHY controller)

PCIe 2.1 x4 host interface

IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab),1000BASE-BX and 1000BASE-KX (Without IEEE802.3ap Backplane Auto-Negotiation)

Energy Efficient Ethernet (EEE)

IEEE 802.1AS Timing

IEEE 802.3 az

IEEE 1588

IEEE 802.3ap

IEEE 802.1ad(Double VLAN)

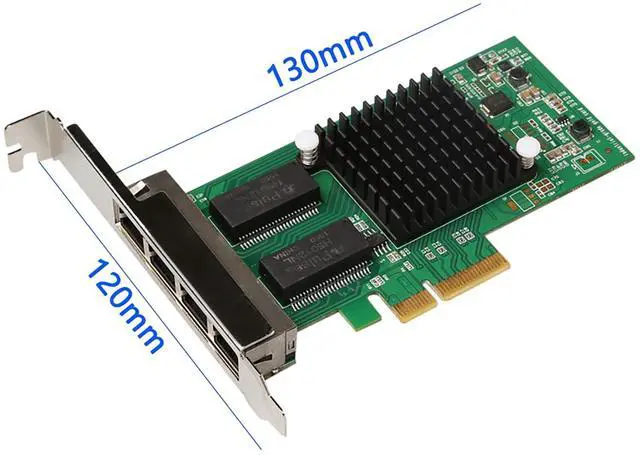

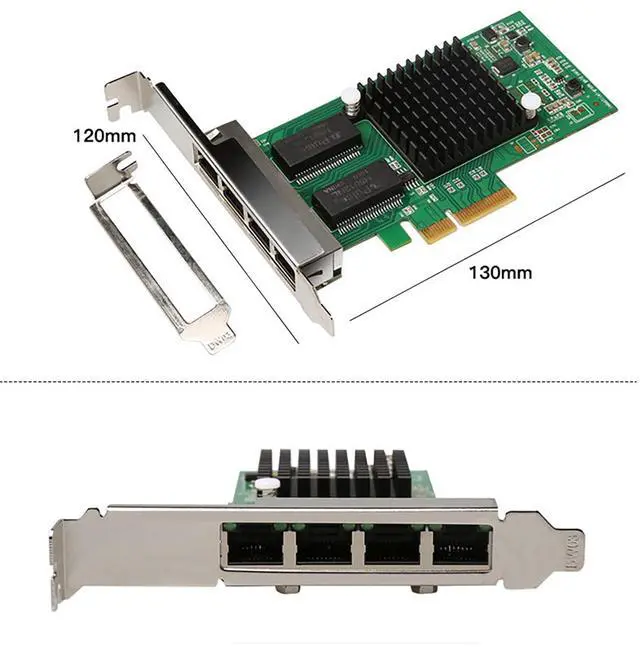

Low-profile card form factor

Wake on LAN support

Preboot eXecution Environment (PXE) boot support

VLAN support with VLAN tag insertion, stripping, and packet filtering for up to 4096 VLAN tags

iSCSI boot support (built-in software iSCSI initiator)

iSCSI support with native operating system initiators

Jumbo frame support

Intel I/O Acceleration Technology (I/OAT) acceleration

Intel Virtual Machine Device Queues (VMDq) support for VMware with eight queues per port

TCP/IP checksum offload

TCP/IP segmentation offload / large-send offload support

Support Windows 7/8/9/10/11 , Windows Server 2012/2012R/2016/2019/2022 , RHEL9.2 & 8.8/RHEL9.0-9.1/8.0-8.7,SLES15 SP5/SLES15 SP4 /SLE

Product information

Additional Features

• High performance and enterprise-class features: Designed for enterprise-class users, it supports advanced networking features and multiple operating systems to ensure high performance, high reliability and broad compatibility for data centers, virtualized environments and enterprise network deployments.
• 180 DAYS WORRY-FREE WARRANTY & QUALITY CUSTOMER SERVICE: Provide 180 days worry-free warranty service, if there is any problem with the product, we will provide timely technical support. If the problem can not be solved, we will provide you with a refund service to ensure that your shopping experience is worry-free.
