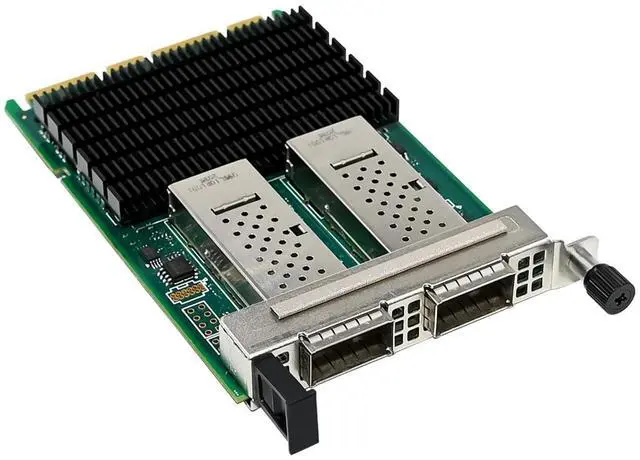

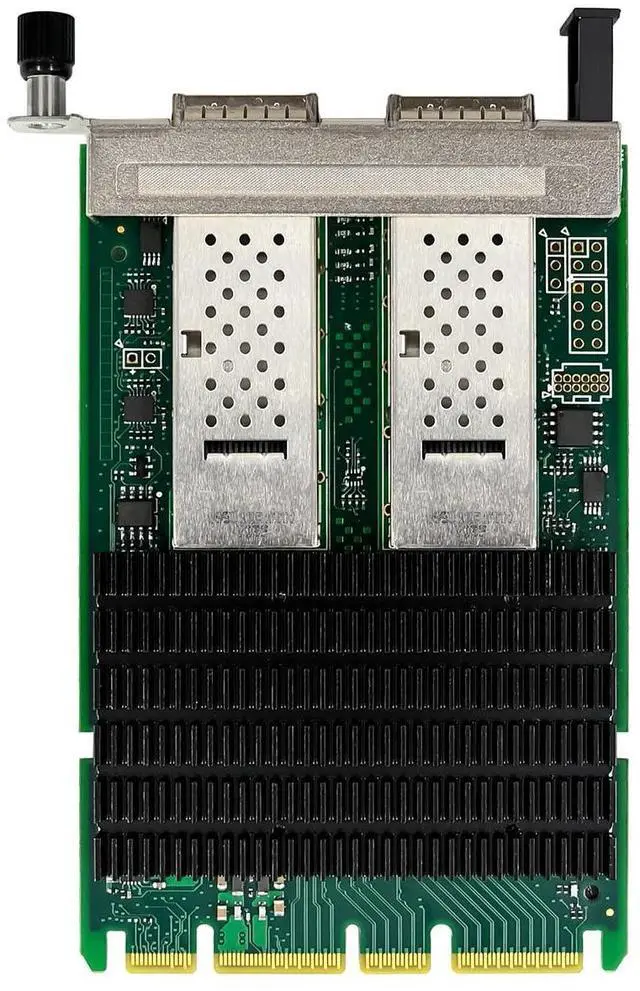

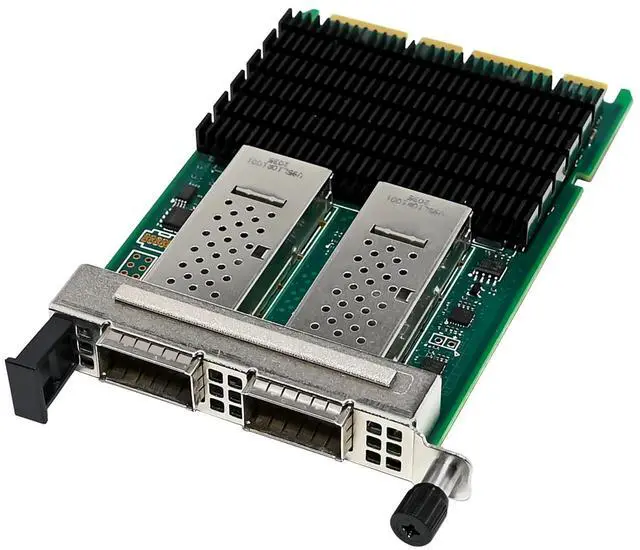

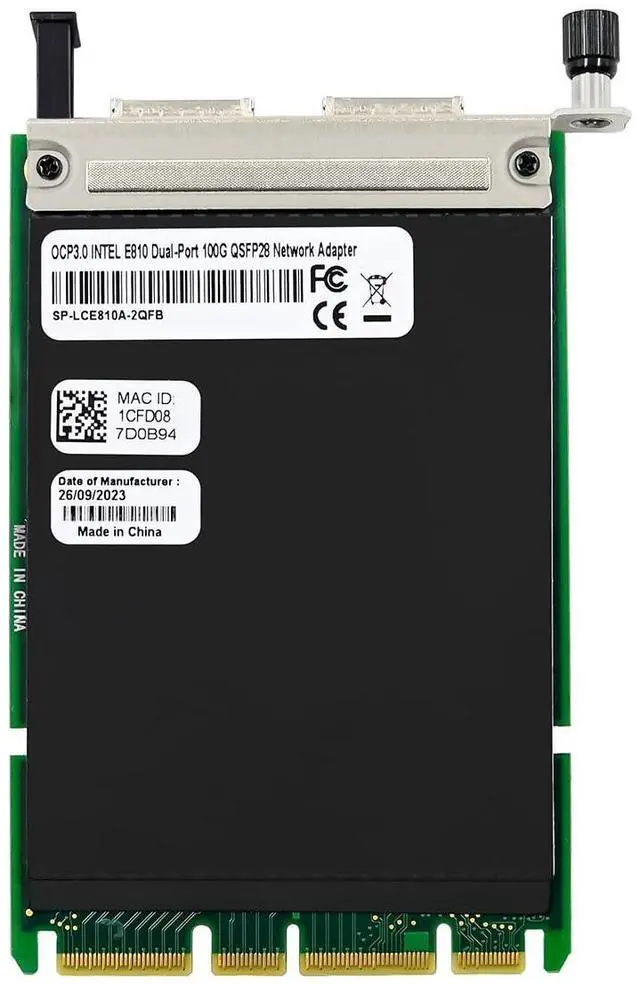

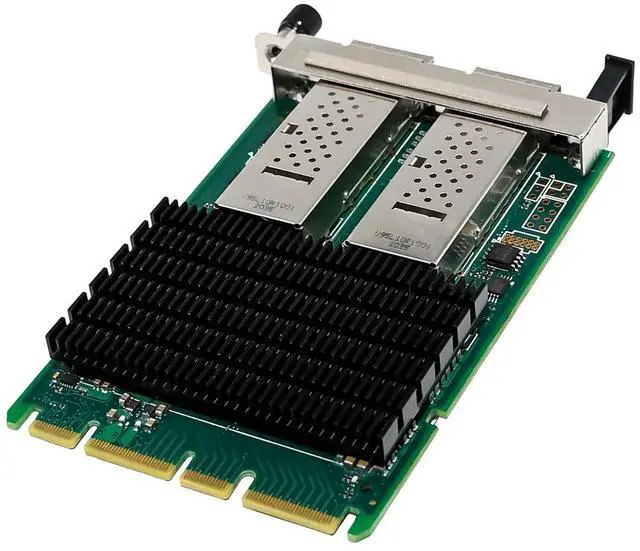

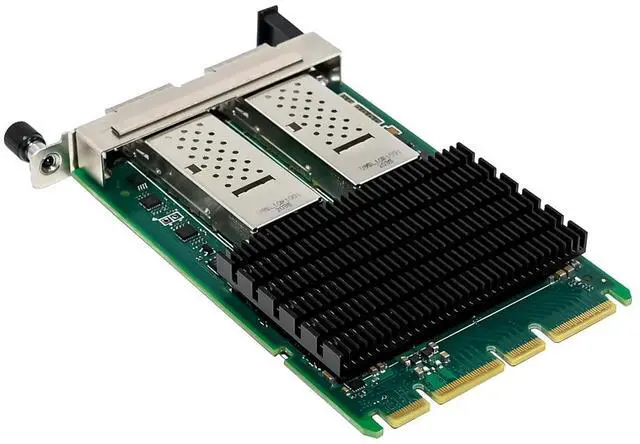

C&N 100Gb OCP3.0 Network Card with Intel E810 Chip,Dual-Ports NIC PCI Express Ethernet Adapter Support Windows Server/Linux/VMware (ST7388-E810 100G)
- [Intel controller]: The 100g dual-port fiber network card is based on the original Intel E810 controller,which enables NVMe support for Fabric TCP, as well as optional support for RDMA's iWARP and RoCEv2 capabilities. OCP3.0 SFF
- [Supported operating systems]: Windows Server 2016 R2/2019 R2/2022 R2;Linux SLES 12.x or later; CentOS / RHEL 7.x or later;Ubuntu 16.x or later;FreeBSD 11.x/12.x or later;Linux Stable Kernel version 3.10.x/4.x or later.
- [Technical Support]: PXE, DPDK,Jumbo Frames, RDMAiWARPRoCE v2), SR-IOV, VxLAN, GENEVE, GRE
- [Easy Installation]: Install the operating system with its driver CD or download it from the Intel official website. Includes low-profile and full-height stands to support standard and ultra-thin computers/servers.
- 180 day worry-free warranty and friendly customer service. If you have any questions, we will help you solve the problem when you need it, and if it cant be solved, we will provide a refund and no return is required
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
The OCP3.0 INTEL E810 Dual-Port 100G Ethernet adapter defines a standardized design for a new generation of network adapters. It supports a wide range of system configurations to meet customer needs and workload requirements. The many port and speed combinations available simplify validation It uses the PCI Express4.0 X16 bus and provides two 100G QSFP ports for the optimize server workloads such as Network Functions Virtualizations (NFV), storage, HPC-AI and hybrid cloud.
Specification
OCP NIC3.0 Small Form Factor
Compliance with PCI Express 4.0 specification and backward with PCI Express3.0
Concurrency for 256 non-posted requests.
Supports multiple port speeds with a single architechture:100/50/25/10/1GbE
100Gb/s throughput for each TX and RX, up to 80Mpps for TX and 90Mpps for RX
Network interface: 100Gb 10Gbase-CR4/KR4,CAUI-4,100GBASE-CR2/KR2,
50Gb:50Gbase-CR2/KR2,50GBASE-CR/KR,50GAUI-1/-2,LAUI-2
25Gb:25GBASE-CR/KR,25G-AUI C2C/C2M,25GBASE-CR1/KR1
10Gb/10GABSE-KR,10GSFI/SFP+
Flexible Ethernet Port Configuration with Ethernet Port Configuration tool(EPCT)
Support Virtualization features: 8 Physical functions (PF)
SR-IOV with up to 256 Virtual Functions (VF)
768 Virtual Station interfaces (VSI)
Microsoft VM Queue(VMQ)
VMware NetQueue
Stateless offloads: TCP/UDP segment offload, large segment offload, checksum offload
IEEE1588 Precision Time Protocol Support
RDMA support both iWARP and RoCE v2
Enhanced DPDK for Network Functions Virtualization acceleration, advanced packet forwarding, and highly effective packet processing
Deliver consistent application performance with Application Device Queues
Improve packet processing efficiency with enhanced Dynamic Device Personalization (DDP)
Intel® Ethernet Adaptive Virtual Function (Intel® Ethernet AVF)
Jumbo frame of up to 9728 bytes
Support Operation Systems: Windows 11/server2016/server2019/server2022 Linux: RHEL9.1/8.7, SLES15 PS4, Ubuntu22.04/20.04/Debian11 /FreeBSD13/12.3
Product information
| Brand | C&N |
| Hardware Interface | Ethernet, PCI Express 4.0, PCI Express x16 |
| Compatible Devices | Desktop,Sever |
| Data Link Protocol | Fast Ethernet |
| Data Transfer Rate | 100 Gigabits Per Second |
| Manufacturer | ULANSON |
| Package Dimensions | 6.89 x 4.92 x 1.18 inches |
| Item model number | ST7388-E810 100G |
