Unleash Blazing-Fast Network Performance
Unlock the full potential of your network with the Dual-Port PCIe x4 Gigabit Network Card. Powered by Intel's cutting-edge I350 technology, this adapter delivers lightning-fast data transfer speeds and unparalleled reliability, making it the perfect choice for demanding server environments.

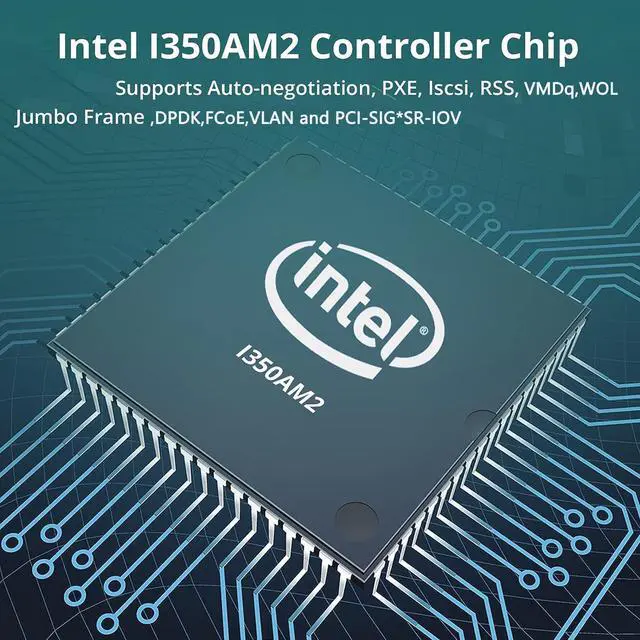

The Ethernet Controller with Intel I350 family builds on Intel’s history of delivering Ethernet products with flexible design and in-box driver support. Run up to four 1 Gb ports with enhanced power saving and market-leading flexible I/O virtualization including VMDq and SR-IOV.
Intel’s software drivers and support are unmatched for virtual or non-virtualized environments.
Features
PCIe base specifiatication 2.0(2.5GT/S) or (5GT/s)
Two 10/100/1000 Mbps compatible RJ45 Ethernet ports
Link and Activity LED indicators
Full and half duplex support
PXE network boot support
Intel iSCSI Remote Boot for Windows, Linux, and VMware
Intel Boot Agent software--Linux boot via PXE orBOOTP, Windows* Deployment Services, or UEFI
Complies with dual port 1GbE PHY device
MDI(Copper)standrd IEEE802.3 Ethernet interface for
1000BASE-T,100BASE-TX,and10BASE-T application(802.3,802.3u,and 802.3ab)
Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
PCI Bus Power Management interface Specification Rev1.2
Max 9.5KB of jumbo frames supported
Flow control supports: send/receive PAUSE frames and receive FIFO thresholds
Statistics for management and RMON
Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3x Fully Duplex Flow Control
64-bit address support for systems using more than 4GB of physical memory
Full wake up support
Support for PCI-SIG SR-IOV specification
TCP segmentation offload :up to 256KB
IPv6 support for IP/TCP and IP/UDP receive checksum offload
Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
Receive packet split header
DCA support
Support for Virtual Machines device queues
Support Windows 7/8/9/10/11 , Windows Server 2012/2012R/2016/2019/2022 , RHEL9.2 & 8.8/RHEL9.0-9.1/8.0-8.7,SLES15 SP5/SLES15 SP4 /SLES12 SP5 and previous,Ubuntu*22.04 LTS/20.04 LTS,Debian 11 , FreeBSD 13.1 & 12.4/13.0 /12.0 - 12.3 , Vmware Esxi 5/6/7
Packing list
1xPCIE 1G LAN Card
1xCD Driver

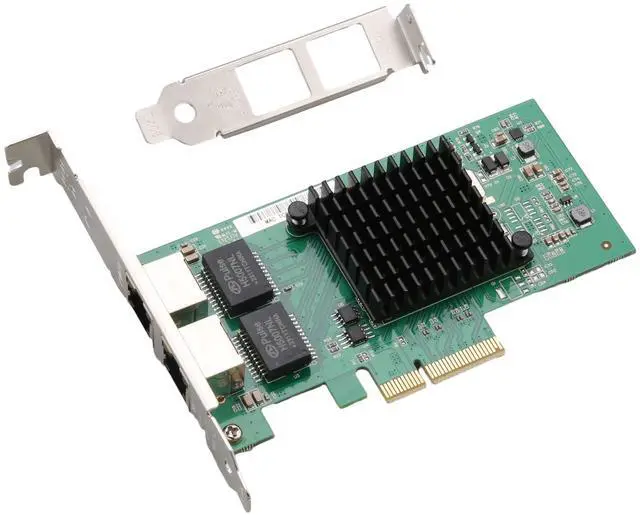

1x Low profile Bracke
