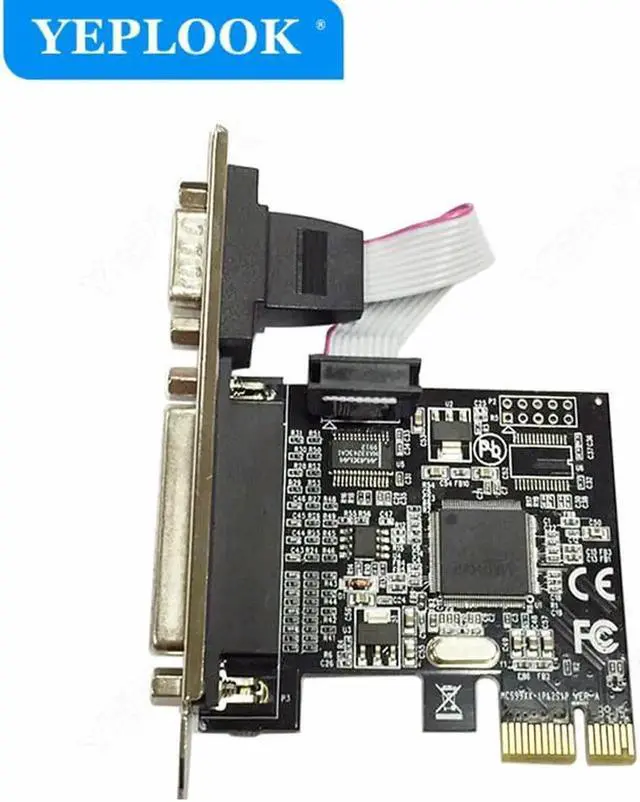

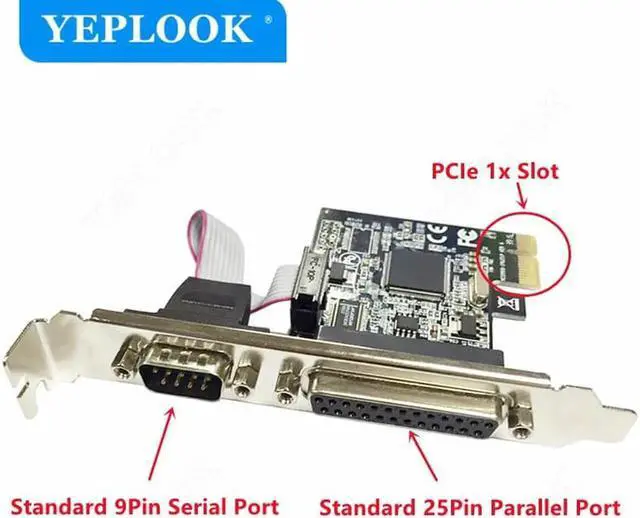

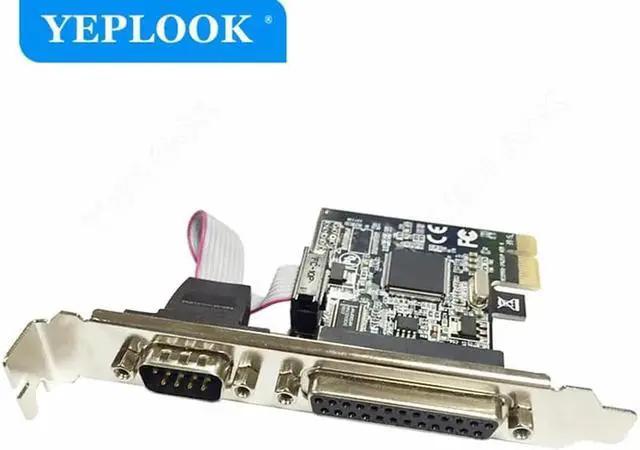

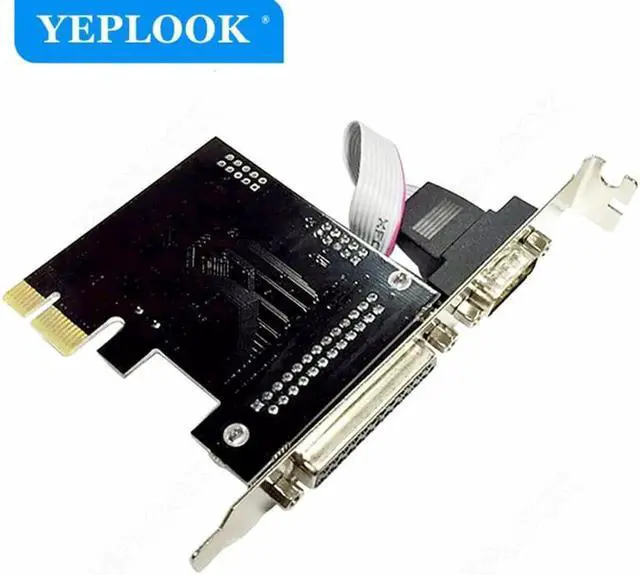

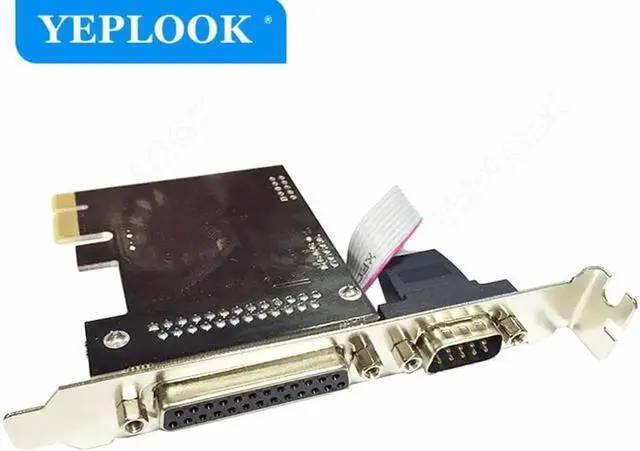

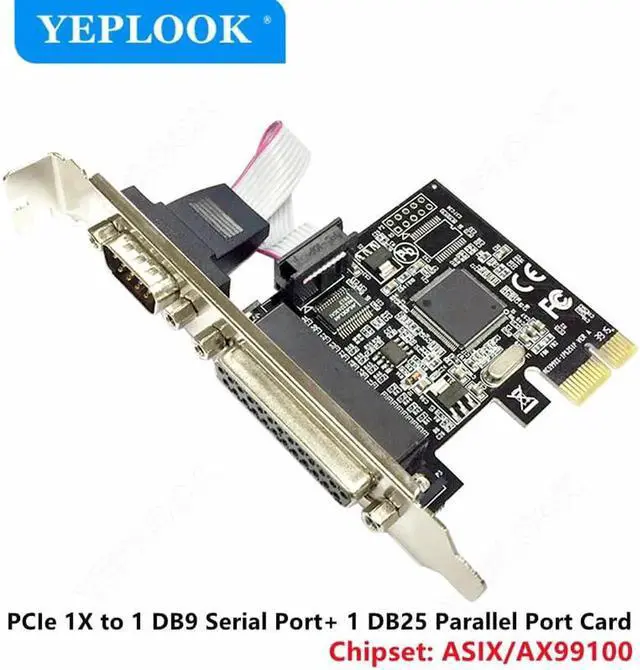

JAENFONG PCIe to Single Port DB9+DB25 PCI-E X1 RS232 Serial Port + LPT Parallel Port Expansion Card Riser Card Chip ASIX/AX99100

PCIe to Single Port DB9+DB25 PCI-E X1 RS232 Serial Port + LPT Parallel Port Expansion Card Riser Card Chip ASIX/AX99100

Description:

Model number: DW-TXB075

Chipset: ASIX/MCS99100

Port number: 1* Serial port, 1*Parallel port

Interface: PCI Express 1x slot

Dimension: 65*60*14mm

Support OS

Windows®10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000

Windows Server® 2012, 2008 R2, 2003(32/64)

Mac OS® 10. x (Intel based, tested up to 10.9 )

Linux 2.4. x and later (Tested up to 3.5 )

Environment:

Operating Temperature: 0 -50

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -0-80

Relative Humidity: 5%-90%(non-condensing)

Features

Serial Port:

Supports RS232, RS485 & RS422 modes

Bi-directional speeds from 50 bps to 16 Mbps/Port

Full Serial modem control

Supports Hardware, Software flow control

5, 6, 7, 8 and 9-bit Serial format support

Even, Odd, None, space & Mark parity supported

Custom BAUD Rates supported with external clock or by programming internal PLL

On Chip 256 Byte depth FIF

Os in Transmit, Receive path of each Serial Port

Supports remote wake up and power management features

Serial Port transceiver shutdown support

Supports Slow IrDA on all Serial Ports IEEE1284

Parallel Port:

IEEE 1284 compliant parallel port interface, supporting SPP/PS2/EPP/ECP modes and centronics interface

Faster data rates up to 1.5M bps for parallel port
