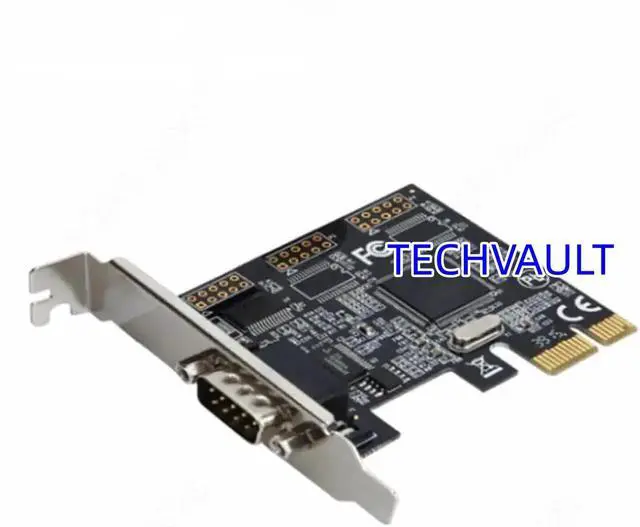

JAENFONG PCI-E 1x Single Port DB9 RS232 PCIe to Serial Port Expansion Card Adapter Converter Chipset ASIX AX9900 for Desktop PC Computer

PCI-E 1x Single Port DB9 RS232 PCIe to Serial Port Expansion Card Adapter Converter Chipset ASIX AX9900 for Desktop PC Computer

Description:

Model number: TXB067

Chipset: ASIX/MCS9900

Port number: 1* Serial port

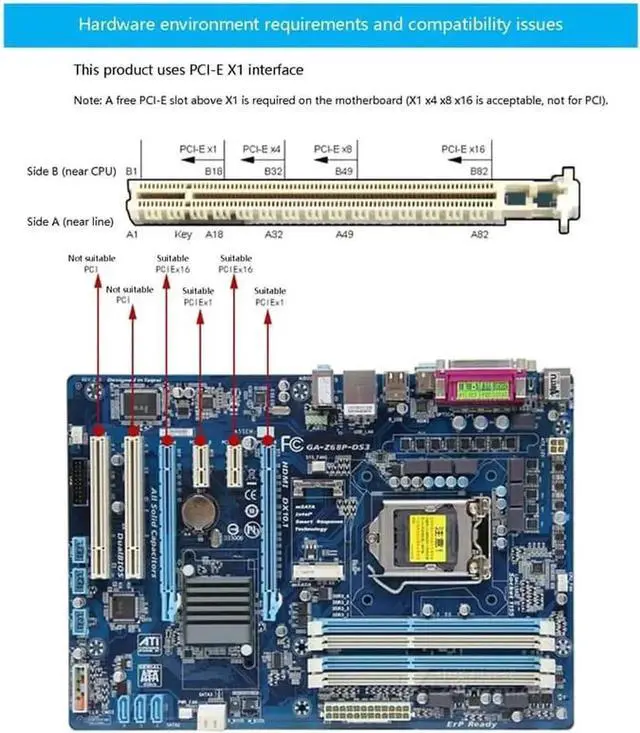

Interface: PCI Express 1x slot

Dimension: 65.3 * 58.2 *16mm

Support OS

Windows*10 (3264), 8/ 8.1 (3264), 7 (3264), Vista (3264), XP (3264), 2000

Windows Server 2012, 2008 R2, 2003 (3264)

Mac OS°10. x(Intel based, tested up to 10.9 )

Linux 2.4. x and later(Tested up to 3.5 )

Environment

Operating Temperature: 0-50

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -0-80

Relative Humidity: 5%-90%(non-condensing)

Features

Serial Port:

Supports RS232, RS485 & RS422 modes

Bi-directional speeds from 50 bps to 16 Mbps/Port

Full Serial modem control

Supports Hardware, Software flow control

5, 6, 7, 8 and 9-bit Serial format support

Even, Odd, None, space & Mark parity supported

Custom BAUD Rates supported with external clock or by programming internal PLL

On Chip 256 Byte depth FIF

Os in Transmit, Receive path of each Serial Port

Supports remote wake up and power management features

Serial Port transceiver shutdown support

Supports Slow IrDA on all Serial Ports IEEE1284

Four 16C450/550/Extended 550/650/Enhanced Mode compatible UAR

Ts

More Features:

Single-lane (X1) PCI Express End-point Controller with integrated PHY

Compliant with PCI Express Base Specification, Revision 1.1

Compliant with PCI Express card specifications

Supports four PCI Express functions

Supports auto completion of configuration requests

Supports built in flow control

Supports Message TLP (Error) generation

Supports integrated time out handling of Non-posted request

Supports both legacy and MSI Interrupt

Supports PCle Power Management
