JAENFONG Wireless-AC 9560 9560NGW 9560AC 1730Mbps Wi-Fi+BT 5.0 Dual Band 2.4G/5Ghz 802.11ac 2x2 NGFF key E M.2: CNVio Wireless Network Card

Wireless-AC 9560 9560NGW 9560AC 1730Mbps Wi-Fi+Bluetooth 5.0 Dual Band 2.4G /5Ghz 1.73G bps 802.11 ac 2x2 NGFF key E M.

2: CNVio Wireless Network Card For Win10 Only FRU 01AX768 Wireless-AC 9560 Wifi Card is a CRF (companion RF module) supporting the integrated wireless 802.11 ac solutions from Intel. The solution provides Bluetooth 5 and 2x2 802.11 ac Wi-Fi including wave 2 features such as 160MHz channels. These new features deliver a significant increase in user speeds in dense deployments, supporting fast downloads and long battery life compared to legacy 802.11 ac devices. Combined with Intel Core processors and exceptional wireless innovations, the Intel Wireless-AC 9560 can provide Gigabit wireless speed and dramatically improve your connected experience at home, work, or on the go. Bluetooth support with mobile phones, headphones, keyboard, mouse, audio and other devices. The notebook with ngff key e (M2: cnvio) WiFi slot, desktop and mini all-in-one can be used. Up to 1.73G wireless, far faster than 1G wired. 9560AC support MU-MIMO technology. Provides you an incredible experience in playing online games, and enjoying HD videos. It currently only support ceretain processors: For 8th Gen Intel Core processors For Intel Pentium Silver processors based on Gemini Lake For Celeron processors based on

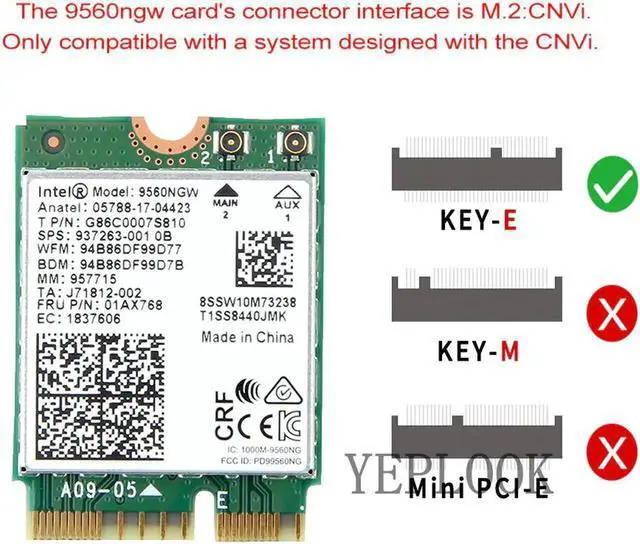

Gemini Lake Note: Even though you can insert these CRF to a standard M. 2 Key E socket, they are only compatible with a system designed with the CNVi. Contact your system or motherboard manufacturer to verify compatibility. If you still have any questions, please contact us before buying.

Description:

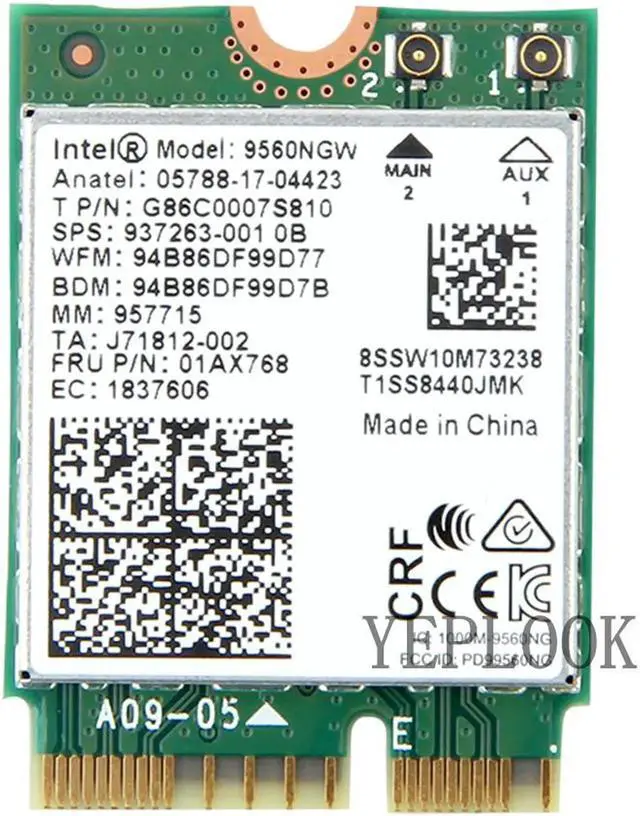

Model: For Intel 9560NGW

SPS: 937263-001 0B

FRU P/N: 01AX768

Dual band: 2.4G hz / 5Ghz (160Mhz)

Max speed: Speed up to 1730Mbps (The router must on 160Mhz)

Bluetooth Version: Bluetooth 5.0

Interface: NGFF Key E, 22x30mm IEEE

WLAN Standard: IEEE 802.11 a/b/g/n/ac

MU-MIMO: Supported

Antenna diversity: Supported

Radio ON/OFF control: Supported

Connector Interface: M.

2: CNVio

Supported Operating Systems: Only work with Microsoft Windows 10, Not support Windows 7/8/ 8.1

Compatible With: It can used on Samsung/Dell/Sony/ACER/ISUS/MSI/Clevo/Terransforce/Hasee etc. Not support IBM/Thinkpad/lenovo/hp laptop.
