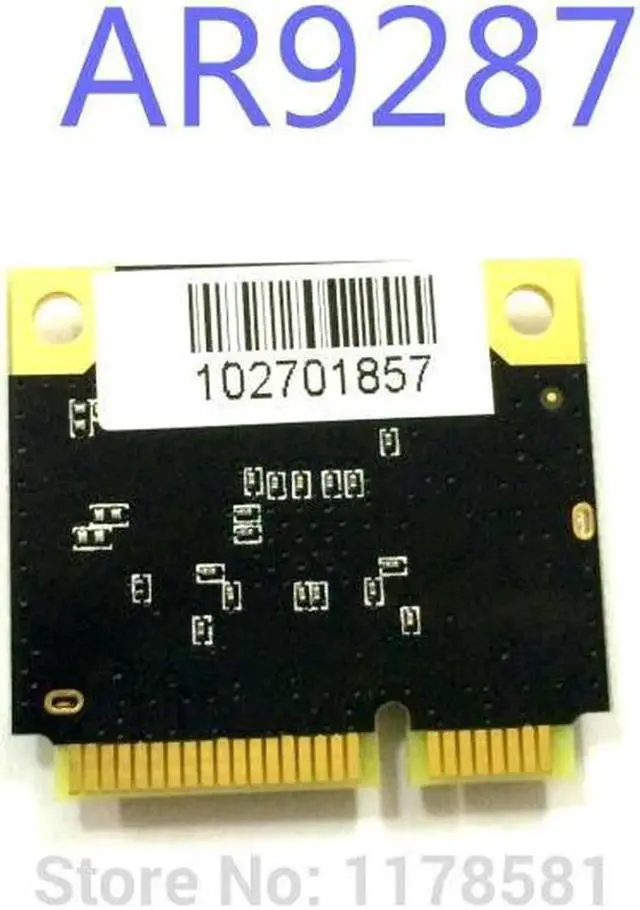

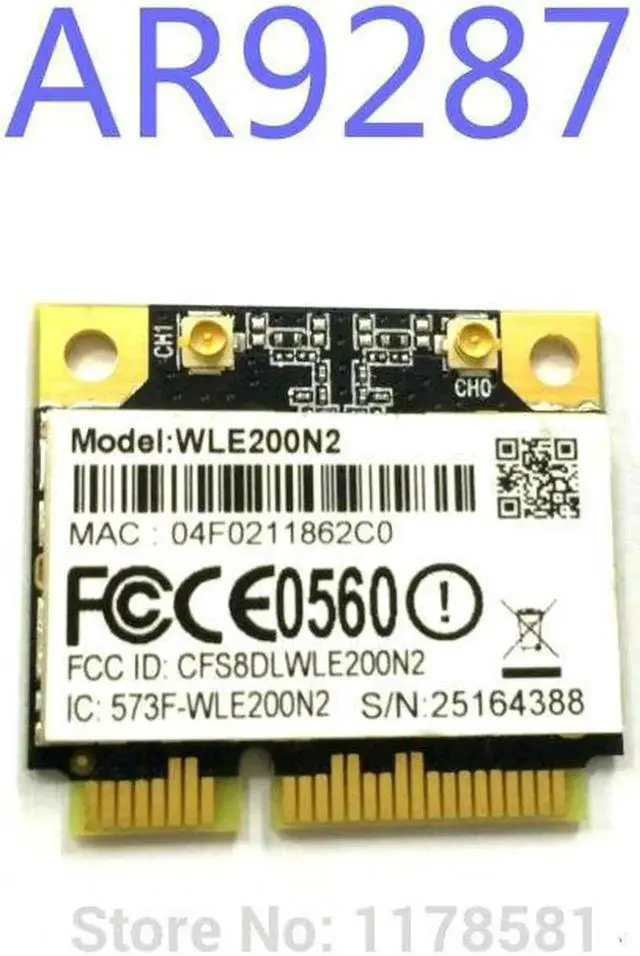

JAENFONG High power Compex WLE200N2 / 802.11 n/b/g 2x2 MIMO / Half-Size PCI-Express MiniCard (Qualcomm Atheros AR9287) 16dBm

WLE200N2

2.4GHz 2Ã2 802.11n Half Sized Module

Atheros HB97 reference design

IEEE 802.11n compliant and backward compatible with 802.11b/g

2.4GHz Single-band 2 x 2 MIMO spatial multiplexing technique

Output Power up to 16dBm

Supports up to 300Mbps physical data rates

Specification Table

Product Type

Wireless Module

Chipset

AR9287

Wireless Standard

802.11n, 802.11g, 802.11b

MIMO Channels

2Ã2

Output (Per Chain)

16dBm

Wireless Speed

300Mbps

Frequency Range

2.412 ~ 2.472 GHz

Interface

1x MiniPCI-e Pin, 2x U.FL Connector

MiniPCI-e Pin

v1.1

Power Consumption

1.9 Watts (Max)

Temperature Range

Operating: -20oC to 70oC, Storage: -40oC to 90oC

Humidity

Operating:5% to 95% (non-condensing)

Certification

IC, CE, FCC, RoHS Compliance

Dimension (W x H x D)

30mm x 26.8mm x 3.45mm

2.4Ghz (Per Chain)

Data Rate

TX

RX

802.11b/g

11Mbps

16

-94

54Mbps

11

-78

11n HT20

MCS 0

N.A

N.A

MCS 7

12

-67

11n HT40

MCS 0

N.A

-N.A

MCS 7

11

-65
