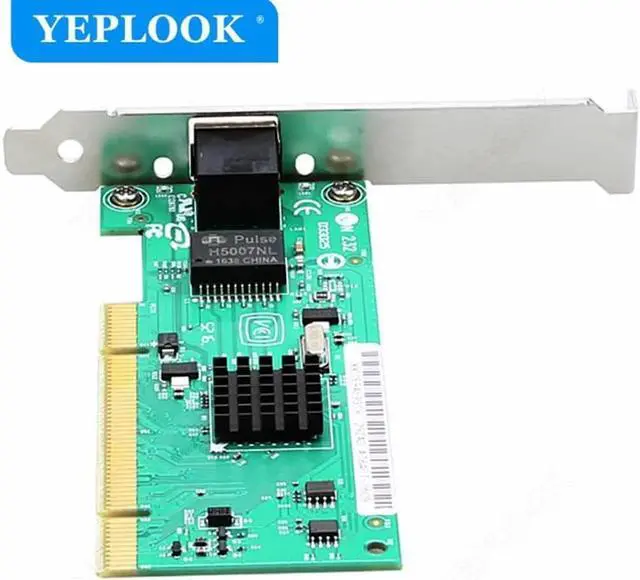

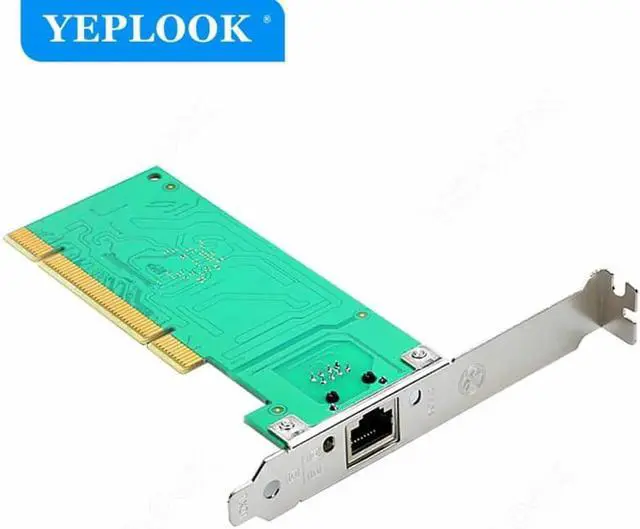

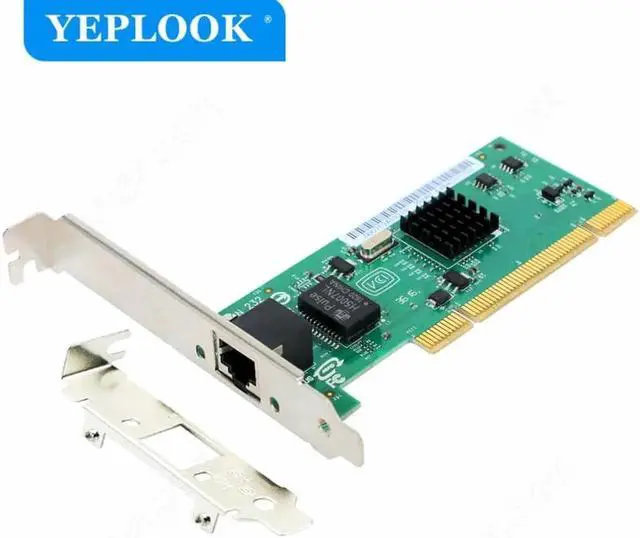

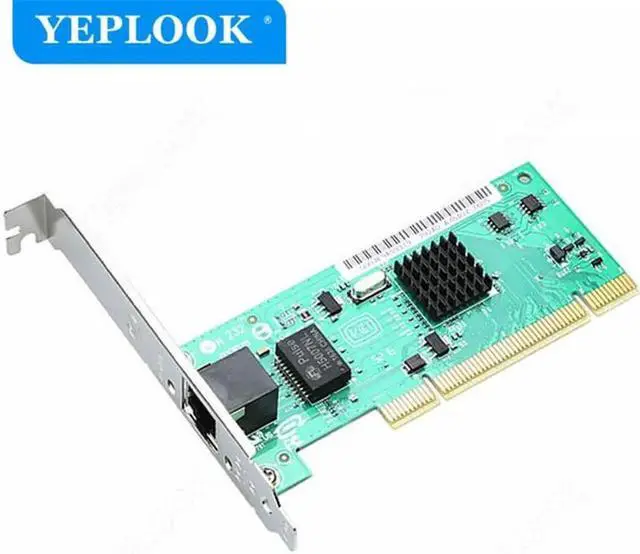

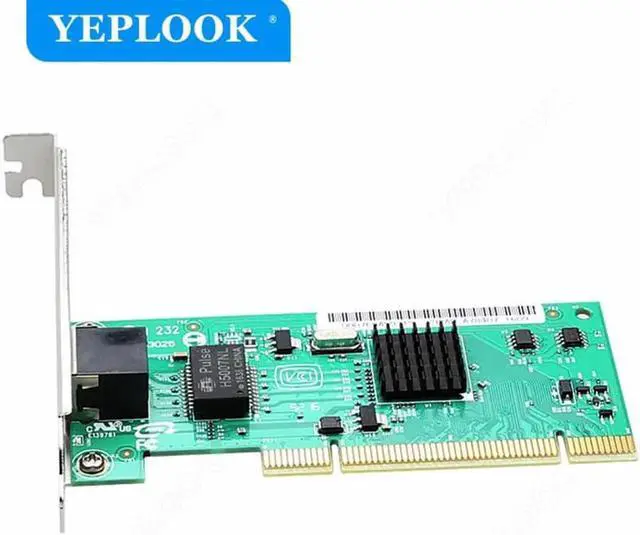

JAENFONG PCI 10/100/1000Mbps RJ45 Gigabit Network Card Diskless Fast Ethernet Adapter Controller Lan Card 8390MT Intel 82540 Chipset

PCI 10/100/1000Mbps RJ45 Gigabit Network Card Diskless Fast Ethernet Adapter Controller Lan Card 8390MT Intel 82540 Chipset

Specifications

Model number: TXA011

Size: 119x51x16mm

Data Rate: 1000Mbps

Connectors: 1x RJ45 Port

LED Indicator: 2 LED 1000Mbps (link/Act)

Support OS: Windows XP/Win7/8/ 8.1 /10

Chipset: Intel 82540 Gigabit Controller

Simplify installation and maintenance with Intel Single Driver technology

High-performing, auto-negotiating 10/100/1000Mbps connection

Easy, cost-effective migration to Gigabit Ethernet over existing CAT-5 cabling

IEEE Standard/Network Topology: 10BASE-T, 100BASE-TX, 1000BASE-T

Standard: IEEE 802.1 p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3 ab, IEEE 802.3 x

Bus Type: PCI 2.3

Bus Speed: 32/33, 32/66

Data Rate (s) Supported per Port: 10, 100, 1000 Mbps

Integrated Memory: 64 KB

Interrupt Levels: INTA

IEEE Support: 802.2 and 802.3 ab

Data Path Width: 32-bit PCI

Hardware Certifications: FCC B, CE, BSMI B, VCCI B

Data Transfer Mode: Bus-master DMA

Controller Processor: Intel 82541GI

Typical Power Consumption: 800 mA +5 VDC

Features

Intel Single Driver technology; Plug and Play Specification Support; Easy Installation, Intel PRO Set II Utility; Auto-negotiation, Full-duplex Capable

Intel® 82540EM Gigabit Controller

Compatible with Fast Ethernet and Ethernet

PCI 2.2 32-bit 33/66 MHz

Interrupt Moderation

ACPI, WoL, PXE

SNMP/DMI, WfM

Meets IEEE 802.3 ab technology

Advanced Cable Diagnostics

Support for many NOSs

Package Including: 1x PCI 10/100/1000Mbps RJ45 Gigabit Network Card, 1x Short Bracket
