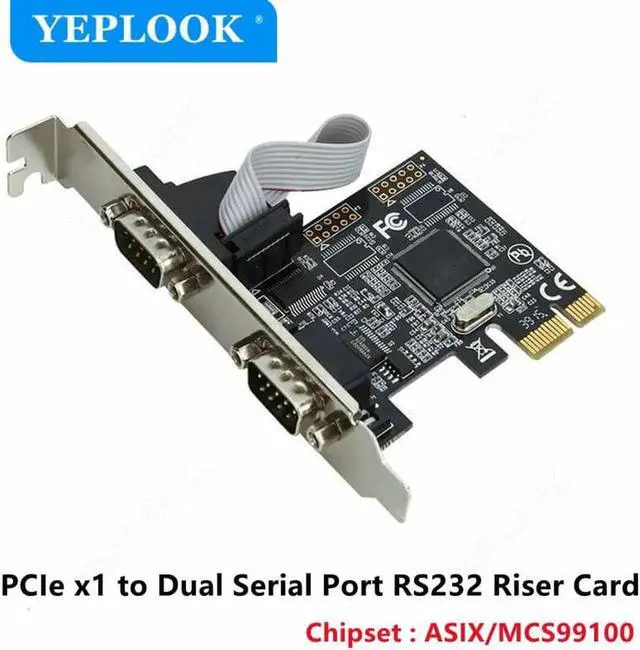

JAENFONG PCIe to Dual Serial Port PCI-E to 2 Ports RS232 DB9 Expansion Card Adapter Converter Riser Card Chipset ASIX/AX99100

PCIe to Dual Serial Port PCI-E to 2 Ports RS232 DB9 Expansion Card Adapter Converter Riser Card Chipset ASIX/AX99100

Description:

Model number: DW-TXB074

Chipset: ASIX/AX99100, MOSCHIP99100

Port number: 2*Serial Port

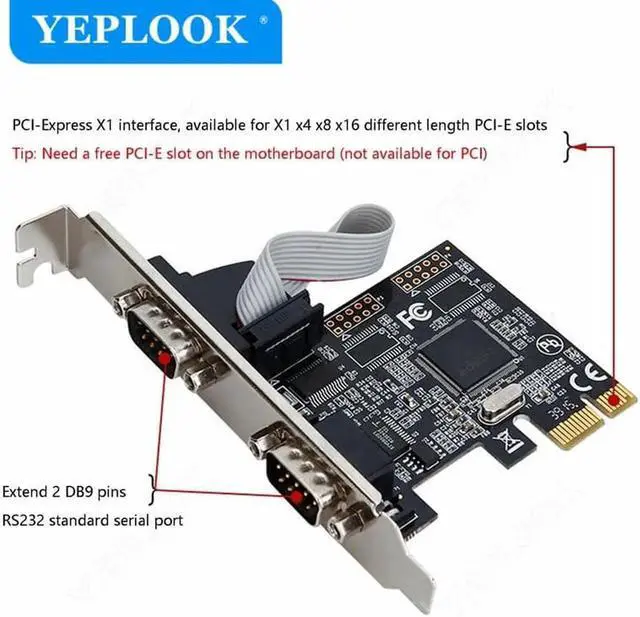

Interface: PCI Express 1x slot

Support OS: Windows®10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000

Windows Server® 2012, 2008 R2, 2003(32/64)

Mac OS® 10. x (Intel based, tested up to 10.9 )

Linux 2.4. x and later (Tested up to 3.5 )

Features

Supports RS232, RS485 & RS422 modes

Bi-directional speeds from 50 bps to 16 Mbps/Port

Full Serial modem control

Supports Hardware, Software flow control

5, 6, 7, 8 and 9-bit Serial format support

Even, Odd, None, space & Mark parity supported

Custom BAUD Rates supported with external clock or by programming internal PLL

On Chip 256 Byte depth FIF

Os in Transmit, Receive path of each Serial Port

Supports remote wake up and power management features

Serial Port transceiver shutdown support

Supports Slow IrDA on all Serial Ports IEEE1284

Package List: 1x PCIe to 2 Serial Port RS232 DB9, 1x CD Driver
