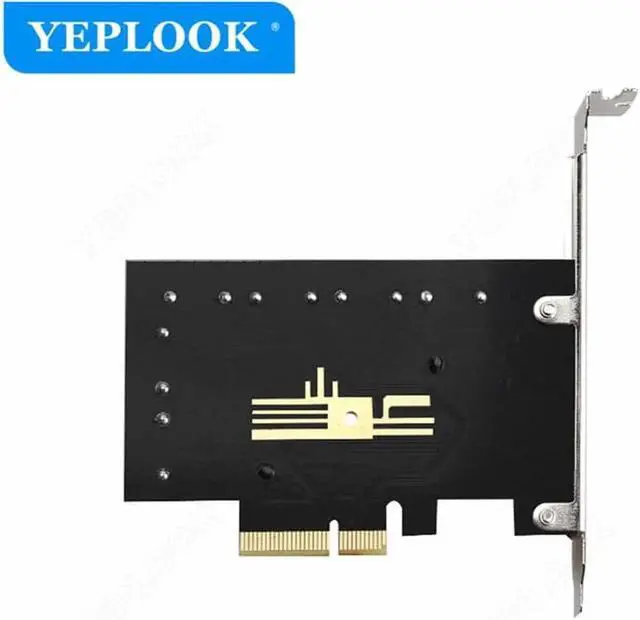

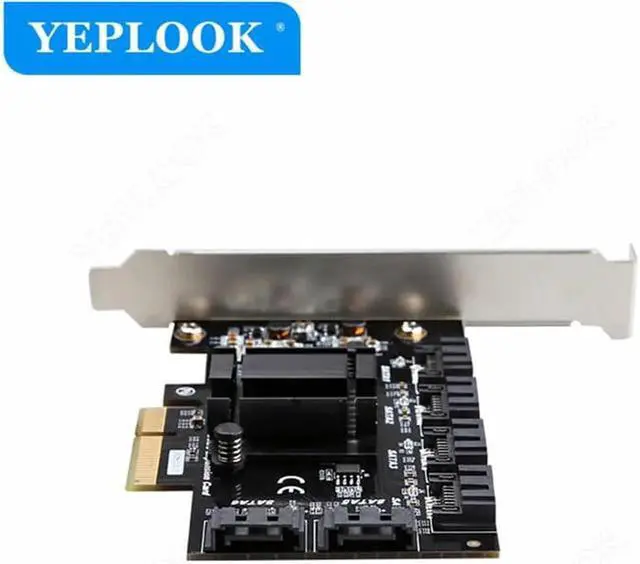

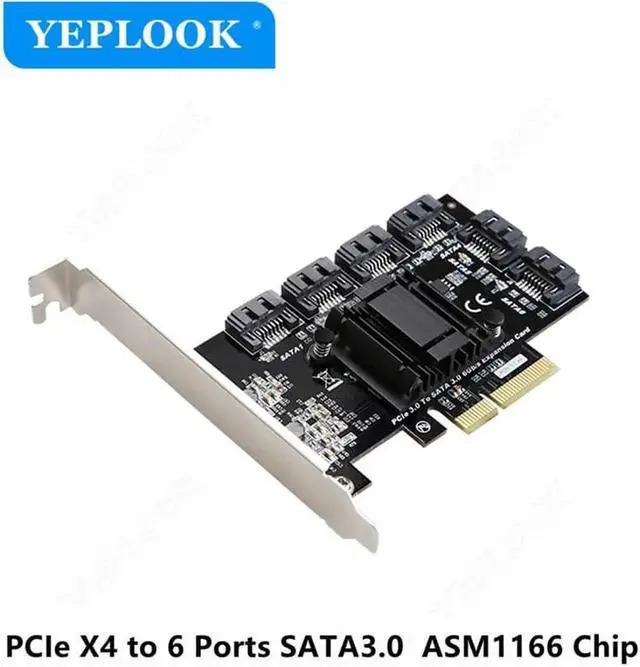

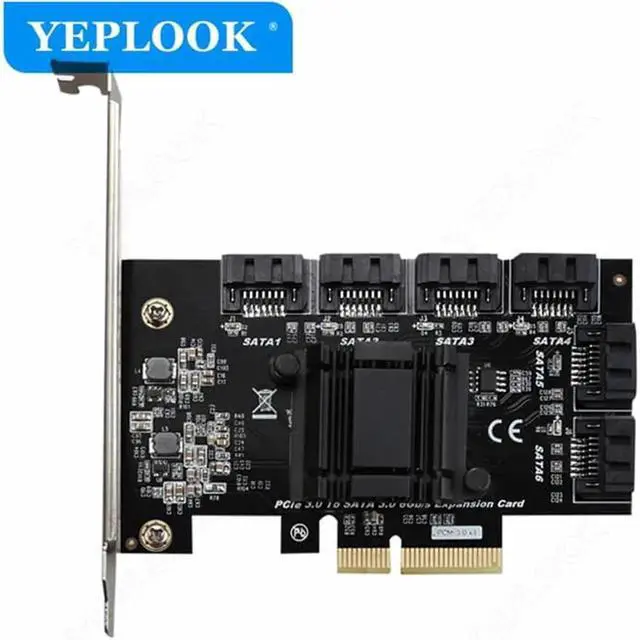

JAENFONG PCIe X4 to 6 SATA3.0 6Gbps PCI Express to SATA III Controller Adapter Expansion Card ASM1166 Chipset for Hard Drive HDD SSD

PCIe X4 to 6 SATA 3.0 6Gbps PCI Express to SATA III Controller Adapter Expansion Card ASM1166 Chipset for Hard Drive HDD SSD

This is a 6-port SATA III (6 Gbps) to PCI Express x2 Gen 3 Host Card. It adds 6 AHCI SATA III port to computer though a PCIe slot (x4), delivering multiple internal 6Gbps connections for high performance hard drives and Solid State Drives (SSDs).

With full support for SATA 3.0 hard drives and data transfer speeds of up to 6Gbps, the adapter card feature a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for internal SATA 600 MB/s storage needs.

Features

6 AHCI SATA III (6 Gbps) ports through PCI Express x4

Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II ( 1.5 / 3.0G bps) drives

Compliant with PCI Express 3.0 standards

Port Multiplier Command-based switching supported

Natively supported single chipset design

Support Native Command Queuing (NCQ)

Support SSC for both PCIe and SATA

LED Indicators: HDD Activity

Includes Low Profile/Half-Height installation bracket

Hardware

Bus Type: PCI Express x4

Card Type: Standard/Low Profile

Chipset ID: ASM1166

Interface: SATA

Ports: 6

Performance

Bootable: Yes

Hot Swap Capability: Yes

Port Multiplier: Yes

Type and Rate: SATA III (6 Gbps)

Connector (s)

Connector Type (s): 1 PCI Express x4 Male

Internal Ports: 4 SATA (7 pin, Data) Plug

Software

OS Compatibility: Windows® 7, 8. x, 10 Windows Server® 2008 R2, 2012, 2016, 2019 Linux 2.6. x to 4. x

Special Notes / Requirements

System and Cable Requirements: PCI Express enabled computer with an available PCI Express x4, x8 or x16 slot

Environmental

Humidity: 20~80% RH

Operating Temperature: 5°C to 50°C (41°F to 122°F)

Storage Temperature: -25°C to 70°C (-13°F to 158°F)

Physical Characteristics

Product Height: 120 mm

Product Length: 121 mm

Product Weight: 60 g

Product Width: 22 mm

What's in the Box

Included in Package

1 x PCIe SATA Controller Card

1 x Low Profile Bracket
