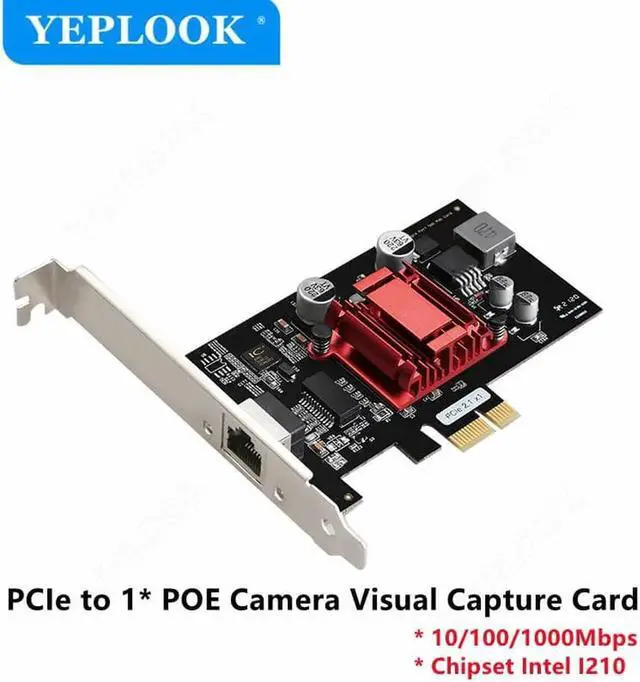

JAENFONG PCIe 1x to Single POE Port Camera Visual Capture Card 10/100/1000Mbps Gigabit Network Card Ethernet Converter Chipset Intel I210

PCIe 1x to Single POE Port Camera Visual Capture Card 10/100/1000Mbps Gigabit Network Card Ethernet Converter Chipset Intel I210

Description:

Model: DW-TXI053

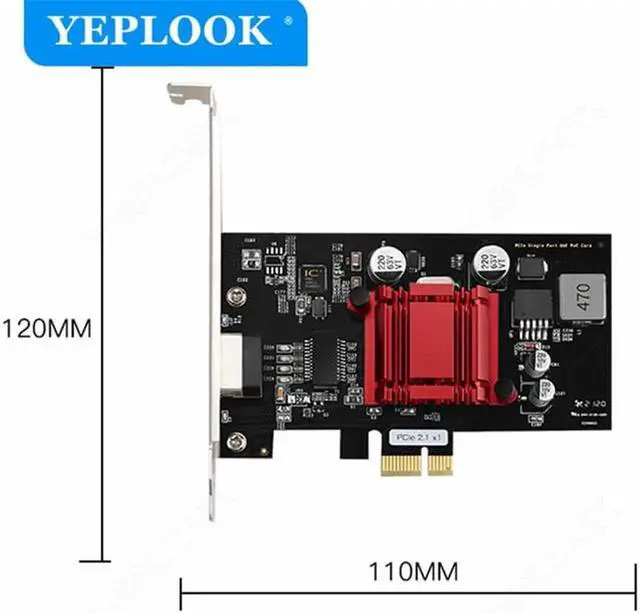

Size: 120X110mm

Transmission speed: 1000mbp/s bandwidth

Port description: single port maximum 30W 1000MB/S port

Support functions: PXE, SR-IOV, IPsec offloading, IPv4\IPv6, RSS supports jumbo data frames

Applicable system: Comply with Microsoft and Linux platform

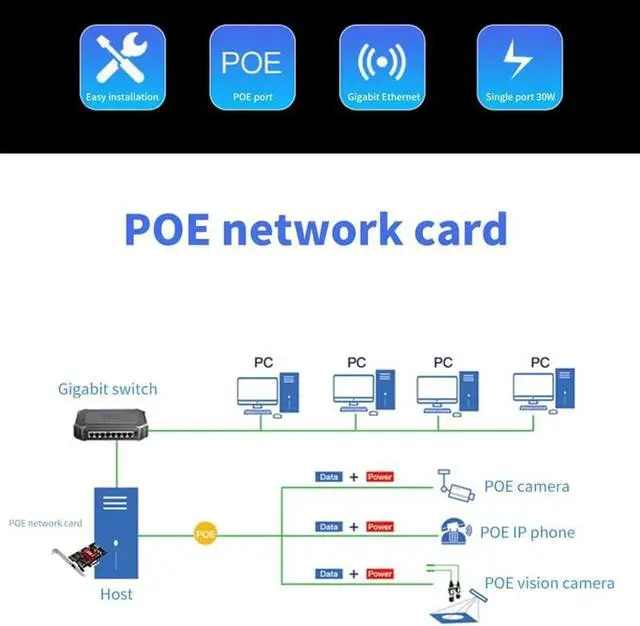

Applicable equipment: industrial computer, server, storage equipment, etc.

Feature:

1. Single port PoE output power consumption 30W;

2. Adapt to the required power output of external equipment: Class 0, Class 1, Class 2, Class 3;

3. The interface specially designed for industrial-grade cable access can lock cables and network ports more firmly, effectively solving the problem of unstable connection between network ports and cables in industrial sites and

4. The thickened heavy gold RJ45 connector is selected to ensure a more solid and reliable connection.

Packing list: 1 x PCIe 1x to Single POE Port Camera Visual Capture Card
