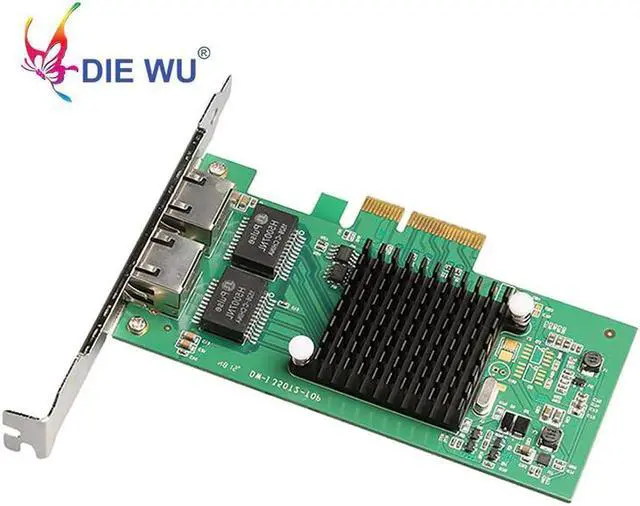

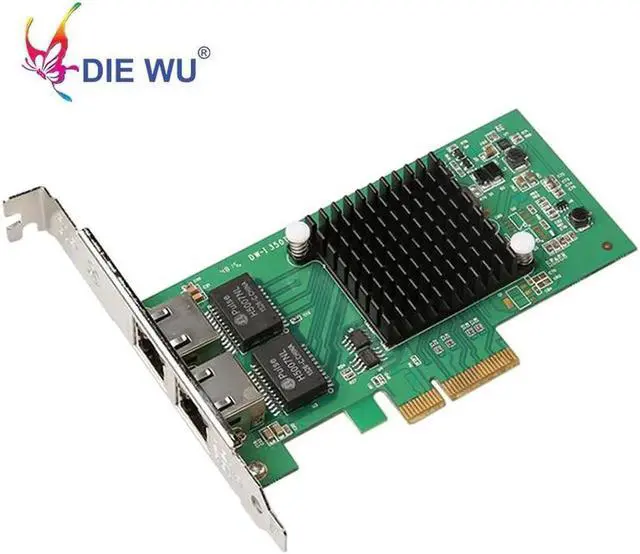

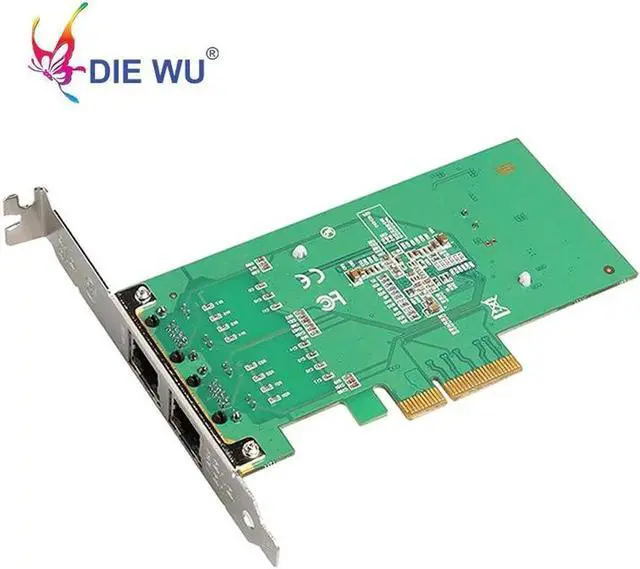

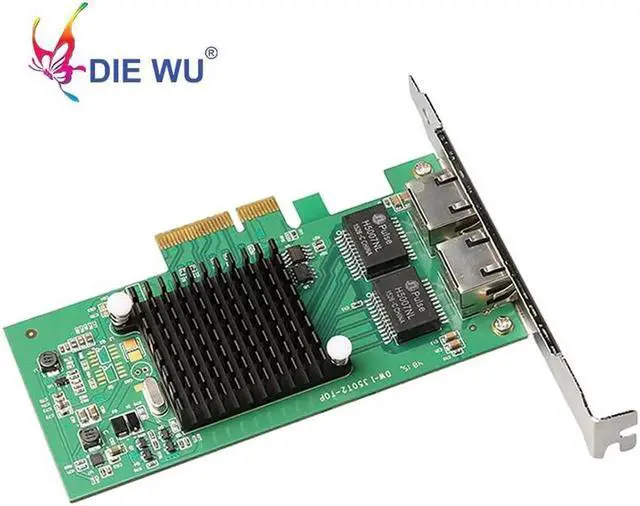

JAENFONG Dual RJ45 port Gigabit Server network card with Intel I350 PCIe 4X NIC TXA032

Dual RJ45 port Gigabit Server network card with Intel I350 PCIe 4X NIC TXA032

Model number

TXA032

Chipset

Intel I350 Ethernet Controller

Port number

2*RJ45

Standard

IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab

Data rate

10/100/1000Mbps

Interface

PCI express 4x

LED Indicator

4LED 10/100/1000Mb (Link/Act)

Dimension

125.4*68.5*17.3mm

Support OS

DOS, Novell ODI

Windows XP 32-bit(64-bit),Windows Server 2003 32-bit(64-bit),Windows Vista 32-bit(64-bit),Windows 7 32-bit(64-bit)

Windows 8 32-bit(64-bit),Windows 8.1 32-bit(64-bit)

Windows Server 2008 32-bit(64-bit),Windows Server 2008 R2 32-bit(64-bit)

Windows Server 2012,Windows Server 2012 R2

Linux 2.4 series kernel,2.6.x,3.x

FreeBSD 7.x or most of FreeBSD,UnixWare / Open Unix 8

Sun Solaris x86,VMware,Xen4

Environment

Operating Temperature: 0 ?-55 ?

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -0?-80?

Relative Humidity: 5%-90%(non-condensing)

Other Features

Halogen-free dual-port Gigabit Ethernet adapters with fiber interface options

Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption

Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports

Scalable iSCSI performance delivering cost-effective SAN connectivity

High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s

Reliable and proven Gigabit Ethernet technology from Intel Corporation

Intel® Ethernet Controller I350

With PCI Express* V2.1 (5 GT/s) Support

Low-Profile and Standard height full

Automatic cross-over detection function (MDI/MDI-X)

IEEE 1588 protocol and 802.1AS implementation
