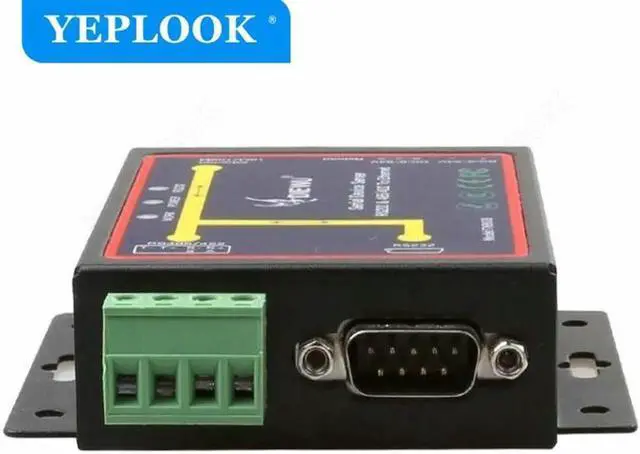

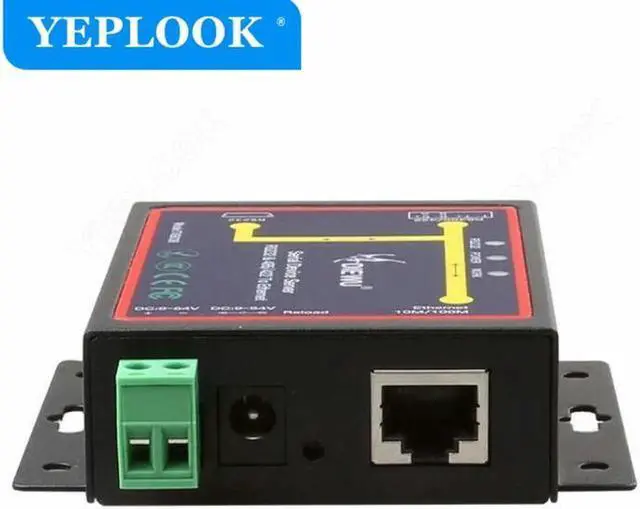

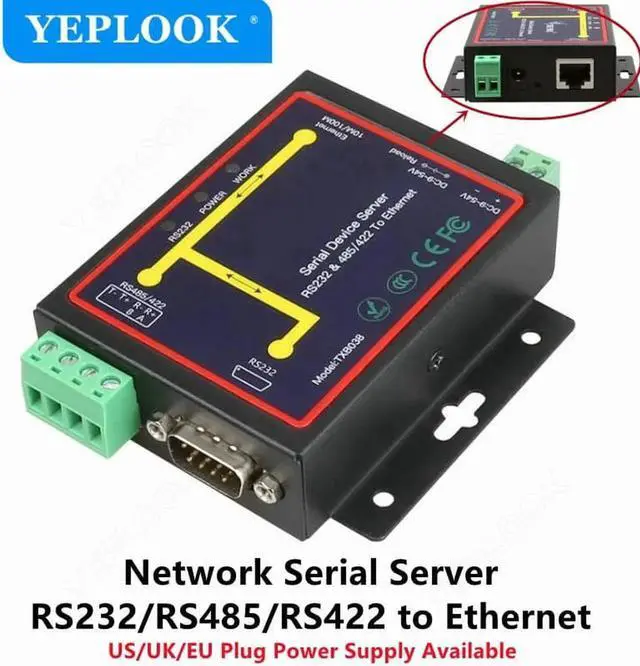

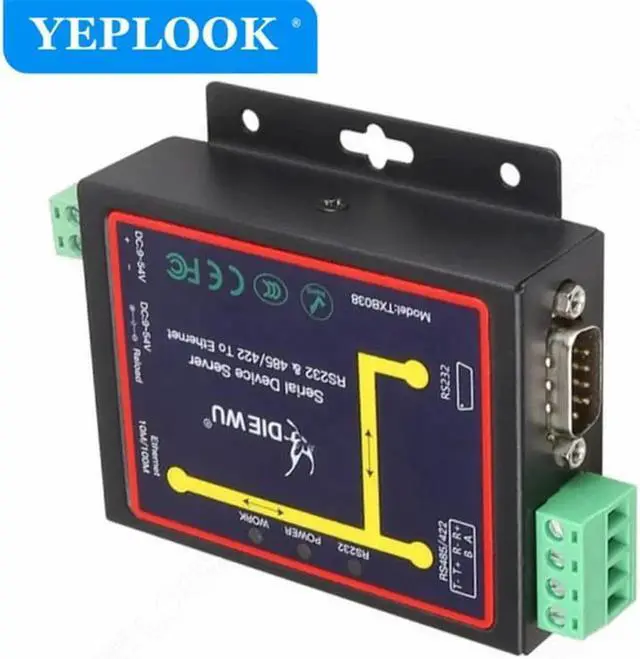

JAENFONG Ethernet Network Serial Port Converter RJ45 to RS232 RS485 RS422 Industrial Device Server Support TCP/RTU/UDP with Power Cable

Ethernet Network Serial Port Converter RJ45 to RS232 RS485 RS422 Industrial Device Server Support TCP/RTU/UDP with Power Supply Cable

Product specification:

Model number: DW-TXI038

Chipset: TXIC/TX210

Port number: 1 port 10/100M Auto MDI-MDIX RJ451 port RS485, 1 port RS232

Network media: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5 UTP

Interface: compatible with RS232 RS422 and RS485 standard

Data rate: 10/100M

Forwarding rate: 10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps

Baud rate: 300bps~230400bps

Operation modes: TCP Server, TCP Client, UDP

Power Input: DC5V

Power Consumption: Max 1.5W

LED Indicator: Link/Act, Power, TX/RX

Standard: IEEE 802.3IEEE 802.3 uIEEE 802.3 xIEEE 802.3 az

Support Systems: Windows XP/WIN7/WIN8/WIN10

Other Functions:

RS485 support full duplex and half duplex

Build load default key

Working Environment:

Operating Temperature: -10 -55

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -40-85

Relative Humidity: 5%-90%(non-condensing

Device Default Parameters:

ID: admin

Password: system

IP address: 192.168. 2.1

Operation mode: TCP server

Transmission Mode: RS232

Baud rate: 57600bps

UART parameters: 57600, 8, N, 1

Local port: TCP: 23, UDP: 21

Load default:

1. Power off the device

2. Hold the load default button

3. Power on the device, hold the button for 10 seconds, then release the default button

Package List: 1x RJ45 to RS232+RS485 converter, 1x Power adapter (The plug will meets your country standard)
