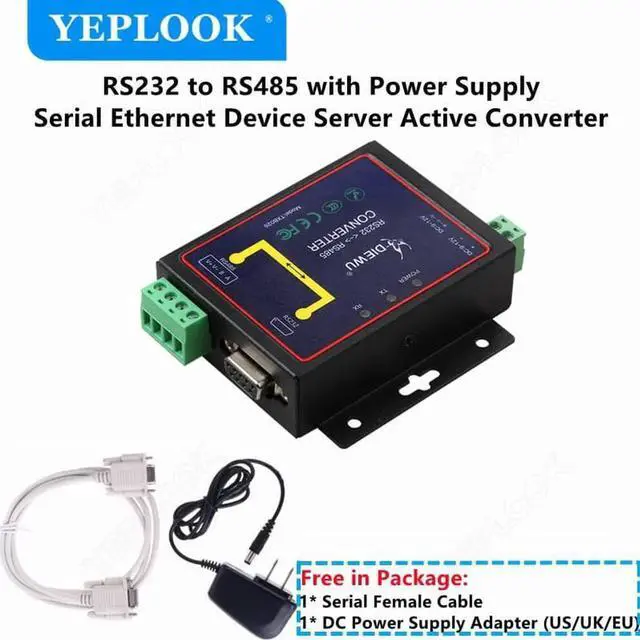

JAENFONG RS232 to RS485 Serial Network Ethernet Device Server Active Converter DB9 Female with Power Supply Cable for Industrial Use

RS232 to RS485 Serial Network Ethernet Device Server Active Converter DB9 Female with Power Supply Cable for Industrial Use

Product specification:

Model number: DW-TXI026

Chipset: ZT323+ZT485

Port number: 1* RS232 Female COM port, 1* RS485 port

Interface: compatible with RS232 and RS485 standard

Baud rate: 300bps~115200bps

Power Input: DC9V-12V

Power Consumption: Max 01.5W

LED Indicator: Power, TX/RX

Size: 94*86*25mm

Operation modes: TCP Server, TCP Client, UDP

Support Systems: Windows XP/WIN7/WIN8/WIN10

Working Environment:

Operating Temperature: -10 -55

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -40-85

Relative Humidity: 5%-90%(non-condensing

Device Default Parameters:

ID: admin

Password: system

IP address: 192.168. 2.1

Operation mode: TCP server

Transmission Mode: RS232

Baud rate: 57600bps

UART parameters: 57600, 8, N, 1

Local port: TCP: 23, UDP: 21

Load default:

1. Power off the device

2. Hold the load default button

3. Power on the device, hold the button for 10 seconds, then release the default button

Package List: 1x RS232 to RS485 Serial Network Ethernet Device Server Active Converter, 1x Power adapter (The plug will meets your country standard)
