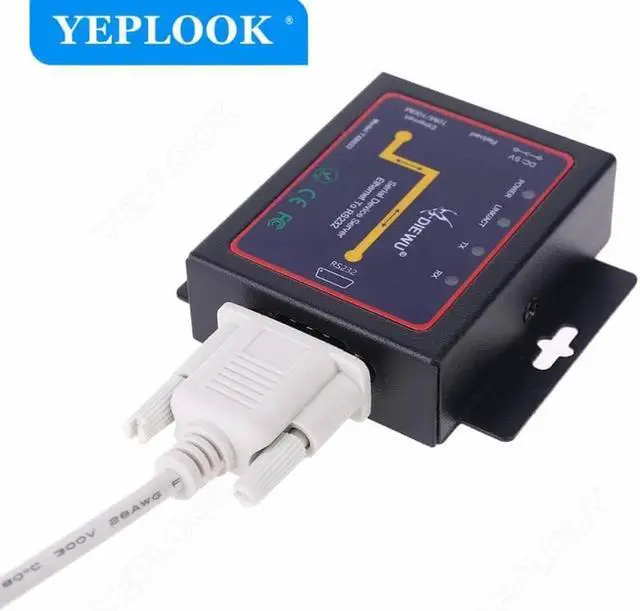

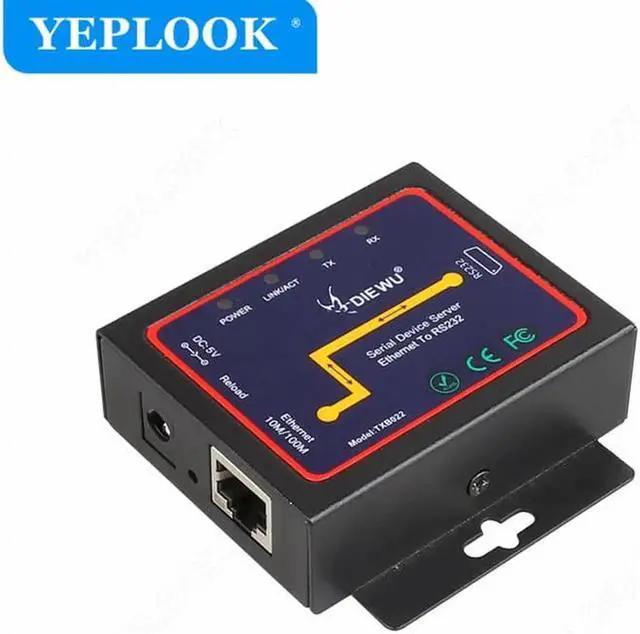

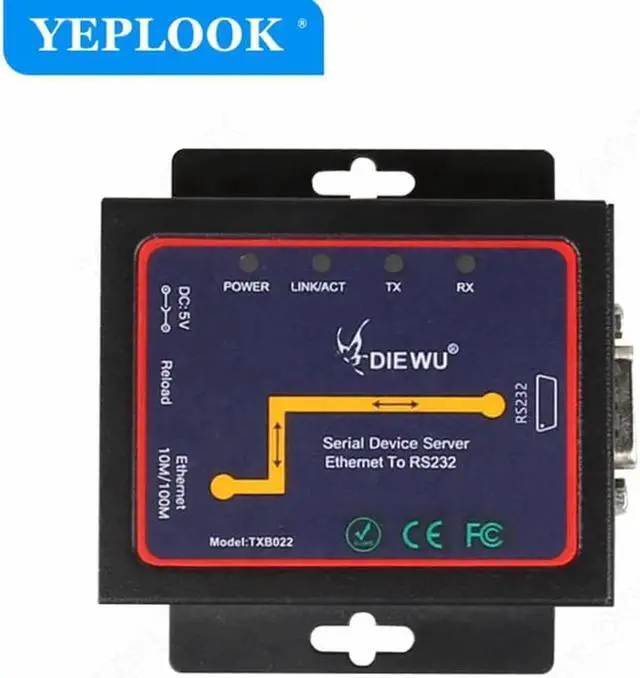

JAENFONG Ethernet RJ45 to RS232 DB9 Serial Port Device Server Converter Industrial Ethernet LAN Adapter Support TCP/RTU/UDP Modes

Ethernet RJ45 to RS232 DB9 Serial Port Device Server Converter Industrial Ethernet LAN Adapter Support TCP/RTU/UDP Modes with Free Serial Cable & Power Supply Cable

Product specification:

Model number: DW-TXI022

Chipset: TXIC/TX210T

Dimension: 78*72*23mm

Port number: 1 port 10/100M Auto MDI-MDIX RJ45, 1* RS232 Com port

Network media: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5 UTP

Interface: compatible with RS232 standard

Data rate: 10/100M

Forwarding rate: 10 Mbps/14, 880bps, 100Mbps/148, 800bps

Baud rate: 300bps~230400bps

Operation modes: TCP Server, TCP Client, UDP

Power Input: DC5V

Power Consumption: Max 1.5W

LED Indicator: Link/Act, Power, TX/RX

Standard: IEEE 802.3IEEE 802.3 uIEEE 802.3 xIEEE 802.3 az

Support Systems: Windows XP/WIN7/WIN8/WIN10

Other Functions: Build load default key

Working Environment:

Operating Temperature: -10 -55

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -40-85

Relative Humidity: 5%-90%(non-condensing

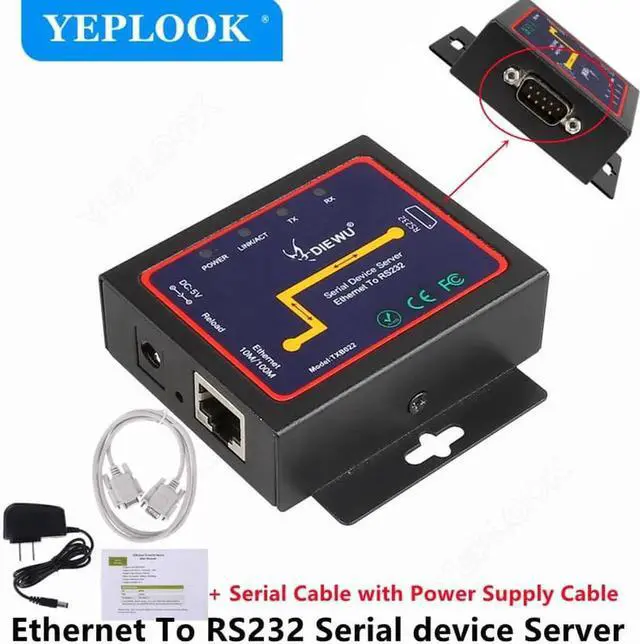

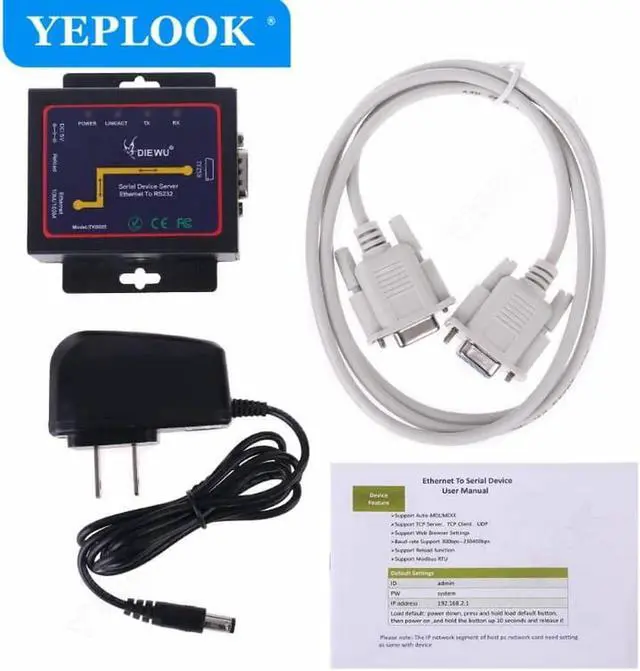

Package List: 1x Ethernet RJ45 to RS232 Converter, 1x Serial Cable, 1x Power adapter (The plug will meets your country standard)
