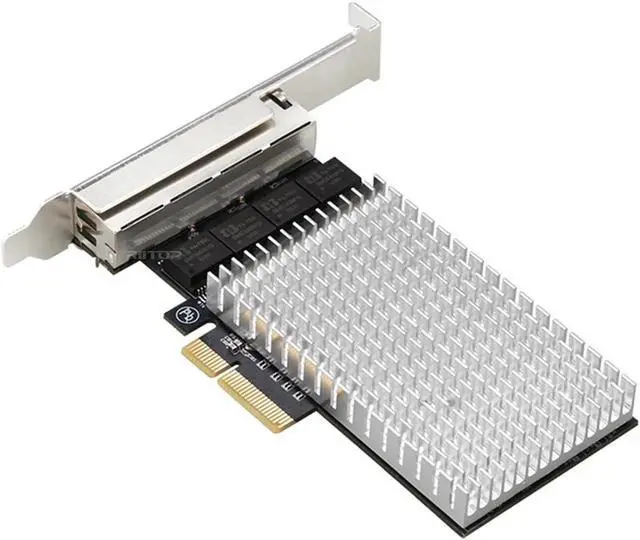

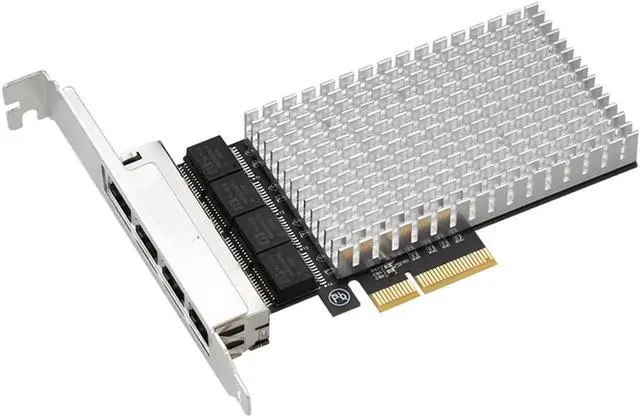

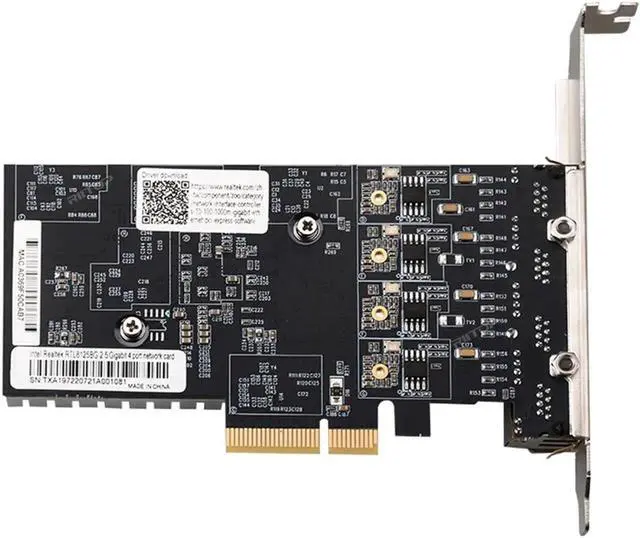

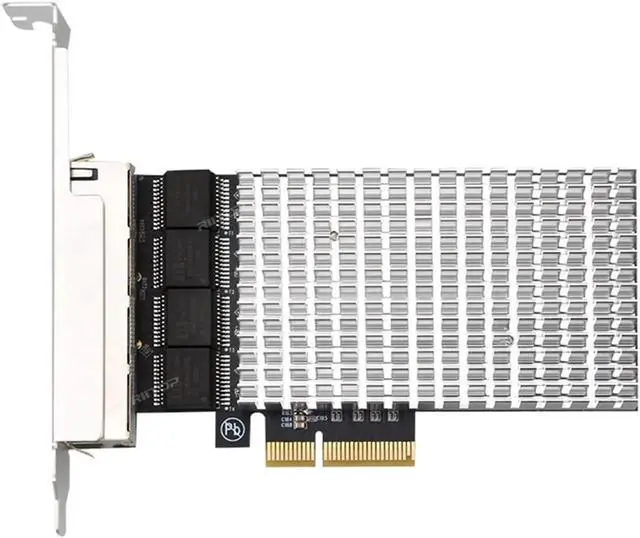

2.5Gbps PCI Express x4 Gigabit Ethernet Card with 4 Ports RJ45 LAN Controller, RIITOP PCIe x4 Quad 2.5G Network Adapter Card for Gaming Office, Windows Linux Compatible, 2500/1000/100Mbps

Feature:

Equipped with standard RJ45 network port, the data transmission rate is up to 10/100/1000M25Gbps.

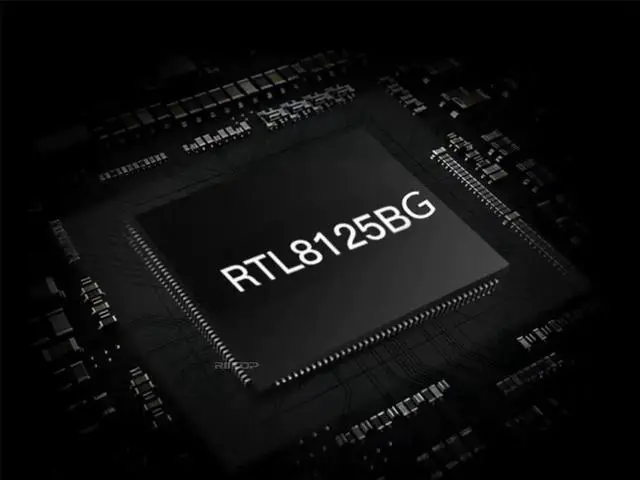

Using RTL8125BG chip, make the speed faster and more stable.

Adopt big heat sink to reduce network temperature, ensure stable operation of network card and longer service life.

Supports 4 high-performance 2.5 -Gigabit LAN ports.

Thickened electric gold has high hardness, more wear-resistant and better contact than ordinary electric gold, and can be plugged and unplugged for 10, 000 times.

Specification:

Item Type: Ethernet Network Card.

Main Chipset: For RTL8125B.

Data rate: 10/100/1000Mbps/ 2.5G bps.

Slot: PCI Express X4 slot.

Interface: 4 X 2.5G RJ45 Port.

Bus Type: PCI Express 2.1 (5 GT/s).

Bus Width: x4 lane PCI Express, operable in x8 and x16 slots.

Standard: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 ab, IEEE 802.3 az, IEEE 802.3 bz

Network media: 10Base-T, cat3 or above UTP, 1000Base-Tx, cat5 or above UTP

LED Indicator: 4 Act LED (Orange), 4 2.5G /1G Speed (Green).

Dimension: 120*140*22mm.

OS Compatibility: Windows 7, 8. x, 10, 11, Windows Server® 2008 R2, 2012, 2016, Linux 2.6. x to 5. x.

Hardware Requirements: PCI Express enabled computer with an available PCI Express, x4 slot Gen 2.0 or higher(x4, x8, x16).

Package Contents:

1x RIITOP 2.5G PCIe Ethernet Network Card 4 Ports.

1x Low Profile Bracket.
