[Upgrade] PCIe Ethernet Card Nic 10/100/1000Mbps Gigabit PCI-Express Network Card (WIN10/11 Driver-Free) RJ45 Network LAN Card Wake On LAN Adapter Internal Computer Desktop PC for Win/Linux/Mac 1 PCS

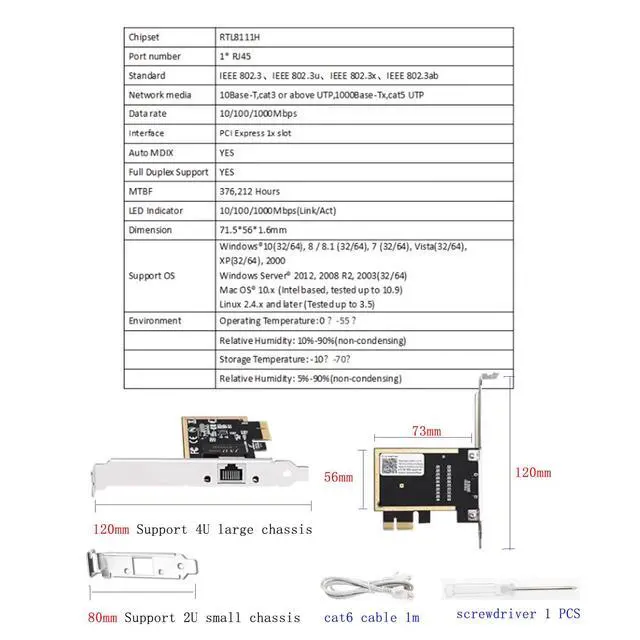

Specification:

Standard:

IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab

Network media:

10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP

Data rate:

10/100/1000Mbps

Support Protocol:

CSMA/CD

LED Indicator:

10/100/1000Mbps(Link/Act)

Support OS:

Windows11(32/64),10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000

Windows Server 2012, 2008 R2, 2003(32/64)

Mac OS 10.x (Intel based, tested up to 10.9)

Linux 2.4.x and later (Tested up to 3.5)

Features:

·Integrated 10/100/1000 transceiver

· Supports Giga Lite (500M) mode

· Auto-Negotiation with Next Page capability

· Supports PCI Express 1.1

· Supports pair swap/polarity/skew correction

· Crossover Detection & Auto-Correction

· Wake-on-LAN and remote wake-up support

· Built-in LDO regulator

· Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support

· Supports EMAC-393 ECMA ProxZzzy Standard for sleeping hosts

· Supports Full Duplex flow control (IEEE 802.3x)

· Supports jumbo frame to 9K bytes

· Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

· Supports IEEE 802.1P Layer 2 Priority Encoding

· Supports IEEE 802.1Q VLAN tagging

· Supports IEEE 802.3az-2010 (EEE)

· Embedded OTP memory

· Transmit/Receive on-chip buffer support

· Supports power down/link down power saving/PHY disable mode

· Built-in switching regulator

· Supports PCI MSI (Message Signaled Interrupt) and MSI-X

· Supports quad core Receive-Side Scaling (RSS)

· Supports Protocol Offload (ARP & NS)

· Supports Customized LEDs

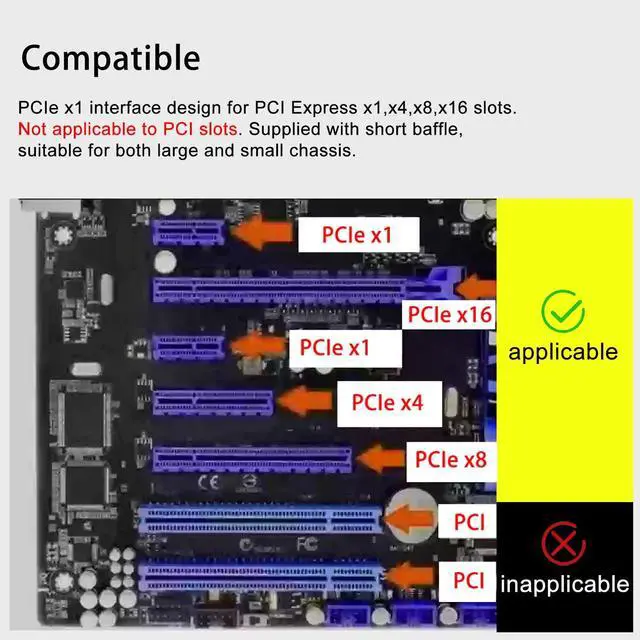

· Supports 1-Lane 2.5Gbps PCI Express Bus

· Supports hardware ECC (Error Correction Code) function

· Supports hardware CRC (Cyclic Redundancy Check) function

· 32-pin QFN Green package
