Description
This PCI Express controller with Base-T copper network interface provides a compact, integrated multi-Gigabit (up to 2.5G) -MDI (copper) standard IEEE 802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE connections (IEEE 802.3). , 802. 3u, 802.3ab) with one port.
The I225 Ethernet Controller is designed for use in any mobile, desktop, workstation, value server or industrial design with critical space conditions. The I225 can also support Intel vPro technology on certain Intel platforms and chipsets.
The I225 Ethernet Controller also supports the latest Time Sensitive Networking (TSN) features as well as the best power management and operating system support in its class.
Specification
Compliant with PCI Express Specification Revision 3.1 (5GT/s)
MDI (copper) standard IEEE802.3 Ethernet interface up to 2.5Gb/s
Equivalent to a 1GbE RJ45 connector (copper)
Compliant with MDI standard IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications (IEEE802.3bz, IEEE802.3ab, IEEE802.3u, and IEEE802.3)
IEEE802.3 Auto Negotiator
Supports IEEE802.3x and IEEE802.3z compliant flow control with software-controlled RX thresholds and TX pause frame
Automatic cross-over detection function (MDI/MDI-X)
IEEE 1588 protocol and 802.1AS implementation
Supports Time Sensitive Networking (TSN) capabilities
Supports IEEE802.3az Energy Efficient Ethernet (EEE), EEE is supported for 2500BASE-T, 1000BASE-T, and 100BASE-TX.
TCP/UDP, IPv4 checksum shift (Rx/Tx)
Segmentation shift during transmission (TSO) (IPv4, IPv6)
Support for packages up to 9.5KB jumbo frames
PXE support: Linux boot via PXE or BOOTP, Windows Deployment Services or UEFI
Drivers for Windows R10 32 or 64bit
Package Contents
1 x PCIe I225-V Single 2.5G Network Card
1 x user manual (English language not guaranteed)
1 x Low Profile Bracket

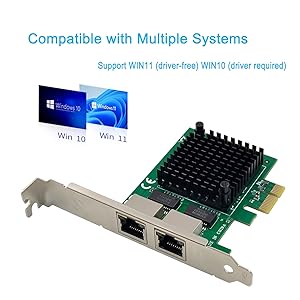

Compatible with Multipble Systems
Supports Win10/11,Linux Kernel 5.8/5.16.18,RHEL 8.1/8.3/8.6,Ubuntu* 22.04 LTS,FreeBBSD 13.0,VMware ESXi7.0/8.0,DPDK 20.05/22.07,OPENWRT/UNRAID/PVPV E. Supports PXE function
Trouble shooting Tips
Why can't my computer recognize the 2.5Gbps Ethernet PCIe card?
1. Check if the gold connectors of the card are clean, if not, clean the surface of the connector.
2. Make sure the PCI Express card is properly inserted into the PCI Express slot, if not, turn off the computer and plug it in again.
3. If this is still not the case, please change another PCI Express slot on your motherboard.
4. The motherboard itself could be defective. You can try another motherboard to test whether the 2.5Gbps Ethernet PCle Card works or not.
Why can't I use Gigabit Ethernet transfer speeds?
1. Please confirm that your Ethernet environment supports Gigabit structure.
2. Please use CAT 6 UTP/STP cable
