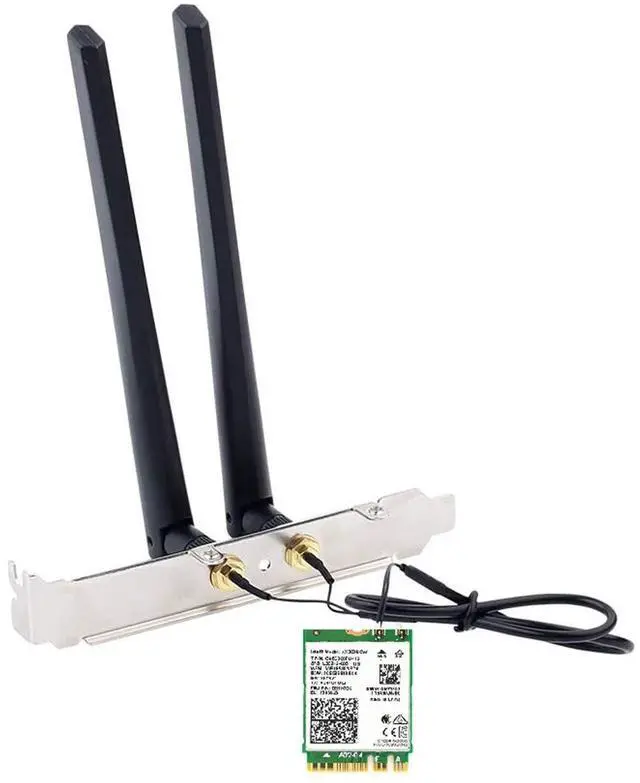

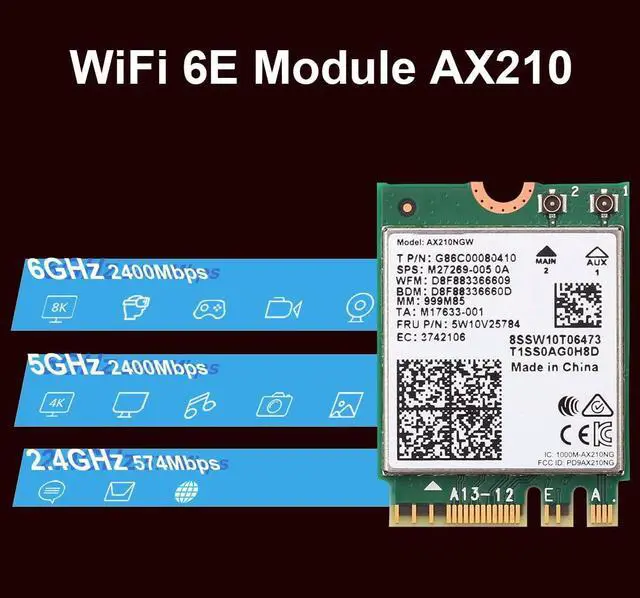

AX210NGW DTK WiFi Card WiFi 6E Supports 6GHz, 2230, 2x2 AX+BT 5.3+Tri-Band, Includes RF Cable (11 inch), 5dBi High Gain Antennas and Low-Profile Brackets

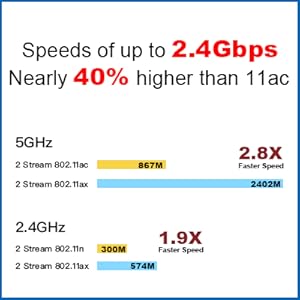

WiFi 6E AX210 Module UP To 2974Mbps with BT 5.3 for Laptop and Desktop

2nd Generation Wifi 6 Wireless With Extended Wifi 6E(6GHz Band Supported)

The Wifi6E AX210(Gig+)adapter is designed to support upcoming Wifi 6E technology and related Wifi Alliance Wifi E certification. The product supports dual-stream wifi in the 2.4GHz, 5GHz and 6GHz bands, and includes improved TcP throughput- exceeding 2Gbps—-and future wifi 6R2 features, including UL MU-MIMO that improves UL network capacity in dense environments as well as BT 5.3 support. These new features maximize the benefits of wifi6, including Gigabit speed, ultra-low latencies, and enhanced reliability benefits across new radio frequencies exclusive to wifi6E devices, and delver a significant improvement in user experience in dense deployment. Combined with Intel Core processors and exceptional Intel wireless innovations, the wifi 6E AX210 module can dramatically improve your connected experience at home, work, or on the go.

BT 5.3

BT 5 provides 4x range over BT 4.2 using the same Tx power, enabling coverage throughout the home. BT 5 also double data rates speed for faster transmissions thereby reducing the overall power consumption.

Additionally, BT 5 adds new enhanced data broadcasting enabling seamless services such as location-based services and simpler pairing for BT devices.

Compatibility

This AX210 module full supports the latest Microsoft Windows 10/11 64bit OS.

Support the new 802.11ax standard with its unique features such as OFDMA, 1024QAM, Target Wake Time, 160MHz channels and spatial reuse. Compatible with all the wireless routers and any 11ac or 11n devices.

Compatible with all Intel base CPU, some AMD CPU may have comaptibility issue.

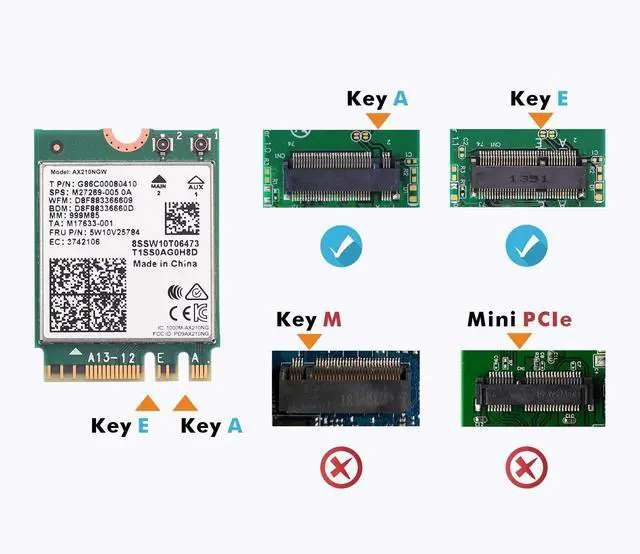

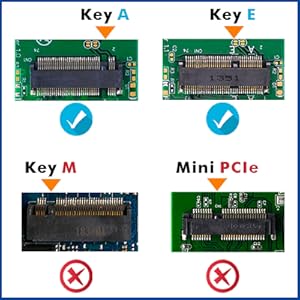

Standard NGFF M.2 Key A or E Slot

• Compatible with any Laptop or Desktop with standard NGFF M.2 Key A or Key E slot. All the Laptops with AC9260, AC8265,AC7265 wifi module can be replaced with this AX210 module.
• Not Compatible with NGFF CNVIO or CNVIO2 slot. Some laptops use AC9560or AC9642 with NGFFCNVIO, can't be replaced.
• Not Compatible with Mini PCIe slot. Some old laptopsuse AC7260 with Mini PCle connector, can't be replaced.
• Some Laptop‘s hardares are locked by default, need to update the BIOS, it is better to do it under the help of Laptop manufacture.

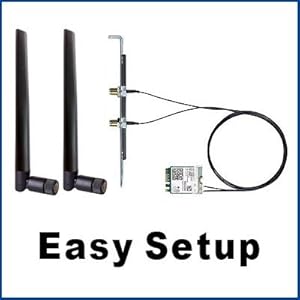

Easy Setup

It is very easy to replace the wifi module:

1. Download the driver by scanning the QR code

2. Power off the Desktop, unscrew the screws holding in the bottom of the case, find the old M.2 wifi card, replace the new card.

3. Install the driver, enjoy the new light fast Internet.

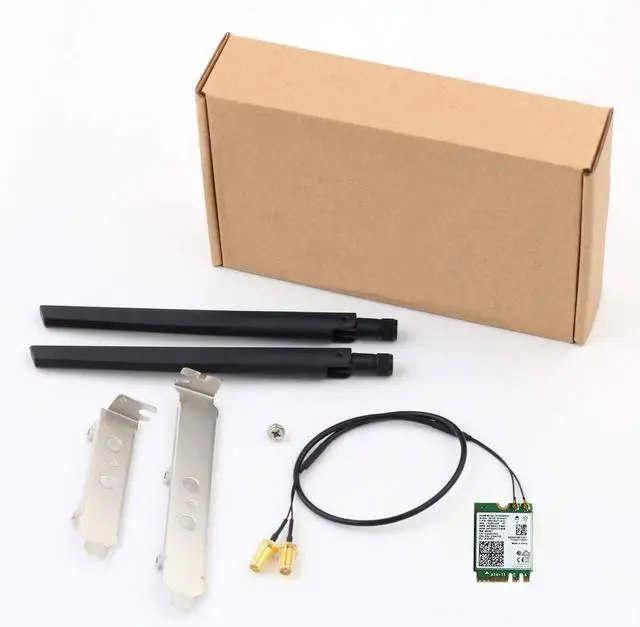

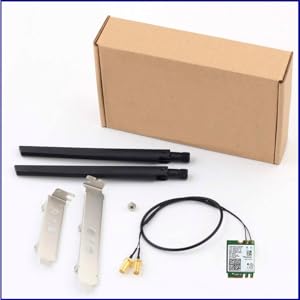

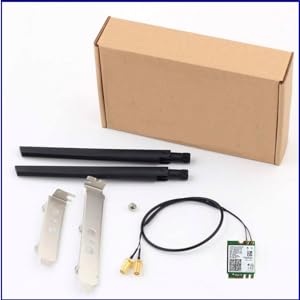

Packing list

• AX210

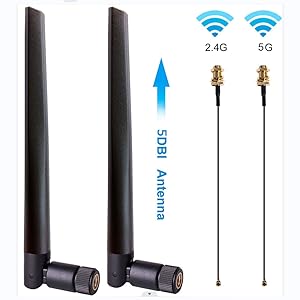

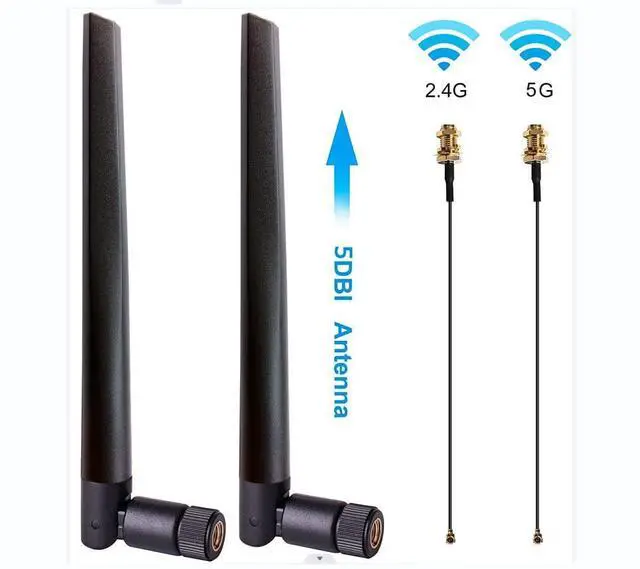

• 2 x 5dbi high gain antenna
• 30cm MHF4 to SMA
• 1x Low Profile Bracket
• 1x Full Profile Bracket
• 1x Quick Installation Guide
• 1x Screwdriver
• 1x Screw
