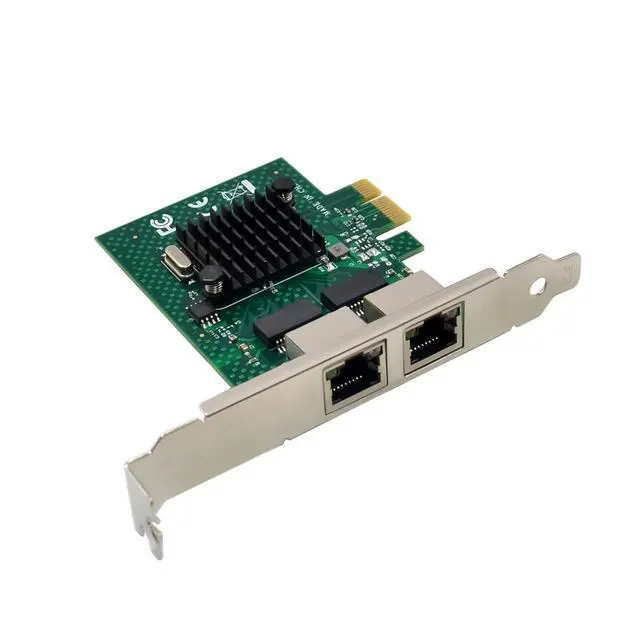

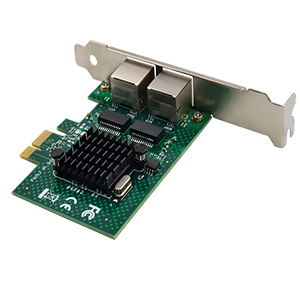

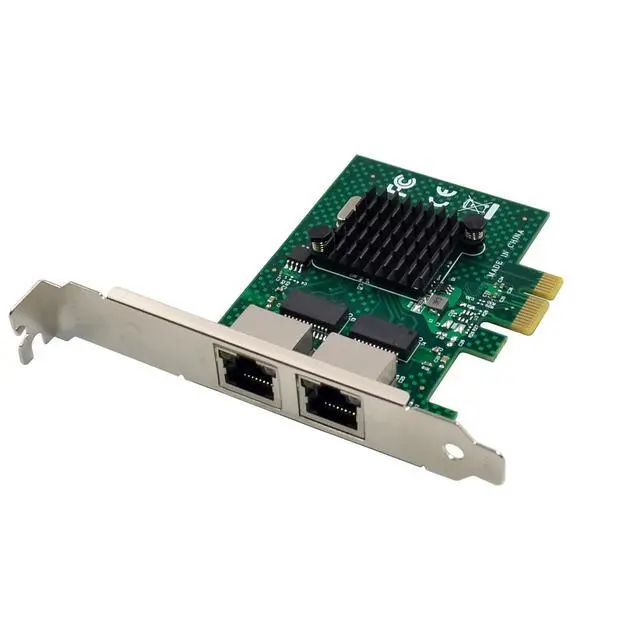

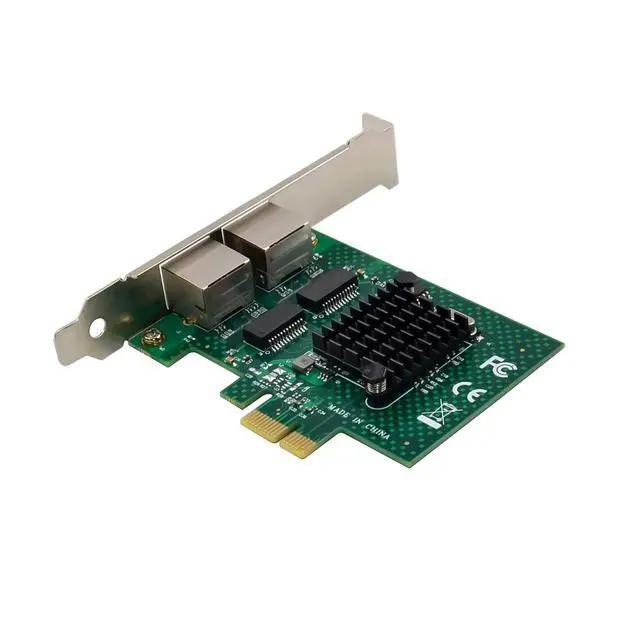

Dual-Port PCIe Ethernet Server Adapter
The Ethernet Card is a dual-port 10/100/1000 Mb/s x1 PCI Express (PCIe) Ethernet adapter that supports the IEEE 802.3ab standard over Category 5 twisted-pair cable. The adapter card supports offload technologies including Large Send, TCP segmentation, and TCP/UDP/IP checksum, and receive-side scaling (RSS) that deliver optimal network throughput, lower host processor utilization and as a result improve system overall performance. The adapter card comes in small form factor that is suitable for both low-profile and standard chassis.
Compatible with OS below:
PowerEdge R230 ,PowerEdge R330 ,PowerEdge R230XL ,PowerEdge R7425, PowerEdge R740XD ,PowerEdge R540, PowerEdge R730xd XL ,PowerEdge R440 ,PowerEdge R320, PowerEdge R630, PowerEdge R630XL, PowerEdge C6320P ,PowerEdge R7415 ,PowerEdge VRTX PowerEdge FC630, PowerEdge R6415, PowerEdge R730, PowerEdge R740 ,PowerEdge R730XL, PowerEdge R330XL ,PowerEdge R640, PowerEdge FC430, PowerEdge FC640 ,PowerEdge R520
Features
MAC controller—BCM5720-2P
Connector—RJ-45
? Dual-port Gigabit Ethernet Server adapter for rack and tower servers
IEEE 802.3ab 10/100/1000 Mb/s Gigabit Ethernet compliant

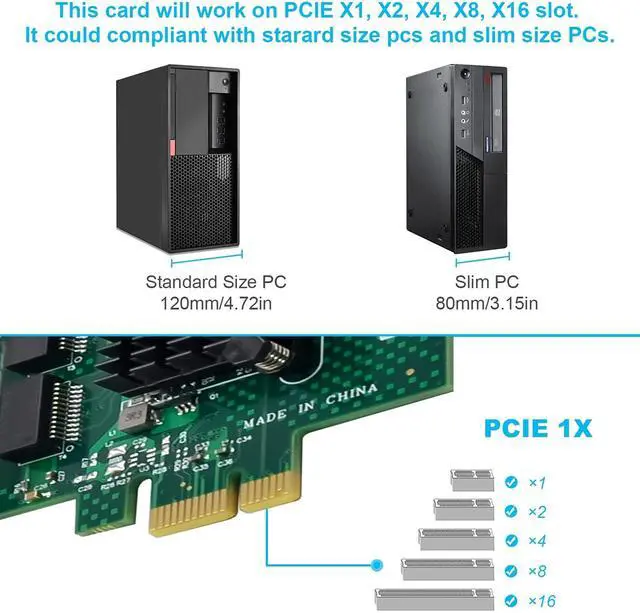

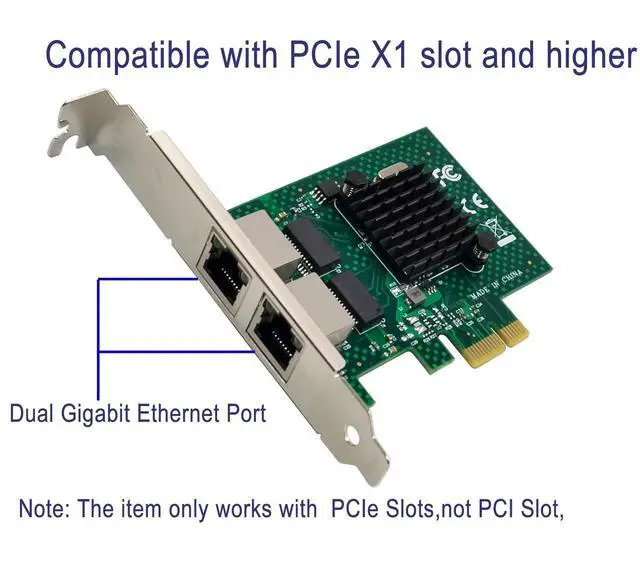

x1 PCI Express (PCIe) v2.0 (5 GT/s) support
Energy Efficient Ethernet (EEE)
I/O Virtualization supported with 17 receive queues and 16 transmit queues per port
Full line-rate performance across all ports
Broad OS and hypervisor support
PXE support
Support for VMware NetQueue and Microsoft VMQ
Link aggregation and automatic load-balancing
Wake-on-LAN support
MSI and MSI-X support
IPv4 and IPv6 offloads
TCP, UDP, and IP checksum offloads
Large Send Offload (LSO)
TCP Segmentation Offload (TSO)
ACPI v2.0
SMBus 2.0
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3i 10BASE-T
IEEE 802.1q—VLAN tagging support
IEEE 802.3x—Flow control
IEEE 802.3az—EEE
Receive Side Scaling (RSS)
Transmit Side Scaling (TSS)
VLAN support with VLAN tagging
Jumbo frame support for frames larger than 1500 Bytes
Broadcom Advanced Control Suite (BACS)
management application
iSCSI remote boot support

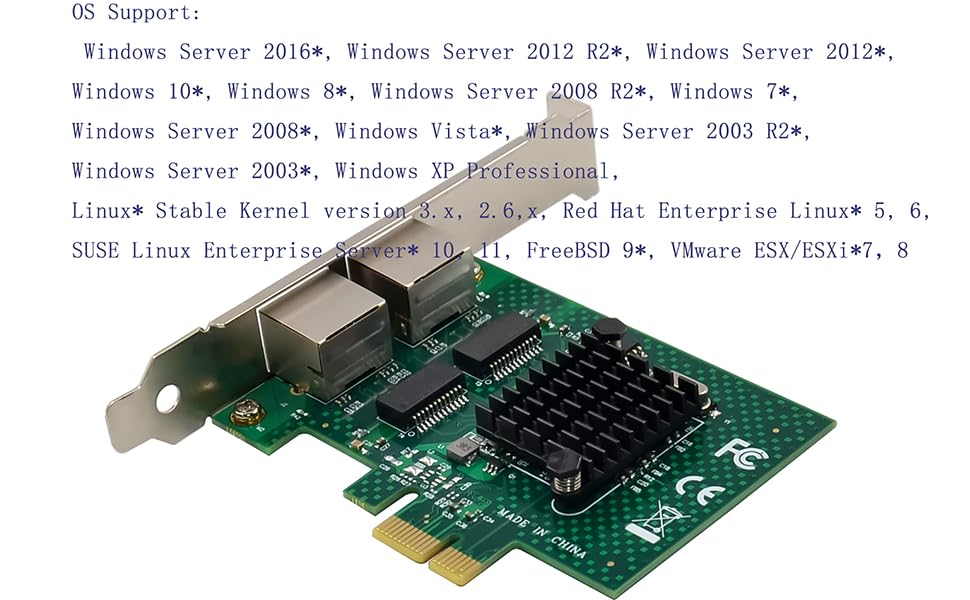

OS Support
Microsoft—Windows Server 2008, 2008 R2, and 2012, all editions
Linux – Red Hat Enterprise Linux (RHEL) 5.9/5.8, 6.4/6.3
– Novell SUSE Linux Enterprise Server (SLES) 10 SP4/SP3, 11 U3/U2
VMware—vSphere 5.x
Citrix—XenServer 6.1
Package contents
1xPCIe 1G LAN Card

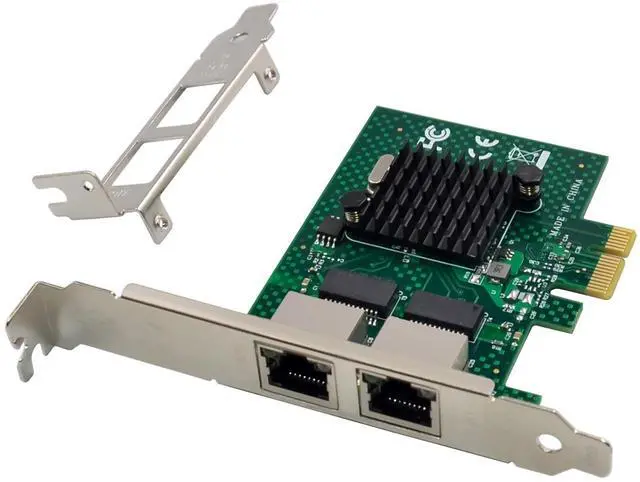

1x Low profile Bracket
1xManual
1xCD Driver
