Convenient system upgrades through PCIe
The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.
High-performance serial communication
The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.
Applications
Add two high performance RS232 serial ports (DB9) to your low or full-profile computer
Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers).
POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales).
Consumer (modems, PDAs, digital cameras, printers).
Security (UPS control, access key panels, video cameras, card readers, modems).
Casino (video lottery terminals, slot machines).
Environmental Control (lighting, temperature, clocks).
Healthcare (patient monitoring equipment, nurses' stations, modems).
Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader).
Hospitality/Restaurant (credit card/debit card reader, serial printers).
ISDN Networking.
StarTech Packaging
Look for StarTech Branded Packaging to ensure you are getting a genuine StarTech product.

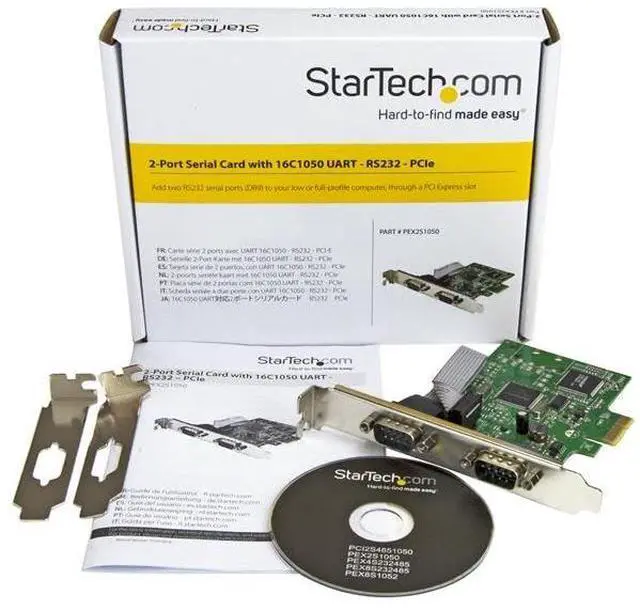

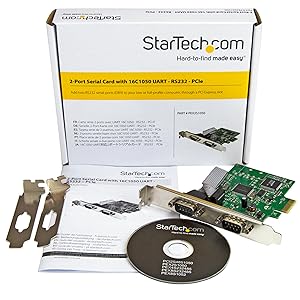

What's in the Box
1 - Serial Card.
2 - Low-Profile Brackets.
1 - Driver CD.
1 - Quick-Start Guide.
Features
- Dual-channel 16C1050 UART for full compatibility with 16C1050 devices
- Maximum data transfer rate of 460Kbps
- Compliant with PCI Express 1.0a specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus
- 256-Byte deep FIFO per transmitter and receiver
- In-band software flow control using programmable Xon/Xoff in both directions
- Out-of-band hardware flow control using RTS / CTS
- Standard profile bracket installed, optional dual low-profile brackets included
Convenient system upgrades through PCIe
The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.
High-performance serial communication
The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.
Applications
Add two high performance RS232 serial ports (DB9) to your low or full-profile computer
Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers).
POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales).
Consumer (modems, PDAs, digital cameras, printers).
Security (UPS control, access key panels, video cameras, card readers, modems).
Casino (video lottery terminals, slot machines).
Environmental Control (lighting, temperature, clocks).
Healthcare (patient monitoring equipment, nurses' stations, modems).
Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader).
Hospitality/Restaurant (credit card/debit card reader, serial printers).
ISDN Networking.
StarTech Packaging
Look for StarTech Branded Packaging to ensure you are getting a genuine StarTech product.
What's in the Box
1 - Serial Card.
2 - Low-Profile Brackets.
1 - Driver CD.
1 - Quick-Start Guide.
Features
- Dual-channel 16C1050 UART for full compatibility with 16C1050 devices
- Maximum data transfer rate of 460Kbps
- Compliant with PCI Express 1.0a specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus
- 256-Byte deep FIFO per transmitter and receiver
- In-band software flow control using programmable Xon/Xoff in both directions
- Out-of-band hardware flow control using RTS / CTS
- Standard profile bracket installed, optional dual low-profile brackets included
